Digital Hot Plates

Digital Hot Plates

Description

Designed to meet laboratory daily heating requirements. Digital temperature controller and aluminium heating surface.

  • Large heating surface. Fast and uniform heating.
  • Microprocessor chip for precise temperature control
  • Constant heating and no electromagnetic interference
  • Special high resistant coatings prevent corrosion and guarantee long life
  • Compact design combined with an elegant look

Label/Normering

Technische specificaties

Technical Specifications

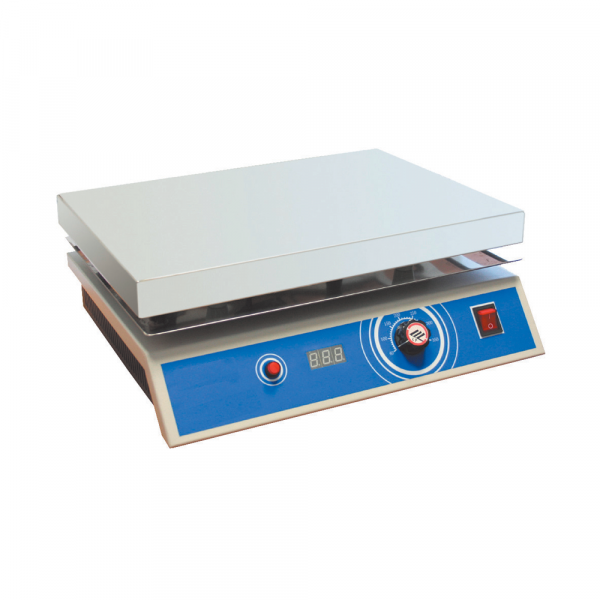

D1401/E, digital temperature controller and aluminium heating surface.

  • Temperature range: ambient to 350°C
  • Temperature stability: ±5°C
  • Heating area: 300x400 mm
  • Heating power: 2000 W
  • Dimensions: 400x300x150 mm
  • Weight approx.: 18 kg

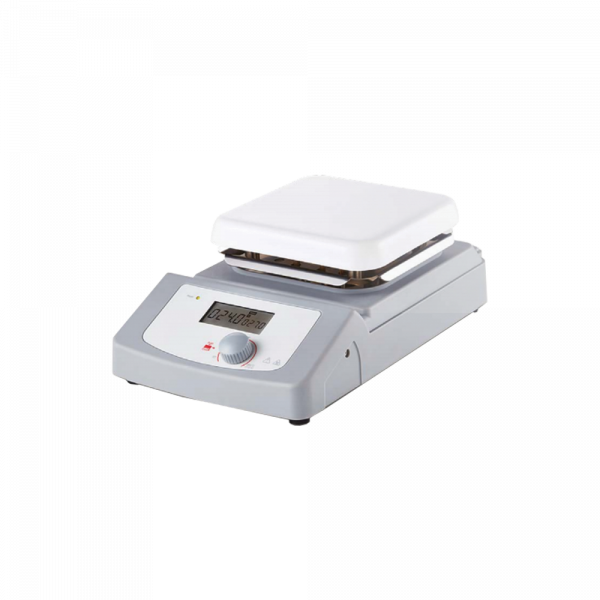

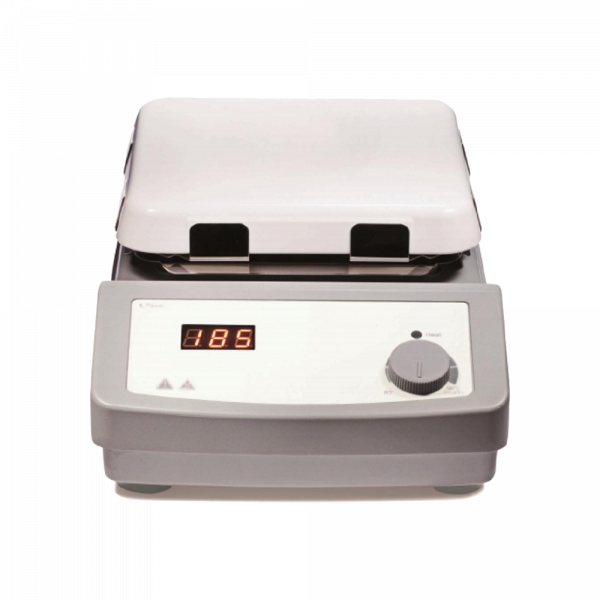

And D1401/F with glass ceramic plate and LED display.

  • Temperature range: ambient to 580°C
  • Temperature stability: ±5°C
  • Heating area: 184x184 mm
  • Heating power: 1010 W
  • Dimensions: 215x360x112 mm
  • Weight approx.: 5 kg

Order nummers

10-D1401/E: Rectangular hot plate 300 x 400mm with digital display. 2000W 230V/50-60Hz/1ph 10-D1401/F:

Digital hot plate, 184x184 mm, with glass ceramic plate and LED display. Maximum temperature 580°C
200-240 V, 50-60 Hz, 1 ph

Accessoires & toebehoren



: 10-D1401/FZ:

Digital hot plate, 184x184 mm, with glass ceramic plate and LED display. Maximum temperature 580°C
100-120V, 50-60 Hz, 1 ph.

10-D1401/G:

Rectangular hot plate 140 x 140mm with digital display. 500W. Maximum temperature 350°C. 200-240V/50-60Hz/1ph
