Digital Instrumentation
Description

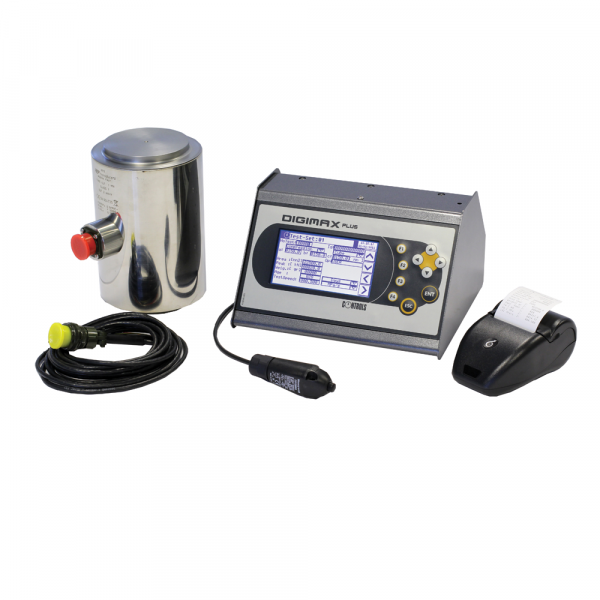

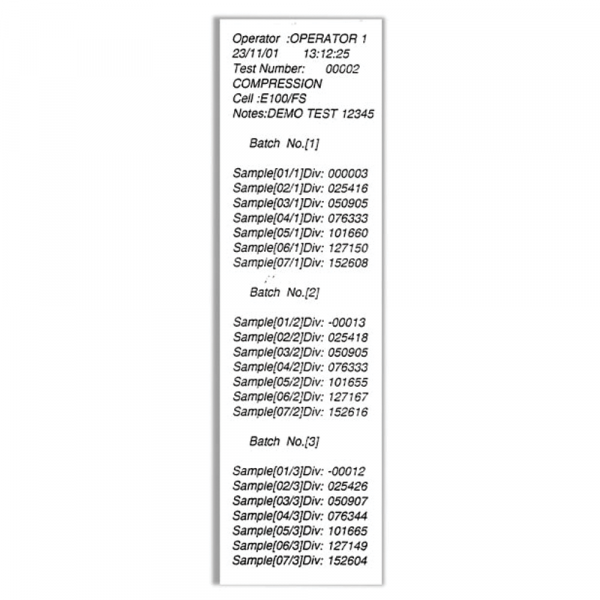

The system, connected to any strain gauge load cell, provides data for the force verification of the testing machine. Data can be printed by a standard serial printer as, for example, our model 82-P0172 with serial cable 82-P0172/1 (see accessories), or unloaded to PC for processing and, by the relevant MS Excel template 82-P0804/E4 (see accessories), for producing the test certificate conforming to the standard in use as, for example, EN 12390-4 or ASTM C39 for concrete compression testers.

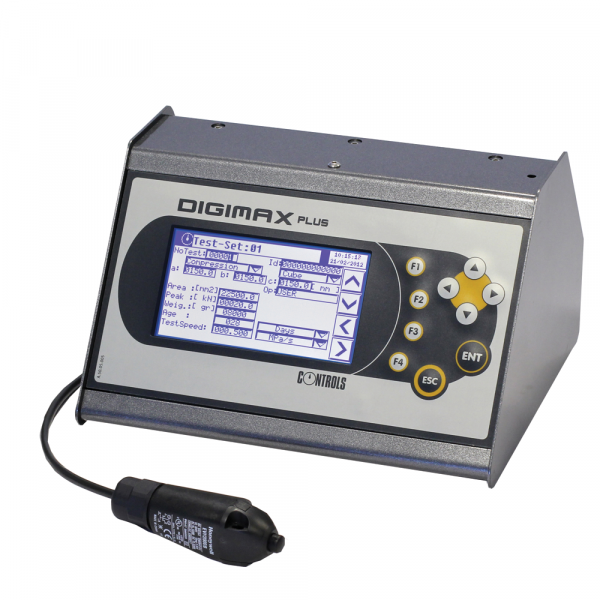

The Digimax Plus, connected to one of our load cells 82-E0100/30 to 82-E01000/500 can be supplied complete with Official or Traceable calibration certificate. See ordering information. Each cell has to be calibrated separately and the certificate refer to one cell only
- High resolution: 256,000 points ( less than 0.05% of full scale)

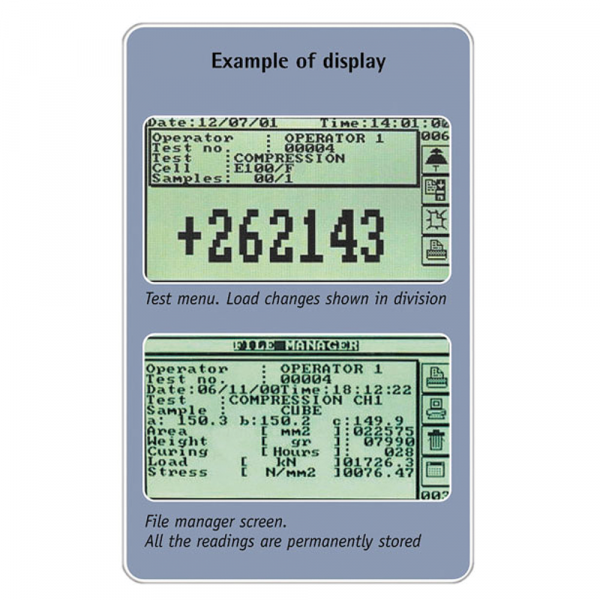

- Large graphic display: 240x128 pixel
- Language selection: English, French, Spanish, German and Italian
- Large permanent memory: up to 960 readings
- Two RS 232 serial ports for PC and printer
- Remote control

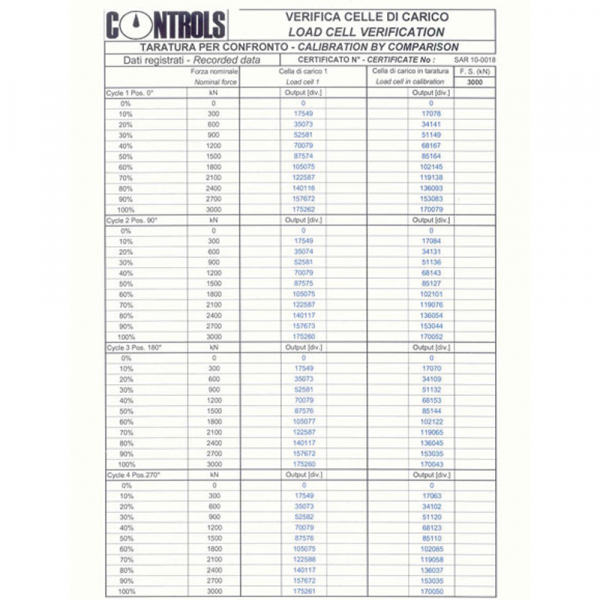

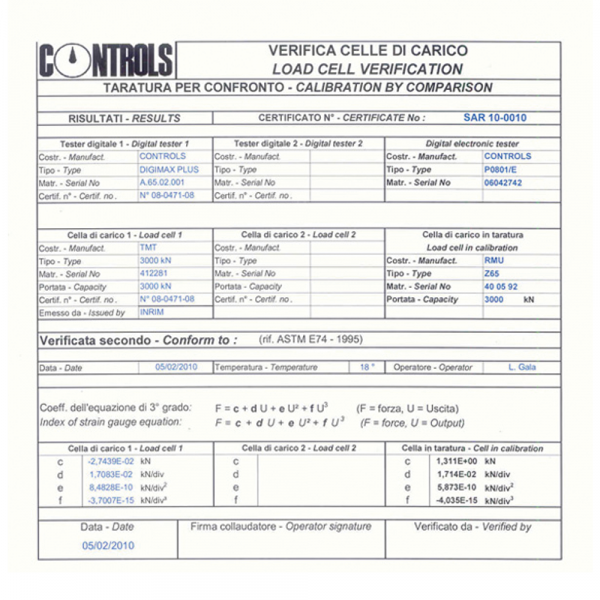

- MS EXCEL Template available for producing calibration certificates conforming to EN/ASTM Standards
Label/Normering
EN 12390-4‰ASTM C39‰ASTM E74‰EN ISO 376
Technische specificaties
Technical Specifications
- Microprocessor based
- Clock calendar chip
- Large permanent memory to store data and test results
- Two RS 232 serial port for PC and printer
- Analogic channel for strain gauge load cells/transducers, 256,000 points resolution
- Graphic display 240x128 pixel
- Dimensions: 250x220x150 mm
- Weight approx.: 2 kg
Order nummers
Accessoires & toebehoren

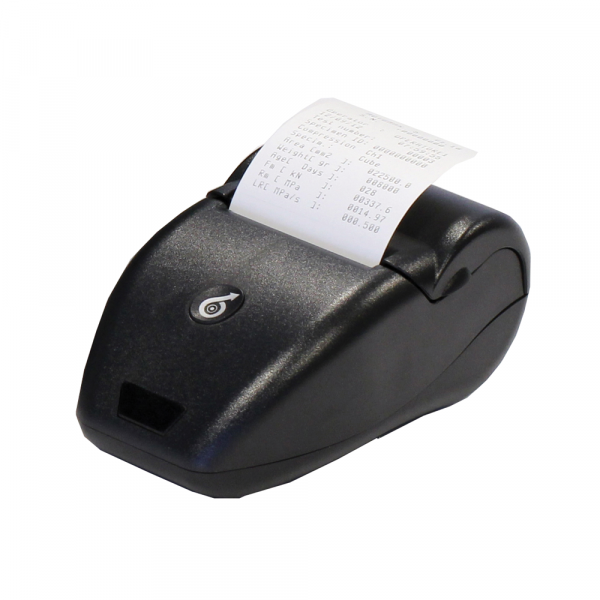

82-P0172/M: 24 columns serial printer. 110-230V/50-60Hz/1ph 82-Q0800/3: Serial cable RS232 and RS232-USB adapter for PC connection 82-E0100/ACC4: Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >1000 to 5000 kN. 82-E0100/TRC: Traceable calibration certificate for the load cell connected to suitable digital tester for force verification. Compatible with 5 kN up to 5000 kN capacity load cells. 82-P0804/E4: Force calibration verification MS Excel Spread sheet.: 82-E0100/ACC2: Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >10 to 600 kN 82-E0100/ACC3: Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >600 to 1000 kN. 82-P0800/C: Hard plastic carrying case for 82-P0801/E tester and 82-P0171 serial printer 82-P0172/1: Serial cable for printer connection. 82-E0100/ACC1: Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >1 to 10 kN
