Digital Mortar Mixers

Description

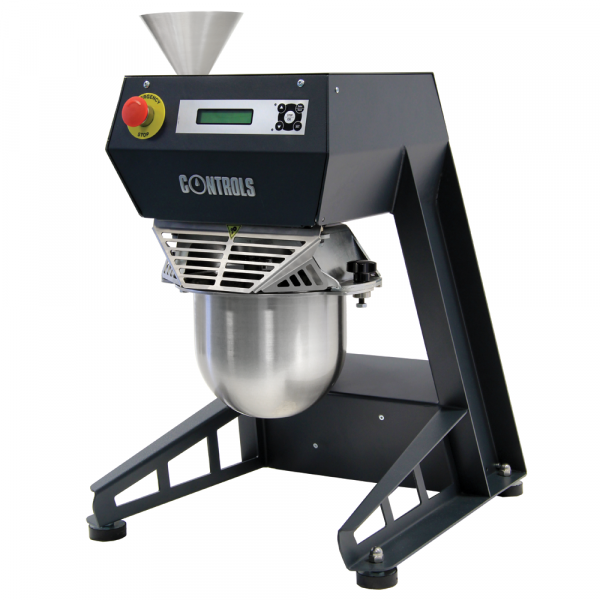

A robust device for the efficient mixing of cement mortars, this mixer is a table mounted unit with planetary mixing action and a bowl and beater that are easily fitted and removed. The front grill, when opened, automatically stops the machine for operator protection conforming to CE requirements.
The machine is supplied complete with bowl and stainless steel beater conforming to EN Standards.
The machine operates with a dedicated and easy to use display and keyboard control. Either Standard speeds or user defined speeds can be easily selected (also adjustable during mixing).
The machine can be supplied, on request, complete with a sand open-type hopper. See accessories

  • Complete with bowl and beater conforming to EN Standards
  • Continuously variable speed (VFD technology)
  • Either Standard or user defined speeds can be easily selected (also adjustable during mixing)
  • Blade/Planetary speeds adjustable from 30/13 to 380/165 rpm, depending on the mix consistency

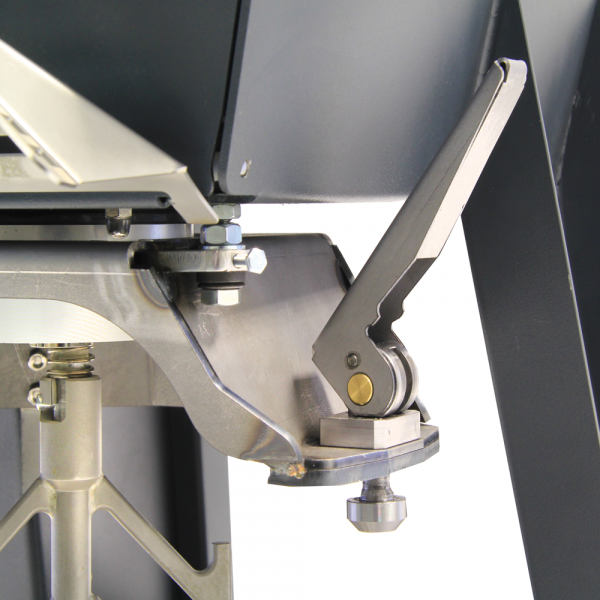

  • 3-points bowl supporting system allowing precise adjustment of the gap between bowl and beater
  • Digital mixer, user friendly interface with functional alphanumeric display 2 x 16 characters and keybord
  • Micro-switch preventing the machine to be started without bowl, and emergency stop button
  • Conforming to CE requirements

Label/Normering

Technische specificaties

Technical Specifications

  • Planetary speeds: 62 and 125 rpm or user defined
  • Beater speed: 140 and 285 rpm or user defined
  • Bowl capacity: 5 litres
  • Alphanumeric display 2 x 16 characters
  • Power: 370 W
  • Overall dimensions: 465x540x620 mm (lxd x h)
  • Weight: 35 kg (approx.)

Order nummers

65-L0502:

Digital mortar mixer, 5 liters capacity complete with mixing bowl and beater.

65-L0504:

Digital mortar mixer, 5 liters capacity complete with mixing bowl and beater.

Accessoires & toebehoren

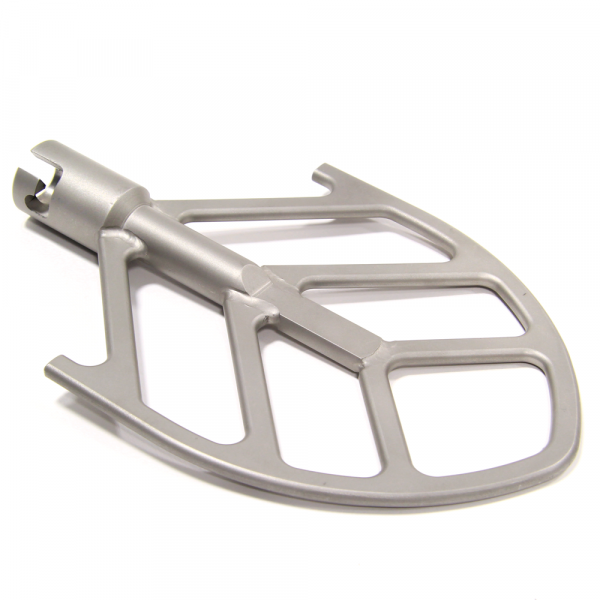

65-L0005/5: Hard rubber scraper 65-L0502/2: Spare stainless steel bowl for digital mortar mixer series 65-L050x, 5 liters capacity 65-L0512/EN: Stainless steel beater for mixer series 65-L050x and 65-L051x . Conforming to EN 196-1 if combined with mixer series 65-L051x. 65-L0007/1: Reference sand to EN 196. 32 bags, tot. 43,20 Kg. 65-L0502/1: Open-type hopper suitable for digital mortar mixerseries 65-L050x: 65-L0007/2:

Reference sand to ASTM C 778,  20-30 sand -  OTTAWA-TYPE SILICA SAND -  1 bag of 25 kg. This sand, is from French Origin and not from USA (Ottawa), but it has been tested to meet ASTM C 778 Standard.

: 65-L0007/3:

Reference sand to ASTM C 778,  Graded sand -  OTTAWA-TYPE SILICA SAND -  1 bag of 25 kg. This sand, is from French Origin and not from USA (Ottawa), but it has been tested to meet ASTM C 778 Standard.
