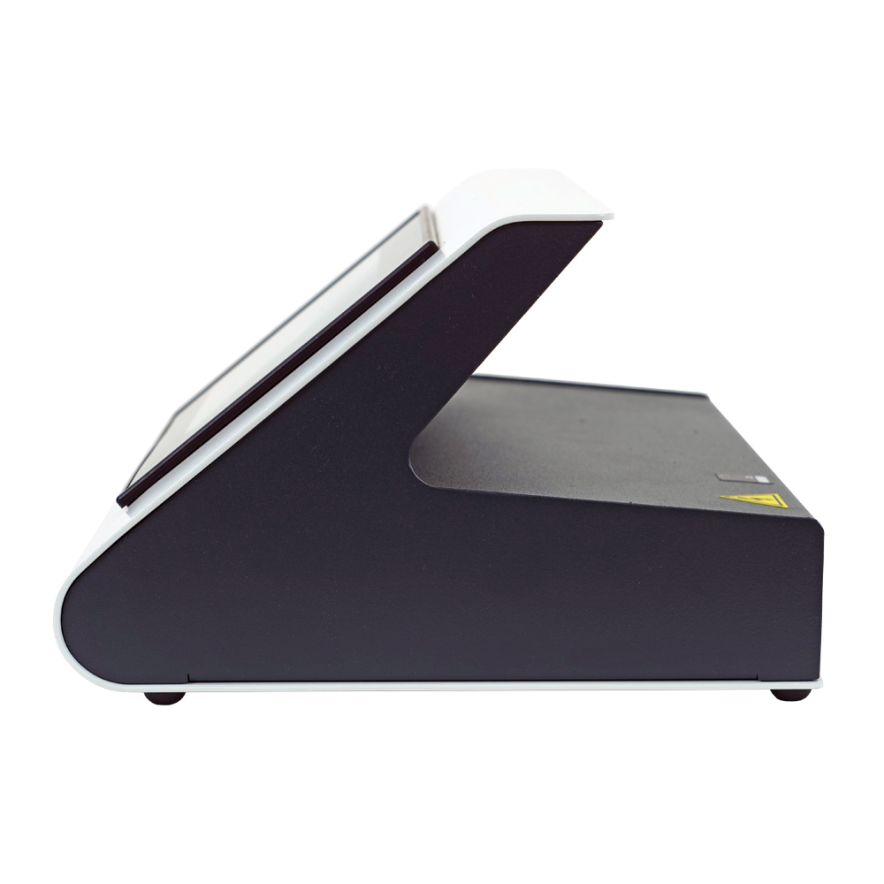

Digital Readout Unit DIGIMAX


Very often may be convenient to update an old compression tester, replacing for example the old pressure gauge, with a modern and much more accurate load measuring system as our Digimax readout unit. This application requires a suitable pressure transducer and connecting cable.



  • Advanced digital system with touch-screen display unit
  • Compatible with the Data Manager software 82-SW/DM. See accessories
  • Can be connected to any make of hydraulic operated testing frame
  • Recording facility of up to 10 test profiles for each channel allowing quick and easy test start



Technische specificaties

Technical Specifications

The Digimax digital readout unit features:


  • 132000 points high resolution/stability analogical channels

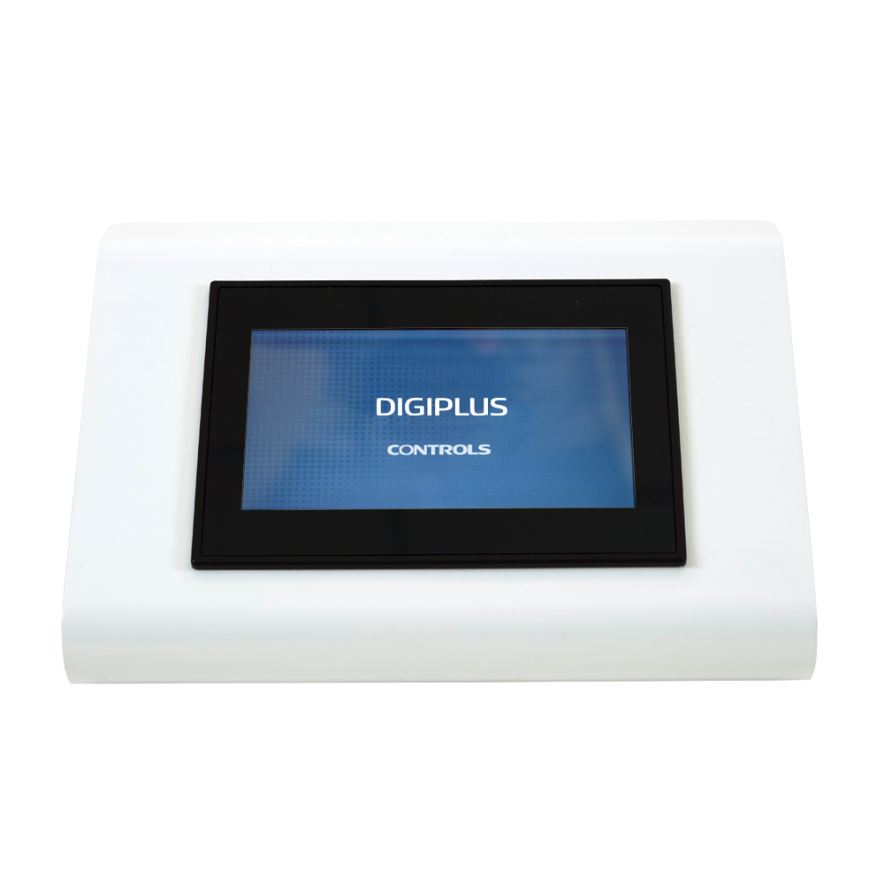

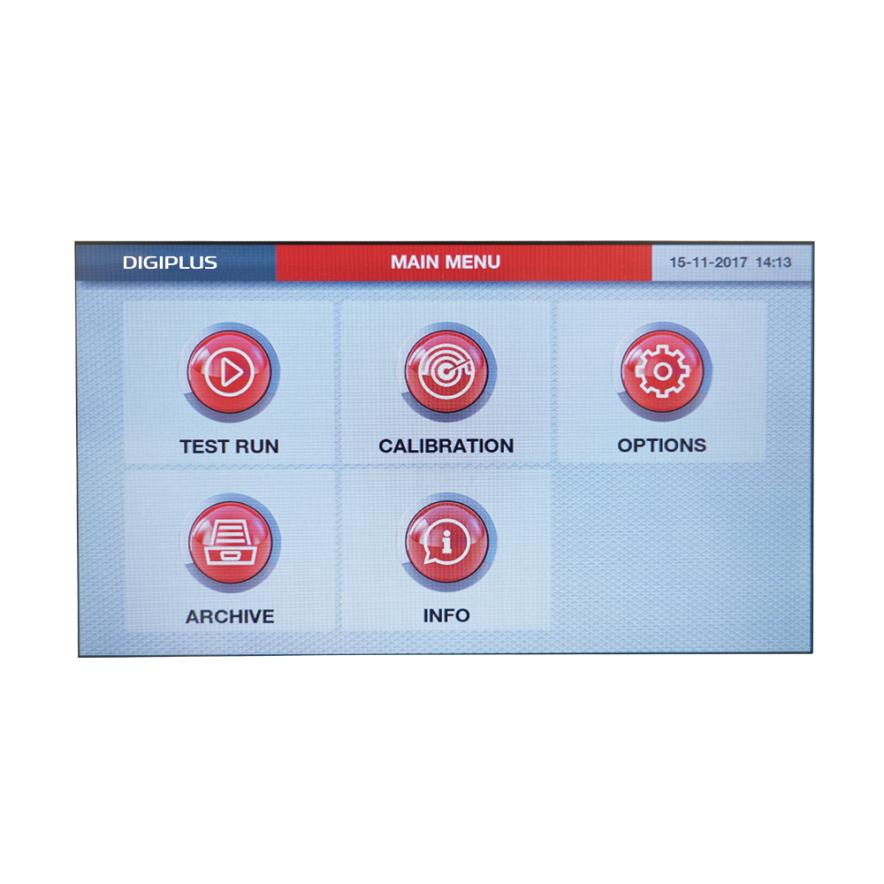

  • Touch screen graphic display 240x128 pixel, icons driven showing figures and diagrams
  • Sampling rate 50/sec
  • Large storing capacity on USB pen drive of test data downloadable to PC

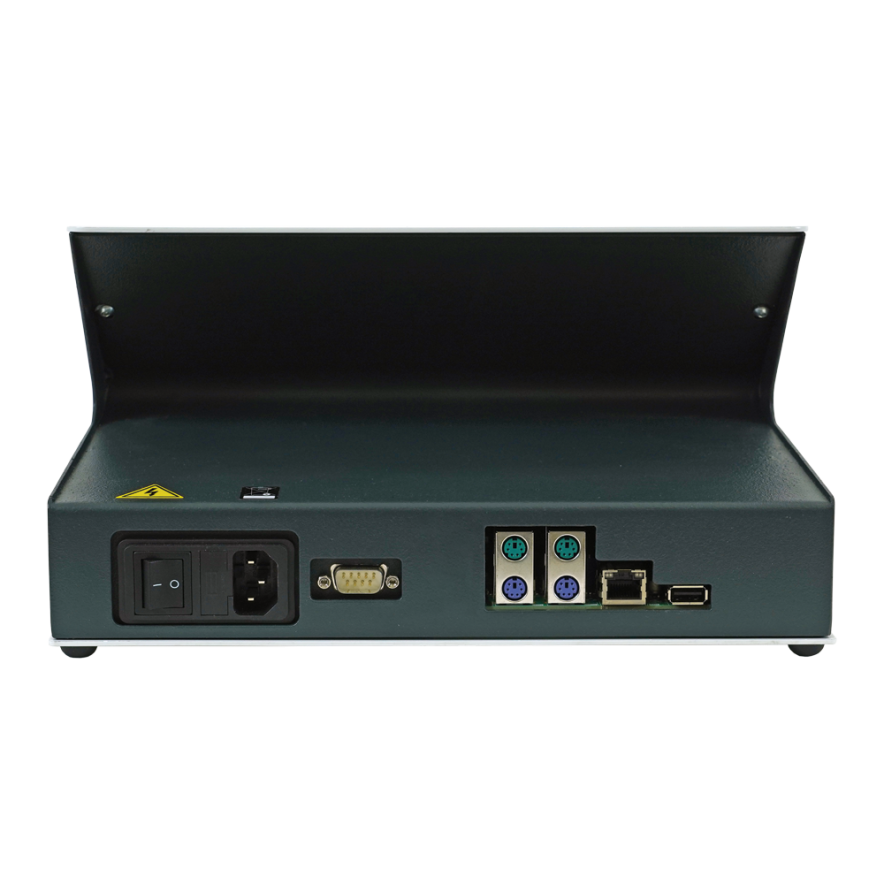

  • Ethernet port for communication with PC
  • Integrated graphic printer as optional. See accessories


  • Simultaneous display of load, specific load, actual load rate and load/time graph
  • LAN connection to PC for transmission, in real time, during loading, of load and time values
  • Easy firmware update through Ethernet port
  • Memory management with display of tests stored in USB pen, download of data to internal printer or PC, delete single test or reset entire memory
  • Multi-coefficient calibration procedure with automatic storage of data without manual editing (using a suitable load cell and readout unit)
  • Recording facility of up to 10 test procedures for each channel including: type of test (e.g. compression, flexural, indirect tensile), specimen size and shape, load rate, standard in use, and other general information. Each one of the recorded test procedures can be activated by default to save time.
  • Compatible with the Data Manager software 82-SW/DM, new release tailored on the requirements of laboratories for construction materials, for real time data acquisition, display and management
  • 12 languages, Unit selection, etc.
  • Screen saver

Order nummers


DIGIMAX three channels digital redout unit for compression machines. Supporting bracket included.110-240V/50-60Hz/1Ph


Accessoires & toebehoren


50-Q60/PR: Upgrading the WIZARD2, DIGIMAX, PILOT and AUTOMAX series to incorporate a serial graphic printer in the rear panel allowing load/time plot (only for DIGIMAX, PILOT and AUTOMAX)
