Electromechanical Sieve Shaker

Description

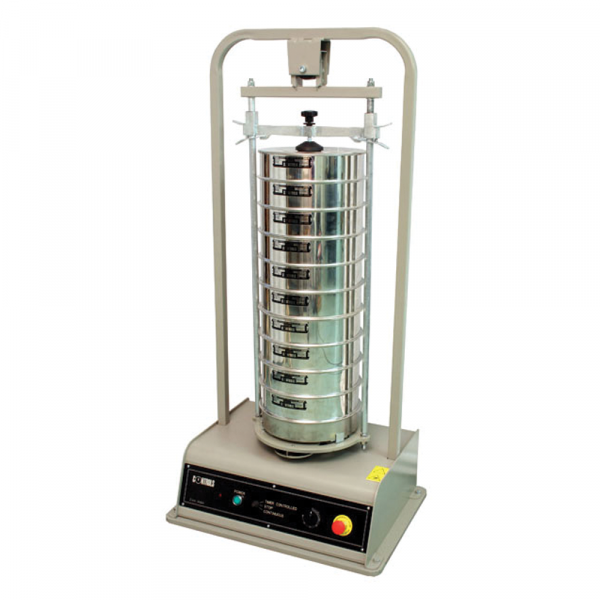

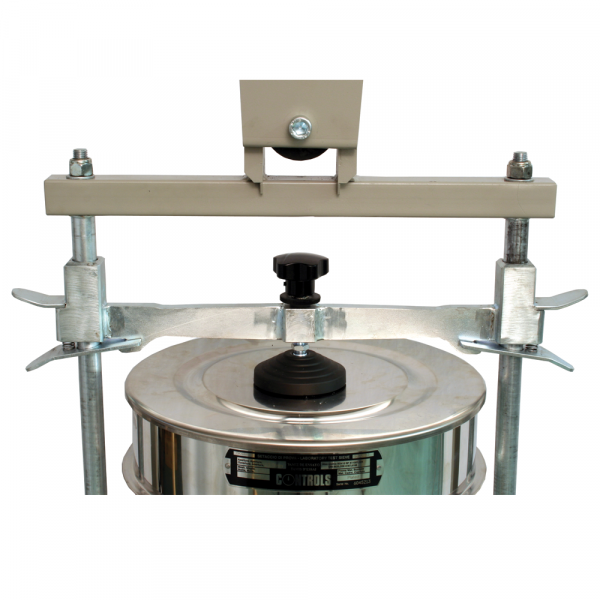

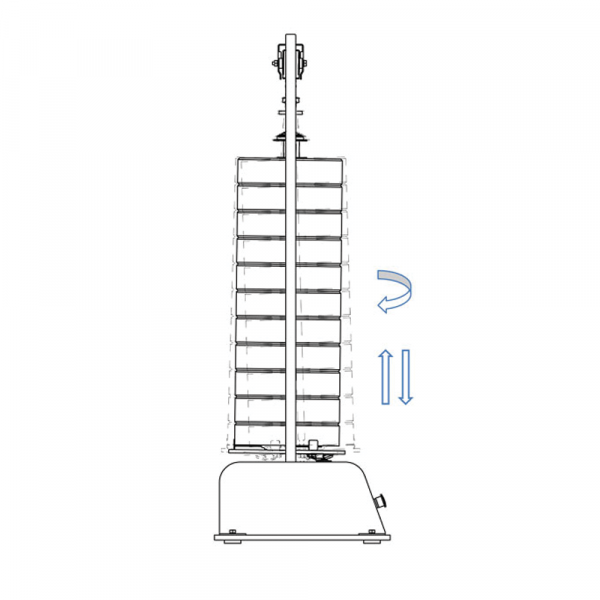

This new electro-mechanical shaker features efficient sieving action, heavy duty and simple design. The sieve column is held at the top by a rubber pad with spherical seat  and rotates eccentrically at the bottom ensuring uniform shaking of the sample across the whole surface of the sieves. Upon each revolution, a simple mechanical mechanism imparts hits at the base of the sieve column so as to move the sample on the sieve surface for a very efficient sieving action. The front panel includes the mains switch, the emergency stop button and timer.

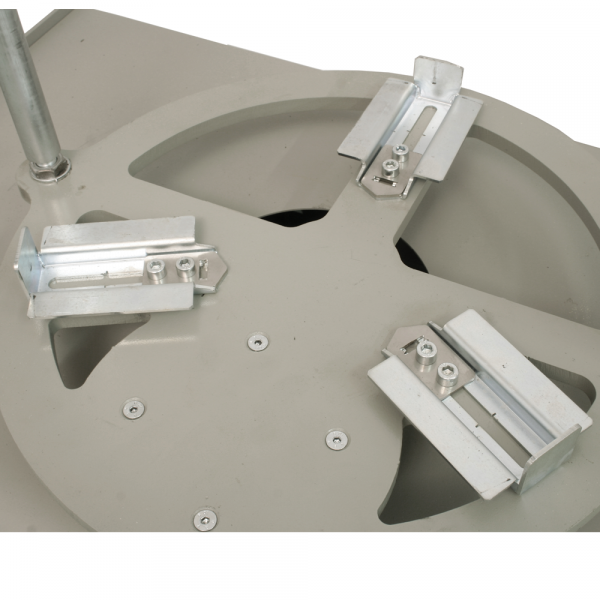

The shaker has to be fixed to the base through the four holes at the base. A noise reduction cabinet is also available for housing the shaker. See accessories.


Two versions available:



  • 15-D0410, 15-D0410/Y and 15-D0410/Z for sieves up to 315 mm dia. and
  • 15-D410/A, 15-D0410/AY and 15-D0410/AZ for sieves up to 450 mm dia



  • Double effect electromechanical sieving
  • High sieve capacity
  • For sieves up to 450 mm dia.
  • Ergonomic and fast clamping system
  • Timer function included
  • Noise reduction cabinet available. See accessories.
  • Wet sieving attachments available. See accessories.

Label/Normering

EN 932-5

Technische specificaties

Technical Specifications

Model15-D0410
15-D0410/Y
15-D0410/Z		15-D0410/A
15-D0410/AY
15-D0410/AZ
Sieve cap.Up to 12, 200/203 mm
or  10 300/315 mm
dia. sieves		Up to 10, 200/203 mm
or 8 300/315 mm
or 6 450 mm dia. sieves
Power200 W200 W
Timer scale30 min30 min
Dimensions
(lxdxh)		660x500x1510 mm740x640x1510 mm
Weight approx.60 kg70 kg



Order nummers

15-D0410:

Electromechanical sieve shaker for sieves up to 315 mm dia. 220 V, 50 Hz, 1 ph.

15-D0410/Y:

Electromechanical sieve shaker for sieves up to 315 mm dia. 220 V, 60 Hz, 1 ph.


Accessoires & toebehoren



33-T3000/CB:

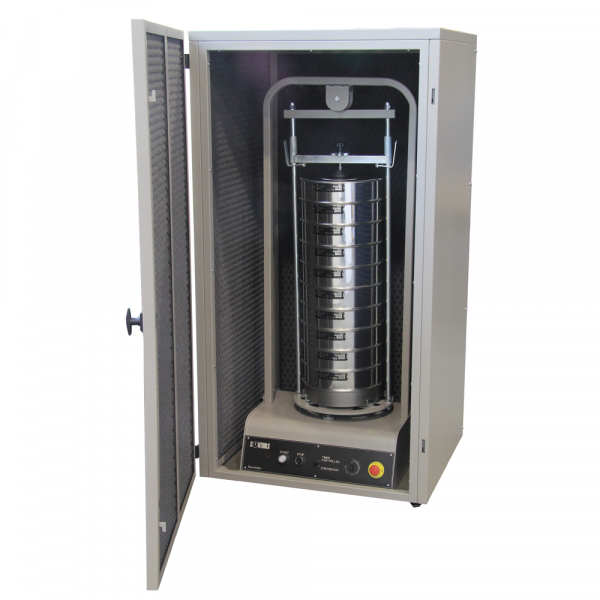

Noise reduction cabinet for CBR-Proctor compactor model 33-T351x, 33-T361x and sieve shaker model 15-D0410.

15-D0400/B1: Wet washing sieve attachment for 200 mm dia. sieves 15-D0400/B2: Wet washing sieve attachment for 8" dia. sieves 15-D0400/B3: Wet washing sieve attachment for 300 mm dia. sieves 15-D0400/B4:

Wet sieving attachment for 305 mm (12") dia. sieves. Weight 5 kg approx.

15-D0410/Z:

Electromechanical sieve shaker for sieves up to 315 mm dia. 110 V, 60 Hz, 1 ph.

15-D0410/A:

Electromechanical sieve shaker for sieves up to 450 mm dia. 220 V, 50 Hz, 1 ph

15-D0410/AY:

Electromechanical sieve shaker for sieves up to 450 mm dia. 220 V, 60 Hz, 1 ph.

15-D0410/AZ:

Electromechanical sieve shaker for sieves up to 450 mm dia. 110 V, 60 Hz, 1 ph.
