Description

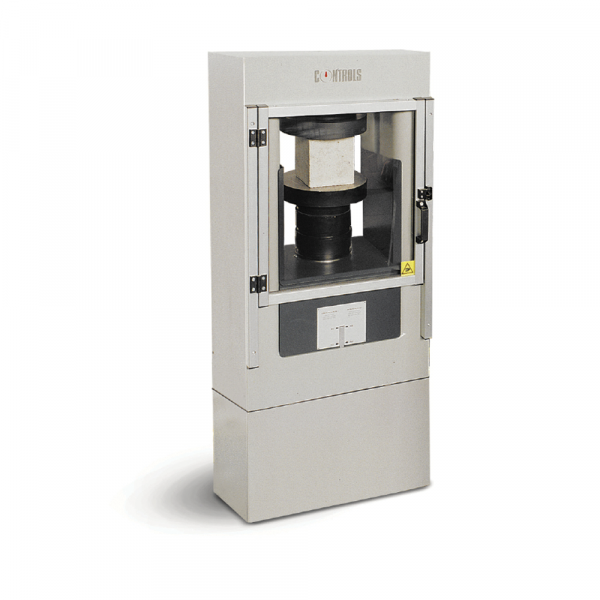

EN 12390-4 Testing frames for cubes and cylinders

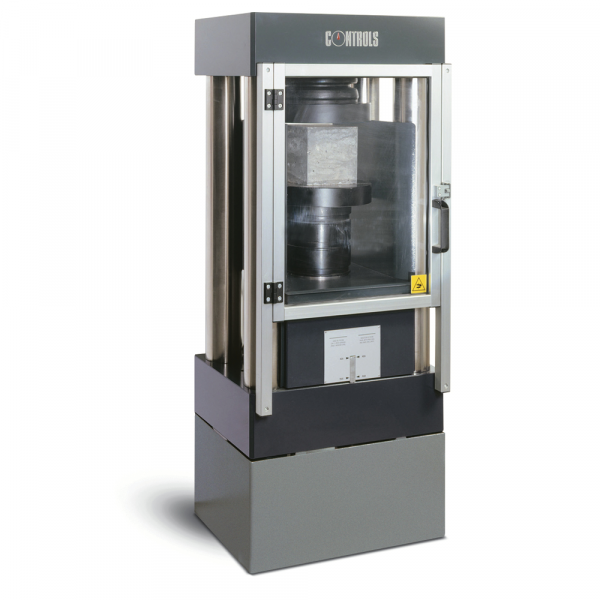

50-C46Z00, 50-C56Z00 and 50-C78Z00 frames, 2000 to 5000 kN cap., feature a four column rigid welded steel construction, with heavy duty spherical seat in oil bath, tested for stability conforming to EN 12390-4. Complete with front door and rear transparent fragment guard (except for the 4000 and 5000 kN models).

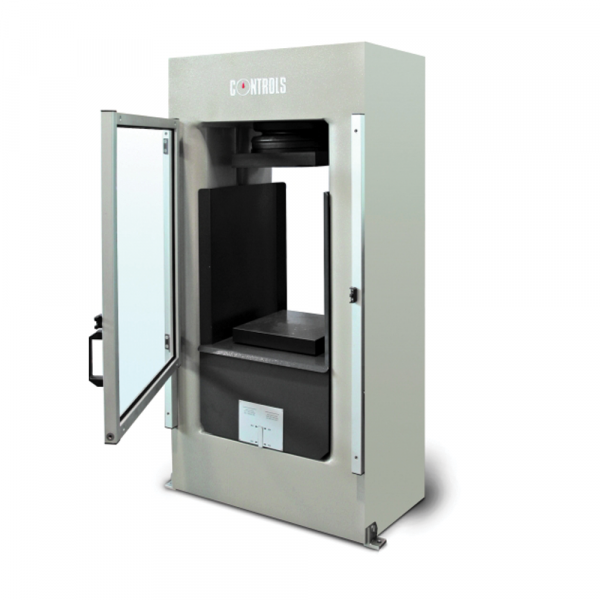

EN 12390-4, EN 772-1 Testing frames for cubes , cylinders and blocks

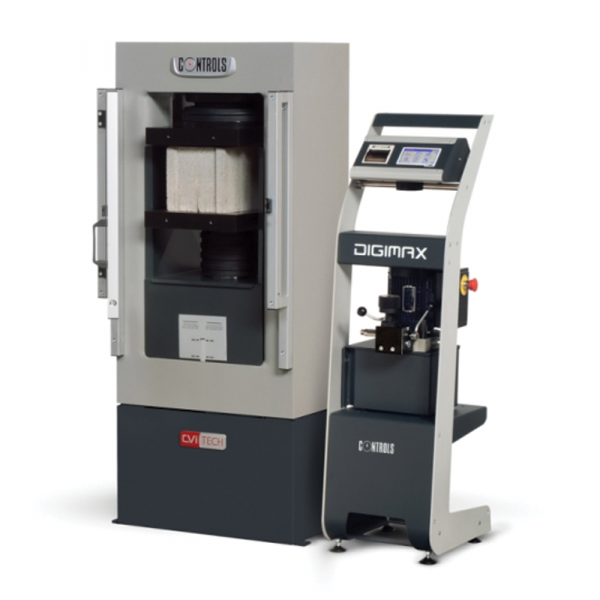

50-C47Z00 and 50-C57Z00 2000 to 3000 kN cap., feature a four column rigid welded steel construction, with heavyt duty spherical seat in oil bath and compression platens 310x510x50 mm suitable for testing blocks and all other standard specimens. Tested for stability conforming to EN 12390-4. Complete with front door and rear transparent fragment guard.
EN 772-1 Heavy duty compression frames 4000 | 5000 kN for blocks

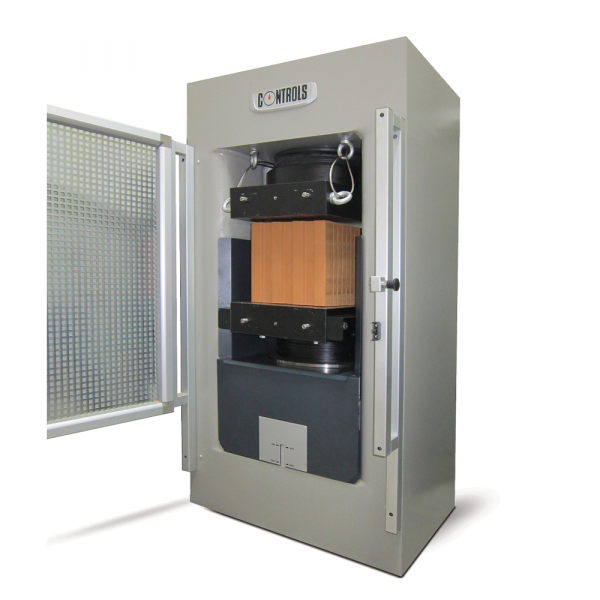

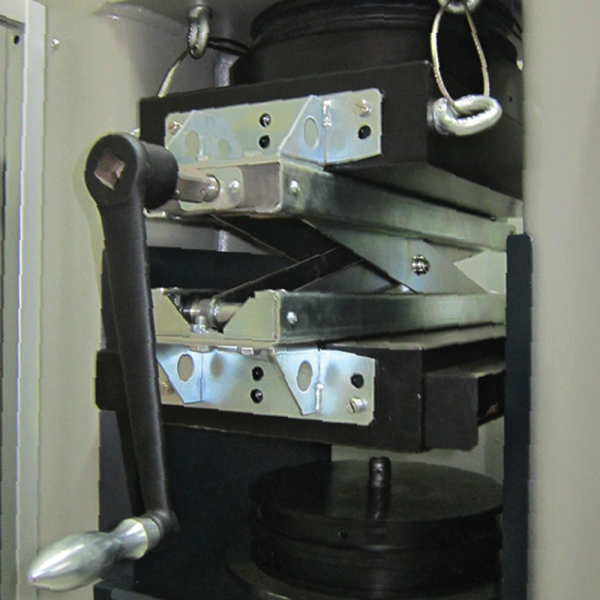

50-C69Z00 and 50-C79Z00, 4000 and 5000 kN cap., These models featuring four column rigid welded steel construction, are fitted EN Premium heavy duty spherical seat and block platens 310x510x90 mm. They include a specifically designed explosion-proof test kit comprehending: safety cables securing the upper platen to the frame, metallic perforated fragment guard and bottom platen anti-fall safety system thickness and Heavy duty premium spherical seat.

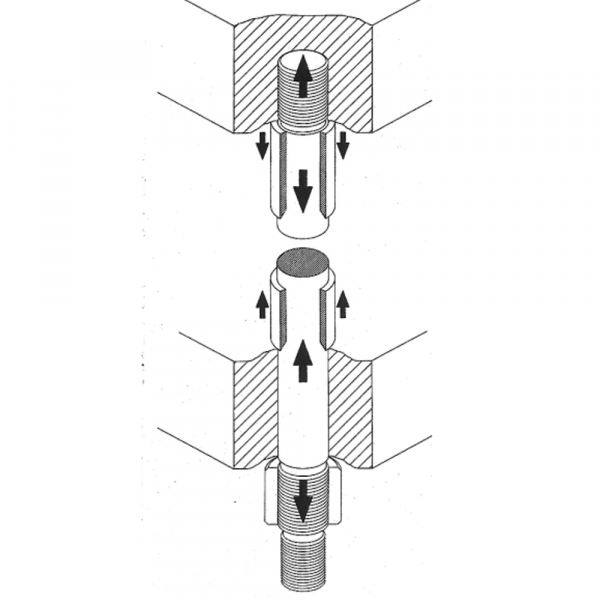

EN Four prestressed column Testing frames
High stiffness frames particularly suitable for research purposes. 50-C86Z00 and 50-C86Z10 models are identical except for the load cell incorporated in the piston of tle 50-C68Z10 version, providing very high accuracy starting from the very beginning of load scale. Heavy duty spherical seat in oil bath, tested for stability to EN 12390-4. Complete with front door and rear transparent fragment guard.
For compression platens details, see TECHNICAL SPECIFICATIONS table
Label/Normering
EN 12390-4
Technische specificaties
Technical Specifications
EN 12390-4 Testing frames for cylinders, cubes
| Models | 50-C46Z00 | 50-C56Z00 | 50-C68Z00** | 50-C78Z00** |
| Capacity kN | 2000 | 3000 | 4000 | 5000 |
| Platens dia. mm | 300 | 300 | 305x305 (sq.) | 305x305 (sq.) |
| Surface hardness (1) | 53 HRC | 53 HRC | 53 HRC | 53 HRC |
| Flatness tolerance, mm | 0.03 | 0.03 | 0.03 | 0.03 |
| Ram travel mm | 50 | 50 | 50 | 50 |
| Max. vertical daylight mm* | 350 | 350 | 520 | 520 |
| Horizontal daylight mm | 350 | 370 | 425 | 425 |
| For specimen size cm Cubes: Cylinders: | 10, 15, 20 10x20, 15x30, 16x32 | 10, 15, 20 10x20, 15x30, 16x32 | 15, 20, 30 15x30, 16x32, 25x50 | 15, 20, 30 15x30, 16x32, 25x50 |
| Overall dim. (lxdxh) mm | 530x310x1500 (incl. pedestal) | 600x370x1500 (incl. pedestal) | 705x445x1500 | 705x445x1500 |
| Weight approx. kg | 740 | 970 | 1950 | 1950 |
* To be adjusted using the suitable distance pieces. See accessories.
** If this frame and a second frame (cement or flexural) are both connected to AUTOMAX or PILOT Smart-Line control console, the pressure regulator model 65-L1400/X5 has to be used.
(1) Hardness certificate available on request
EN 12390-4, EN 772-1 Testing frames for cylinders, cubes, and blocks
| Models | 50-C47Z00 | 50-C57Z00 | 50-C69Z00** | 50-C79Z00* |
| Capacity kN | 2000 | 3000 | 4000 | 5000 |
| Platens dim. | 310x510x50 mm | 310x510x50 mm | 310x510x90mm | 310x510x90mm |
| Surface hardness (1) | 55.5 HRC | 55.5 HRC | 55.5 HRC | 55.5 HRC |
| Flatness tolerance, mm | 0.05 | 0.05 | 0.05 | 0.05 |
| Ram travel mm | 50 | 50 | 50 | 50 |
| Max. vertical daylight mm* | 360 | 350 | 310 | 310 |
| Horizontal daylight mm | 350 | 370 | 425 | 425 |
| For specimen size cm Cubes: Cylinders: Blocks | 10, 15, 20 10x20, 15x30, 16x32 up to 500x300 | 10, 15, 20 10x20, 15x30, 16x32 up to 500x300 | 15, 20, 30 15x30 up to 500x300 | 15, 20, 30 15x30 up to 500x300 |
| Overall dim. (lxdxh) mm | 650x610x1530 (incl. pedestal) | 740x640x1550 (incl. pedestal) | 845x570x1550 | 845x570x1550 |
| Weight approx. kg | 725 | 1100 | 2000 | 2000 |
* To be adjusted using the suitable distance pieces. See accessories.
** If this frame and a second frame (cement or flexural) are both connected to AUTOMAX or PILOT Smart-Line control console, the pressure regulator model 65-L1400/X5 has to be used.
(1) Hardness certificate available on request
EN 12390-4, 4-prestressed-columns testing frames
| Models | 50-C86Z00 | 50-C86Z10* |
| Capacity kN | 3000 | 3000 |
| Platens dia. mm | 300 | 300 |
| Surface hardness (1) | 53 HRC | 53 HRC |
| Flatness tolerance, mm | 0.03 | 0.03 |
| Ram travel mm | 50 | 50 |
| Max. vertical daylight mm* | 350 | 350 |
| Horizontal daylight mm | 330 | 330 |
| For specimen size cm Cubes: Cylinders: | 10, 15, 20 10x20, 15x30, 16x32 | 10, 15, 20 10x20, 15x30, 16x32 |
| Overall dim. (lxdxh) mm | 560x380x1400 (incl. pedestal) | 560*380x1400 (incl. pedestal) |
| Weight approx. kg | 1040 | 1150 |
*Strain gauge load cell incorporated in the piston
(1) Hardness certificate available on request
Order nummers
Accessoires & toebehoren
50-C0050/HRD4:
Supply of the compression machine with dia.300mm platens complete with traceable certificate of hardness of testing platens surfaces (upper and bottom platen certification included). Available only for ordering with compression machine.
50-C0050/HRD6:
Supply of the compression machine with 305x305 mm platens complete with traceable certificate of hardness of testing platens surfaces (upper and bottom platen certification included). Available only for ordering with compression machine.
50-C0050/HRD7:
Supply of the compression machine with 310x510x50 mm platens complete with traceable certificate of hardness of testing platens surfaces (upper and bottom platen certification included). Available only for ordering with compression machine.
50-C9080/68:
Distance piece dia.200x68mm complete with both central centering pin for simple stacking up and two screws for solid fixing.
50-C59/FGH:
Upgrading of the 50-C57xxx and 50-C56xxx series compression frames with metallic perforated front door instead of standard trasparent one
50-C68Z00:
4000 kN cap. compression frame for testing cylinders up to 250 x 500 mm and cubes up to 300mm. Conforming to EN 12390-4.
50-C78Z00:
5000 kN cap. compression frame for testing cylinders up to 250 x 500 mm and cubes up to 300mm. Conforming to EN 12390-4.
50-C47Z00:
2000 kN cap. compression frame for testing blocks,cylinders up to 160 x 320 mm and cubes up to 200mm. Conforming to EN 12390-4 and EN 772-1. - High-stiffness 4-welded-columns frame
50-C57Z00:
3000 kN cap. compression frame for testing blocks,cylinders up to 160 x 320 mm and cubes up to 200mm. Conforming to EN 12390-4 and EN 772-1.
50-C59/FGH1:
Upgrading of the 50-C56Fxx e 50-C56Fxx/M series compression machines with metallic perforated front door instead of standard trasparent one
50-C69Z00:
4000 kN cap. compression frame for testing blocks,cylinders up to 150 x 300 mm and cubes up to 300mm. Conforming to EN 12390-4 and EN 772-1.
50-C69/FGH:
Upgrading of the 50-C78xxx and 50-C68xxx series compression frames with metallic perforated front door instead of standard trasparent one
50-C9080: Distance piece dia 200 x 30 mm 50-C9080/30:
Distance piece dia.200x30mm complete with both central centering pin for simple stacking up and two screws for solid fixing.
50-C9082: Distance piece dia 200 x 50 mm 50-C9080/50:
Distance piece dia.200x50mm complete with both central centering pin for simple stacking up and two screws for solid fixing.
50-C9083: Distance piece dia 200 x 68 mm 50-C79Z00:
5000 kN cap. compression frame for testing blocks,cylinders up to 150 x 300 mm and cubes up to 300mm. Conforming to EN 12390-4 and EN 772-1.
: 50-C9086: Distance piece dia 200 x 100 mm. 50-C9080/100:
Distance piece dia.200x100mm complete with both central centering pin for simple stacking up and two screws for solid fixing.
