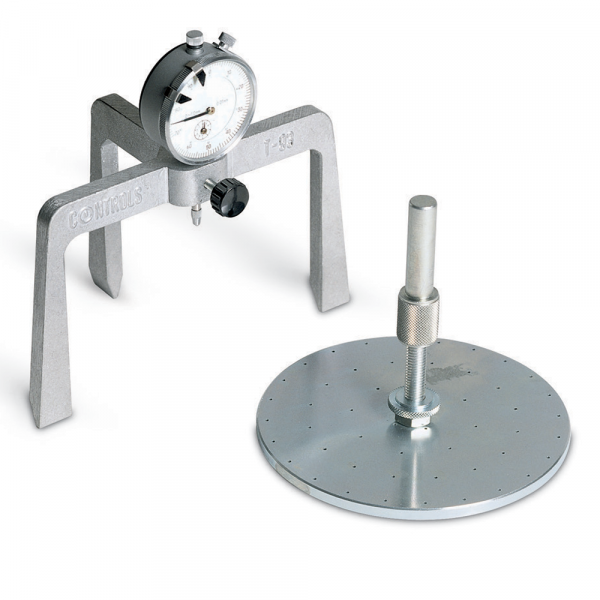

Expansion (Swell) Test Apparatus

Expansion (Swell) Test Apparatus

Description

Used for monitoring the swelling of CBR samples.
Typical configuration is compoased by:
- Tripod
- Dial Gauge
- Perforated plate with adjutable stem

Label/Normering

  ASTM D1883‰BS 1377:4‰BS 1924:2‰NF P94-093‰EN 13286-47‰NF P94-078

Technische specificaties

Order nummers

34-T0092: Perforated plate with adjustable stem (swell plate) 34-T0093: Dial gauge tripod

Accessoires & toebehoren



34-T0100/B: Large soaking tank, external dim. 800x600x550 mm 16-T0080: Universal extruder 82-D1255: Dial gauges 10 mm x 0.01 mm 82-D1257: Dial gauge 30 mm x 0.01 mm 34-T0092/F: Perforated plate with adjustable stem (swell plate) according to NF spec. 34-T0092/E: Perforated plate with adjustable stem for swellingtest. Compatible with EN mould.
