Materiaaltesten Fundering  External Load Cells

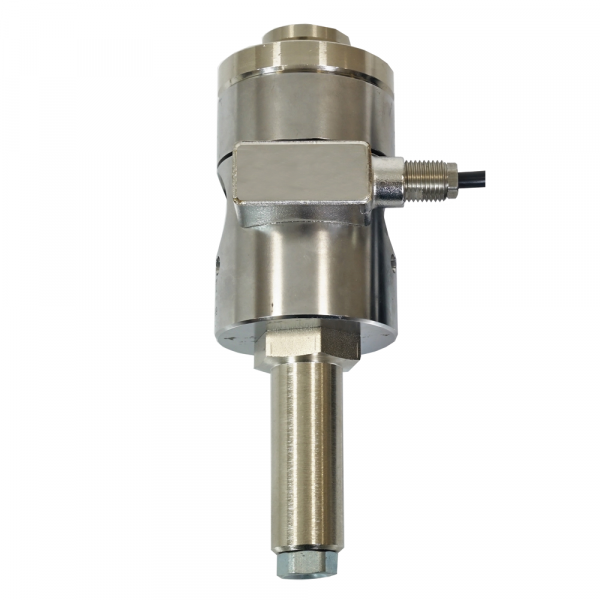

External Load Cells

Description

Used to measure the axial force applied to the specimen in the triaxial cells or in a shear machine  Complete with connector to the upper beam of Triaxial load frames or shear machine

Note: All models can be supplied, on request, complete with traceable calibration certificate. They are identified by the suffix C after the code number. Ex. 28-WF0370/TC.

Label/Normering

Technische specificaties

Technical Specifications

  • Nominal sensitivity: 2mV/V
  • Accuracy: better than 0.2%
  • Dimensions (cell only):
    dia. 57x80 mm (3.5 and 10 kN models)
    dia. 82x110 mm (50 and 100 kN models)
  • Weights approx.:
    2 kg (3.5 and 10 kN models)
    5 kg (50 and 100 kN models

Order nummers

28-WF0370/T: 3.5 kN capacity strain gauge load cell with adapters for triaxial machine 28-WF0374/T: 25 kN capacity strain gauge load cell with adapters for triaxial machine

Accessoires & toebehoren



: 28-WF0375/T: 50 kN capacity strain gauge load cell with adapters for triaxial machine 28-WF0376/T: 100kN cap. strain gauge load cell with adapters for triaxial machine 28-WF0373/T: 10 kN capacity strain gauge load cell with adapters for triaxial machine 27-WF0377/ST: 5 kN load cell, complete with adaptors for shear machine 27-WF20D60 and WF21A60.
