Field CBR Test Set and Conversion Frame for Laboratory Use

Description

CBR test can be performed not only in laboratory but also in-situ. CONTROLS proposes a dual purpose test assembly that, connected to the suitable accessories, can satisfy both needs:
  • for field testing, 34-T0115/A includes all necessary components that, along with vehicle bracket code 34-T0115/9, can be used for in-situ determination of bearing capacity of soils used in road construction.
  • alternatively, for laboratory testing, our frame code 34-T0114 can be assembled with the main components of 34-T0115/A, to create a hand operated CBR machine.

Please consult the tables below for detailed information.

The CBR penetration test can be performed with a number of loading presses, some of them specifically designed for CBR tests, and others with multiple applications (Universal models), at different levels of sophistication:

  • MULTISPEED digital automatic universal tester for displacement controlled tests
  • CBR motorized loading press
  • Hand operated CBR loading press

Please refer to the links to related produts below.



Label/Normering

  BS 1377:9‰BS 1924:2‰UNI 10009‰ASTM D4429

Technische specificaties

Technical Specifications

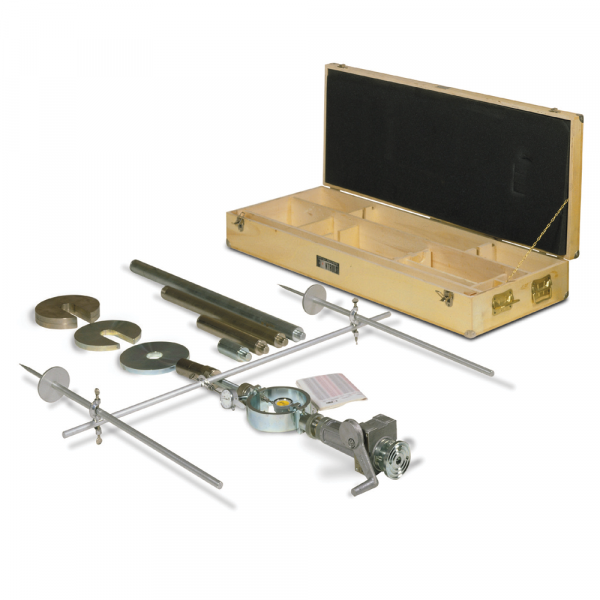

Assembly for in-situ testing
The Field CBR test set 34-T0115/A includes the following components, that can be purchased individually as spare parts:

CodeDescriptionWeight [kg]
34-T011250 kN cap. mechanical jack8.5
34-T0112/1Ball seating for 34-T01121
82-T100840 kN cap. load ring4
34-T0103/1Adjustable CBR penetration piston2.2
34-T0104/7Adjustable dial gauge holder0.1
34-T0115/3Set of 3 extension rods and adapters33
34-T0115/41Datum bar assembly including two tripod stands and a 1220 mm long aluminium bar7
82-D1257Penetration dial gauge, 30x 0.01 mm0.2
34-T0115/59 kg slotted surcharge9
34-T0115/64.5 kg slotted surcharge 4.5
34-T0115/74.5 kg anular surcharge4.5

Total weight (including all parts listed above) of the 34-T0115/A set is 70 kg approx
Note: vehicle bracket code 34-T0115/9 has to be ordered separately as accessory.

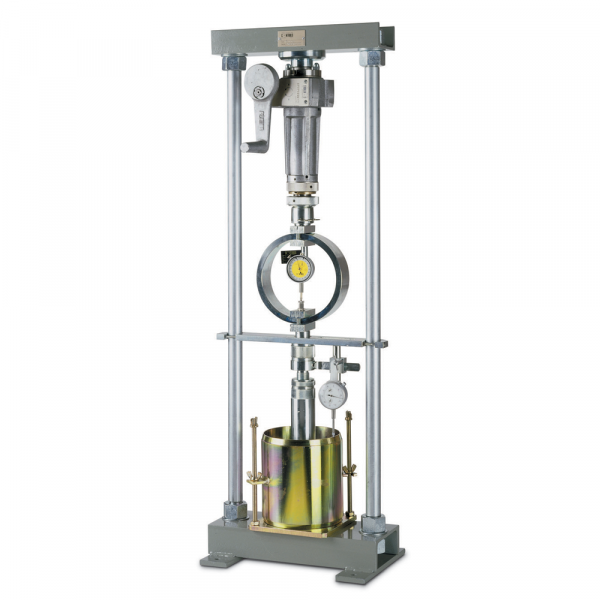

Assembly for laboratory testing
To create a hand operated CBR laboratory loading press, the testing frame 34-T0114 has to be assembled with the following components:

CodeDescriptionWeight [kg]
34-T011250 kN cap. mechanical jack8.5
34-T0112/1Ball seating for 34-T01121
82-T100840 kN cap. load ring4
34-T0103/1Adjustable CBR penetration piston2.2
34-T0104/7Adjustable dial gauge holder0.1
82-D1257Penetration dial gauge, 30x 0.01 mm0.2

Total weight (including all parts listed above) of the 34-T01114 set is 55 kg approx

Note: frame code 34-T0114 has to be ordered separately.

Order nummers

34-T0115/A: Field CBR test set :

Accessoires & toebehoren



34-T0114: Frame to convert the 34-T0115/A in a hand operatedCBR loading press 34-T0115/9: Vehicle bracket
