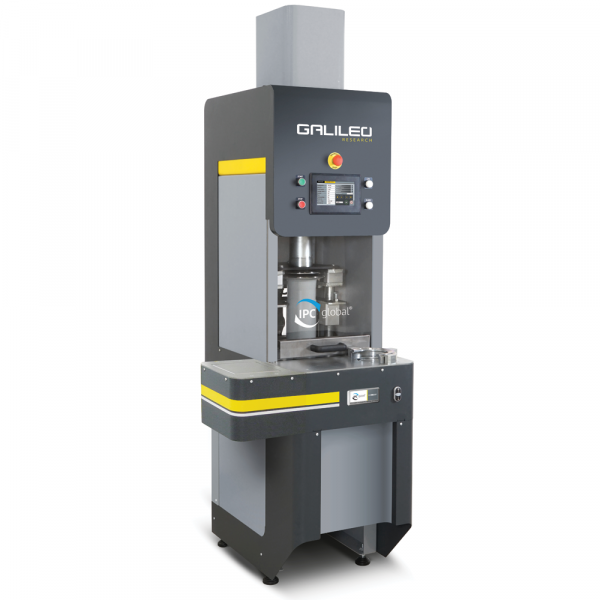

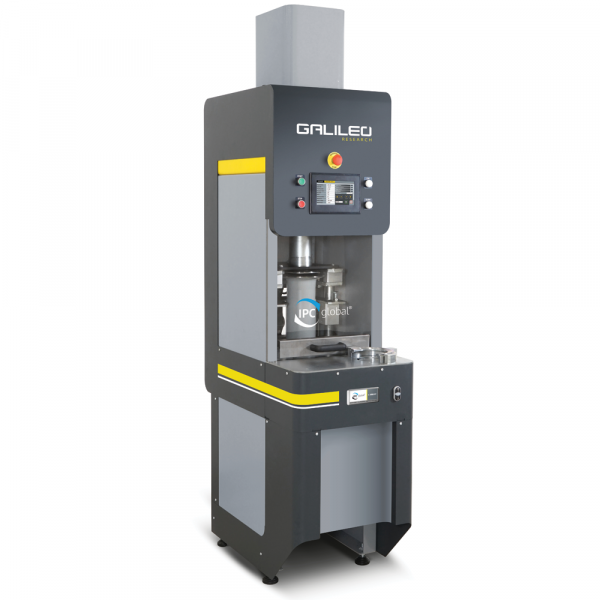

Fully Electro-Mechanical Gyratory Compactor GALILEO


A robust precision-engineered steel structure incorporating the EMS Electromechanical servo-actuation mechanism for vertical load application and "Orbital" proprietary gyration and mold rotation system (Patent pending) delivering highly accurate and repeatabletest results, together with stiffness and angle stability values that fall comfortably within the limits defined in EN 12697-31.

The large 7 "user-friendly integrated touch screen control panel shows the real-time test graph
The on-board firmware includes nine languages and also offers the option to control the tests from a PC

A traceable calibration certificate conforming ASTM and AASHTO Standards is also included.

Operating principle

Standard specify the method for compaction of cylindrical specimens of bituminous mixtures using a gyratory compactor. Such compaction is achieved by combining a rotary shearing action with a vertical static force applied by a mechanical head.

The method can be used for:

  • Preparation of specimens of a given height at a predetermined density, for subsequent testing of their mechanical properties;
  • Derivation of a curve of density versus number of gyrations;
  • Void content for a given number of gyrations.

Standards apply to bituminous mixtures (made either in laboratory or from on-site sampling), with aggregates not larger than 37.5 mm. During operation the bituminous mixture is contained in a cylindrical mould (100 or 150 mm diameter). Compaction is achieved by the simultaneous application of a low-static compression and a shearing action, which results in the motion of the centre-line of the test piece, which generates a conical surface of revolution while the ends of the test piece remain approximately perpendicular to the axis of the conical surface.

The gyratory compactor Galileo can be used as part of your Superpave performance based testing program.

  • High precision, robust load mechanism combined with an extremely rigid frame assures high accuracy and repeatability
  • Load cell fitted directly on the vertical actuator for accurate load measurement and feedback control
  • Quick and easy manual/mechanical adjustment of the gyratory angle shown on the display
  • User defined axial stress and speed of rotation
  • Sliding transparent door with safety interlock
  • Catch tray to collect expelled liquids using perforated moulds
  • Fresh concrete configuration available
  • Easy control using the integrated 7" colour touchscreen panel or connected PC
  • User friendly PC software for data analysis and tests set up. Remote communication is available to receive immediate diagnostics
  • Automatic data saving on USB or on Windows PC
  • Lightweight yet robust moulds strictly comply with international Standards
  • Safe and easy mould insertion and extraction with automatic lifting ensures low effort for the operator and higher productivity
  • Simultaneous extraction of last specimen for higher productivity
  • Easy specimen extraction with the integrated extruder
  • Mounted on swivel caster wheels for easy moving and positioning
  • Real-time direct shear and torque resistance measurement. Automatic calculation of the compaction energy (optional)


  EN 12697-10‰EN 12697-31‰AASHTO T312‰ASTM D6925‰AS 2891.2.2

Technische specificaties

Technical Specifications


Galileo 78-PV20G0X

Consolidation pressure

10 – 1000 kPa for 150 mm diam.
25 – 2200 kPa for 100 mm diam.

Gyratory motion and
Vertical load


Angle adjustment


Gyratory angle range

0 -3° ±0.01

Gyratory angle measurement

Angle measured and displayed during test

Zero angle at the end of the test


Speed of gyration

5 – 60 rpm (120 on request)

Number of gyrations

0 -9999

Integrated Shear measurement

Yes (optional)

Moulds dimensions

100 and 150 mm diam., 250 mm height.

User interface

7” 16:9 Touch screen color display
(PC for data analysis)


LAN - Ethernet

PC Software

Available as option


Available as option (electromechanical)


Available as option with an accuracy of 1 g

Minimum specimen height

50 mm

Maximum specimen height

Up to 200 mm depending on mix type

Height accuracy

Better than 0,1 mm

Suitable for water pouring test


Suitable for concrete/cement testing

Yes (on request)

(w x d x h)

480 x 900 x 2150 mm

Weight approx.

400 kg


Order nummers


GALILEO Fully Electromechanical Gyratory compactor. 230V/50-60Hz/1Ph


GALILEO Fully Electromechanical Gyratory compactor. 110V/60Hz/1Ph

Accessoires & toebehoren



ILS device for internal angle measurement for Gyratory compactors, conforming to EN 12697-31, annex B. Complete with Excel Macro and PC connection cable

78-PV0250/10: Hardened cylinder mould 150 mm dia. with holes for cold mix compaction. Complete with top and bottom plates 78-PV0250/11: Vertical force indicator, complete with 25kN load cell, base, spherical seat, load readout unit and calibration certificate 78-PV0250/13: Stainless steel wearing disc for 150mm dia. gyratory compactor mould 78-PV0250/14: Stainless steel wearing disc for 100mm dia. gyratory compactor mould: 78-PV0250/2: Hardened cylinder mould 150 mm dia complete with top and bottom plates. 78-PV0250/3: Distance piece 150 mm dia x 50 mm for low samples 78-PV0250/4:

Accessories to compact dia 100 mm specimens, required when 100mm cylinders (78-PV0250/5, 78-PV0250/8) are used. Mould not included.

78-PV0250/5: Hardened cylinder mould 100 mm dia complete with top and bottom plates. 78-PV0250/6: Distance piece 100 mm dia x 38 mm for low samples. 78-PV0250/8: Hardened cylinder mould 100 mm dia. with holes for cold mix compaction. Complete with top and bottom plates 78-PV20/SOF:

PC software, suitable for Galileo standard gyratory compactor

: 78-PV20UP1:

Shear measurement system, suitable for Galileo Standard gyratory compactor (to be specified at time of order)

78-PV20UP2: Integrated electromechanical extruder, suitable for Galileo standard gyratory compactor (To be specified at time of order) - Suitable for 100 and 150 mm dia. specimens 78-PV20UP3:

Electronic balance, 30 kg. cap., 1 g resolution. To weight the sample and to calculate the density.Suitable for Galileo standard and Galileo Research gyratory compactors (To be specified at time of order)


Traceable ACCREDIA certificate conforming to EN 12697-31 Ann. B (To be specified at time of order)
