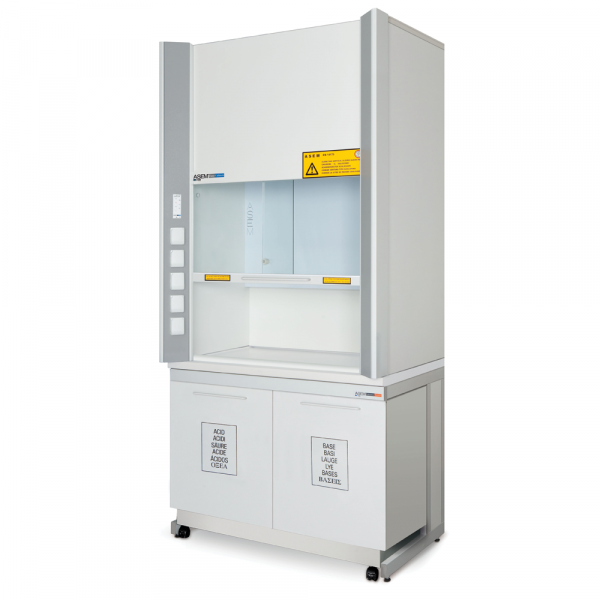

Fume Exhaust Cupboard with Aspirator

Fume Exhaust Cupboard with Aspirator

Description

The extraction method of the EN 12697-1 and corresponding ASTM standards, often require toxic solvent  (e.g. methylene chloride). This solvent is hazardous to health and is subject to occupational exposure limits as described in relevant legislation and regulations.
This Fume exhaust cupboard, fit with double aspiration system, Class 1, certified conforming to EN 14175-2-3 Bureau Veritas, fully satisfy the above requirements.

  • Certified conforming to EN 14175-2-3, Bureau Veritas
  • Complete with activated charcoal filter for solvents
  • Double aspirator system
  • Complete with stainless steel workbench incorporating sink and bibcocks

Label/Normering

Technische specificaties

Technical Specifications

  • Double aspiration system, Class 1, certified conforming to EN 14175-2-3, Bureau Veritas
  • Activated charcoal filter for solvents
  • Electrical aspirator delivering up to 1350 m3/h
  • Waterproof illumination system
  • Stainless steel worktop 1200x750 mm, incorporating sink and bibcock
  • Front sash opening with counterweight
  • Electric control panel
  • Double current outlet
  • Base cabinet with two doors and two shelves
  • Overall dimensions (wxdxh): 1200x830x900+1600 mm
  • Weight approx.: 185 kg

Order nummers

75-D3521:

Fume exhaust cupboard with aspirator and activated charcoal filter for solvents. 220-400V/50-60Hz/3ph

:
