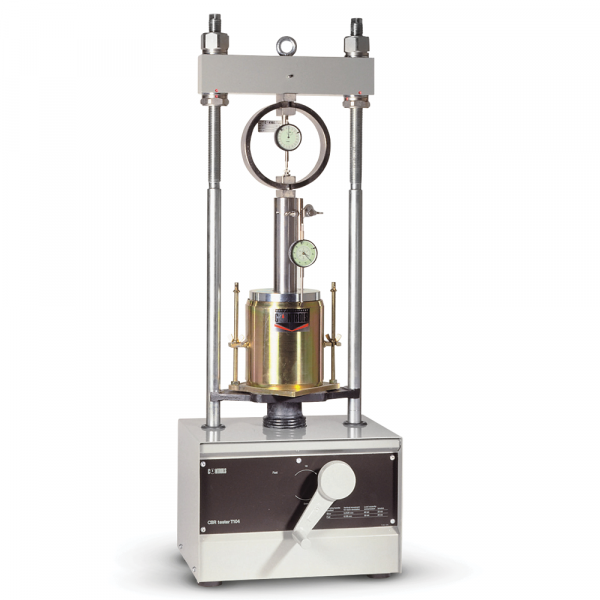

Hand Operated CBR Loading Press

Hand Operated CBR Loading Press

Description

The machine feature a rigid two column frame with upper crossbeam, which can be adjusted in height and locked in position with locknuts. The drive force is provided by a mechanical jack housed in the base cabinet.
The machine include a precision load ring, 50 kN cap., penetration piston and dial gauge.

Label/Normering

  AASHTO T193‰ASTM D1883‰BS 1377:4‰UNI 10009‰NF P94-078

Technische specificaties

Technical Specifications

  • Maximum load: 50 kN
  • Max ram travel: 120 mm
  • Horizontal span: 270 mm
  • Load ring cap.: 50 kN
  • Dial gauge: 30 mm travel x 0.01 div.
  • Dimensions (dxwxh): 410x300x1140 mm
  • Weight approx.: 75 kg

Order nummers

34-T0102/A: CBR mechanical loading frame 50 kN cap. manual operated, complete with accessories :
