Verwarmen Waterbaden  ICC 100 lite

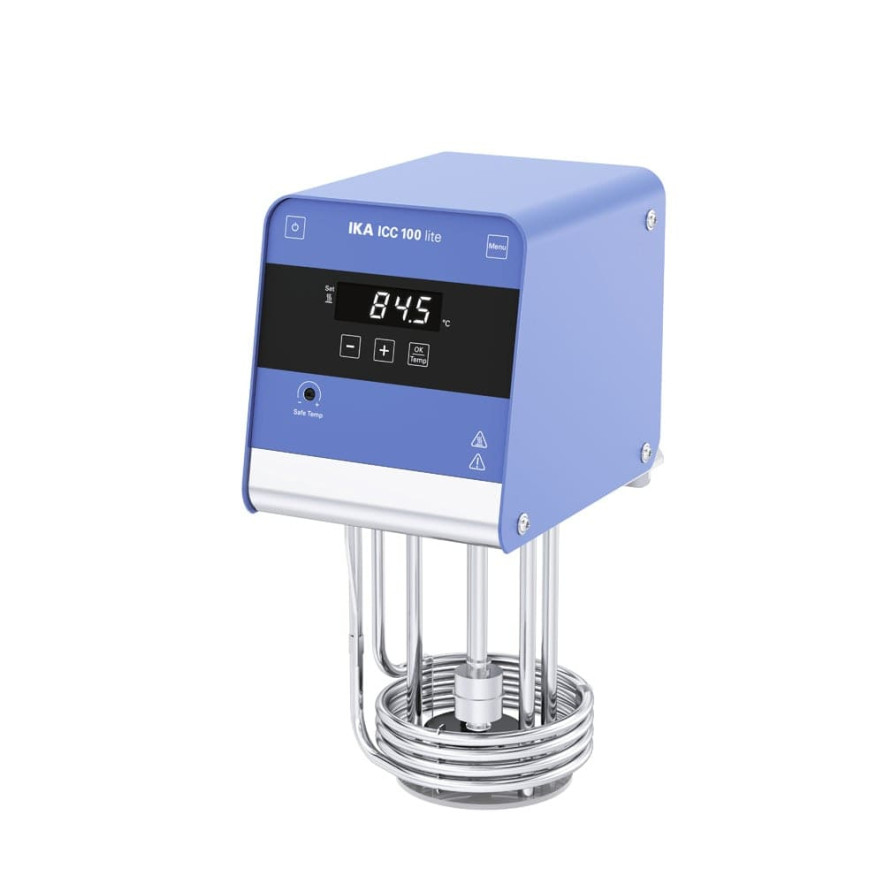

ICC 100 lite

IKA - ICC 100 lite

The compact immersion circulators of the lite series are powerful and of high quality, with a focus on essential basic functions, excellent performance and efficient operation.

ICC 100 lite is suitable for tempering liquids up to 100 °C and internal circulation.

YOUR BENEFITS

Increased safety: ICC 100 lite is approved for use with flammable liquids in accordance with DIN 12876, safety class III.
Convenient handling: The integrated stand enables easy cleaning and prevents important components from being damaged.
Durability and low maintenance: Robust design thanks to high-quality material, housing made of coated stainless steel.
USB and RS232 interface for monitoring, control and documentation.
Easy configuration: To make configuration of your temperature control system as convenient as possible, IKA offers “ready-to-connect” packages with all the necessary accessories.

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=20105647&iLang=1&iCountry=840&filename=DataSheet_ICC_100_lite.pdf https://www.ika.com/ika/pdf/flyer-catalog/IKA-new-devices_analytica_24_0412__web.pdf

Technische specificaties

Appliance type: Compact immersion circulators
Class designation acc. DIN 12876: III
Identification according to DIN 12876: FL
Heat output: 1000 W
Working temperature: room temp. - 100 °C
Operating temperature min. (with external cooling): -25 °C
Temperature display: yes
Temperature control: PID
Working temperature sensor: PT1000
Safety temperature sensor: PT1000
Working temperature display: LED
Safety temperature display: LED
Temperature stability DIN 12876: ±0.05 K
Display resolution: 0.1 K
Set temperature resolution: 0.1 K
Warning function optical: yes
Warning function acoustic: yes
Adjustable safety circuit: 0 - 110 °C
Sub-level protection: yes
Bath depth min.: 150 mm
Calibration option: yes
Appliance fastener: clamp
Range of universal clamp: 0 - 40 mm
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Dimensions (W x H x D): 135 x 303 x 180 mm
Weight: 4.2 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: USB-B
Voltage: 115 V
Frequency: 50/60 Hz
Power input: 1100 W
