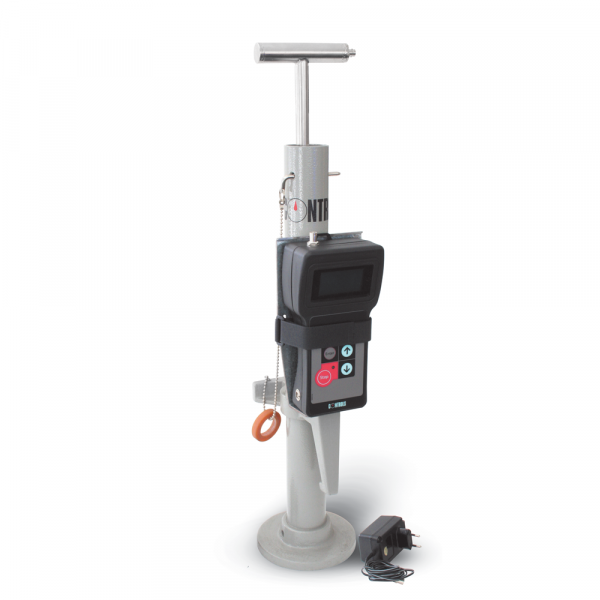

Impact Soil Tester

Impact Soil Tester

Description

Used to obtain an indication of the degree of compaction of soil in road construction. Results can be directly correlated to the CBR test. The unique microprocessor system automatically checks all readings throughout the test and displays the fourth reading as the Impact Value. An essential trench control tool for all cable and pipe laying service contractors.

  • Results can be directly correlated to the CBR test
  • An essential trench control tool for all cable and pipe laying service contractors

Label/Normering

Technische specificaties

Technical Specifications

  • Battery operated (rechargeable)
  • Graphic display 128x64 pixel
  • Measuring range up to 102 IV (Impact Value)
  • Dimensions (approx.): 140x140x700 mm
  • Weight approx.: 6.5 kg

Order nummers

34-T0168/B: Digital impact soil tester. Full scale 100IV. Reference Standard ASTM D5874. :

Accessoires & toebehoren
