Kinematic Viscometers

Description

Cannon-Fenske opaque viscometers
Used for the determination of kinematic viscosity of liquid asphalts (bitumens) and road oils at 60°C and distillation residue of liquid asphalts and asphalt cements at 135°C. Cannon-Fenske Opaque models are suitable for opaque liquids. Supplied complete with calibration certificate.

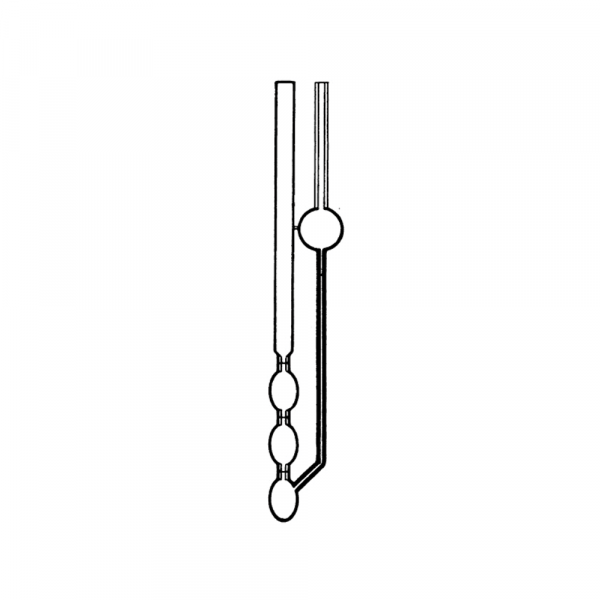

Zeitfuchs cross-arm viscometers
Used for the determination of kinematic viscosity of liquid asphalts (bitumens) road oil and distillation residues of liquid asphalts and asphalt cements at 135°C. Supplied complete with calibration certificate.

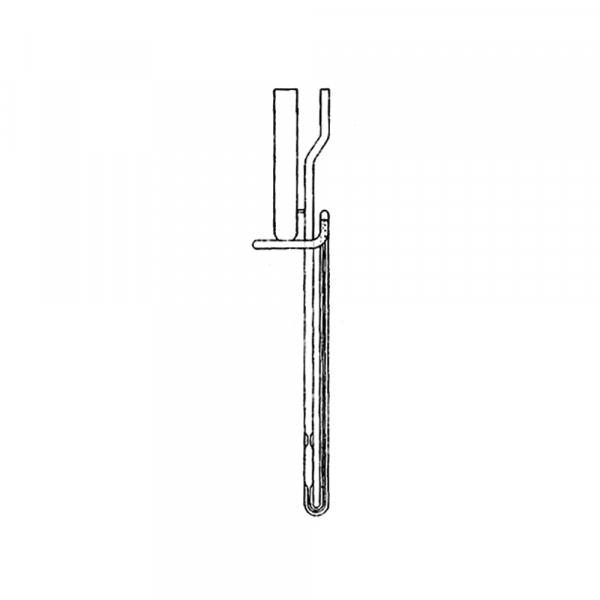

BS U-Tube modified reverse flow viscometers
Used for the determination of kinematic viscosity of liquid asphalts (bitumen) road oil and distillation residues of liquid asphalts and asphalt cements at 135°C. Supplied complete with calibration certificate.

For determining the kinematic viscosity, all the above viscometers have to be introduced in the 81-B0116/A Viscometer bath by the appropriate Holder 81-B0116/H2 for Zeitfuchs cross-arm models and 81-B0116/H3 for BS U-Tube models.
See accessories.

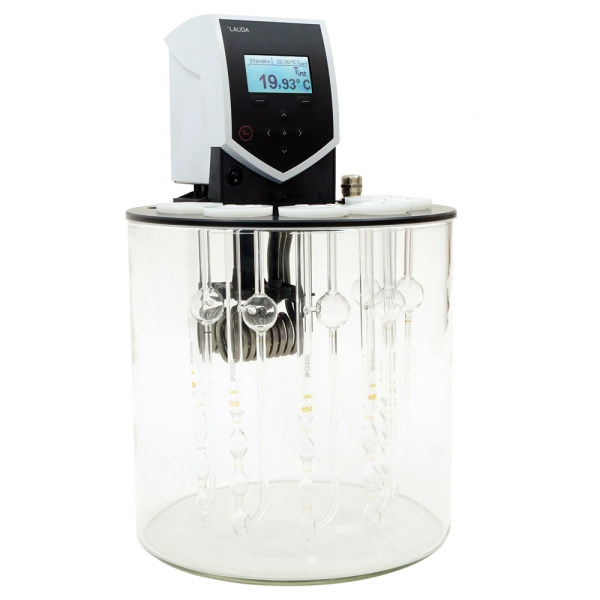

Viscometer bath is used in the determination of both the kinematic and dynamic viscosity. Used to maintain the
capillary type viscometers at a uniform temperature. The bath consists of a cylindrical glass vessel with a stainless steel cover with 50.8 mm diameter holes, motor stirrer, refrigerating coil with water connections, heating system, contact thermometer, external protection and insulating base. NOTE: 81-PV0116/A viscometer bath includes six holders for Cannon-Fenske viscometers.

Label/Normering

  AASHTO T201‰EN 12595‰ASTM D2170

Technische specificaties

Technical Specifications

Viscometer bath:

  • Temperature: room temp. +5°C to 150° C
  • Power: 2000 W
  • Temperature stability: +/-0.03°C
  • Temperature sensor: PID
  • Jar capacity: approx.20 liters
  • 6 viscometer tubes
  • Maximum temperature 200°C
  • Weight: approx.12 kg

Order nummers

81-B0116/1: Cannon-fenske viscometer 0.035 cSt/S, 7-35 cSt 81-B0116/10: Zeitfushs cross-arm viscometer 0.1 cSt/S, 20 - 100cSt

Accessoires & toebehoren



81-B0116/H2: Holder for Zeitfuchs Cross-Arm viscometers 81-B0116/H3: Holder for BS U-tube viscometers 81-PV0116/A: Viscometer bath for capillary viscometers, max temperature 200°C, capacity 20 litres, complete with 6 holders. 230V/50-60Hz/1ph 81-PV0116/AZ: Viscometer bath for capillary viscometers, max temperature 200°C, capacity 20 litres, complete with 6 holders. 110V/60Hz/1ph 82-B0116/40MF: Kinematic/dynamic viscosity thermometer IP 35C ASTM 47C, range +58,5 to +61,5°C, mercury free with alternative liquid81-B0116/11: Zeitfuchs cross-arm viscometer 0.3 cSt/S, 60 - 300cSt 81-B0116/12: Zeitfuchs cross-arm viscometer 1.0 cSt/S, 200 - 1000 cSt 81-B0116/13: Zeitfuchs cross-arm viscometer 3.0 cSt/S, 600 - 3000 cSt 81-B0116/14: Zeitfuchs cross-arm viscometer 10.0 cSt/S, 2000 - 10000 cSt 82-B0116/45MF: Kinematic/dynamic viscosity thermometer IP 93C ASTM 110C, range +133,5 to +136,5°C, mercury free with alternative liquid 81-B0116/15: Zeitfuchs cross-arm viscometer 30.0 cSt/S, 6000 - 30000 cSt 81-B0116/16: Zeitfuchs cross-arm viscometer 100.0 cst/s, 20000-100000 cSt 81-B0116/2: Cannon-fenske viscometer 0.1 cSt/S, 20 - 100 cSt 81-B0116/20: BS U-tube modified reverse flow viscometer 0.1 cSt/S, 6 - 100 cSt 81-B0116/21: BS U-tube modified reverse flow viscometer 0.3 cSt/S, 18 - 300 cSt 81-B0116/22: BS U-tube modified reverse flow viscometer 1.0 cSt/S, 60 - 1000 cSt 81-B0116/23: BS U-tube modified reverse flow viscometer 3.0 cSt/S, 180 - 3000 cSt 81-B0116/24: BS U-tube modified reverse flow viscometer 10 cSt/S, 600 - 10000 cSt 81-B0116/25: BS U-tube modified reverse flow viscometer 30 cSt/S, 1800 - 30000 cSt 81-B0116/26: BS U-tube modified reverse flow viscometer 100 cSt/S, 6000 - 100000 cSt 81-B0116/27: BS U-tube modified reverse flow viscometer 300 cSt/S, 18000 - 300000 cSt 81-B0116/3: Cannon-fenske viscometer 0.25 cSt/S, 50 - 250 cSt
