Materiaaltesten Fundering  Laboratory Coring Machine and Bits

Laboratory Coring Machine and Bits

Description

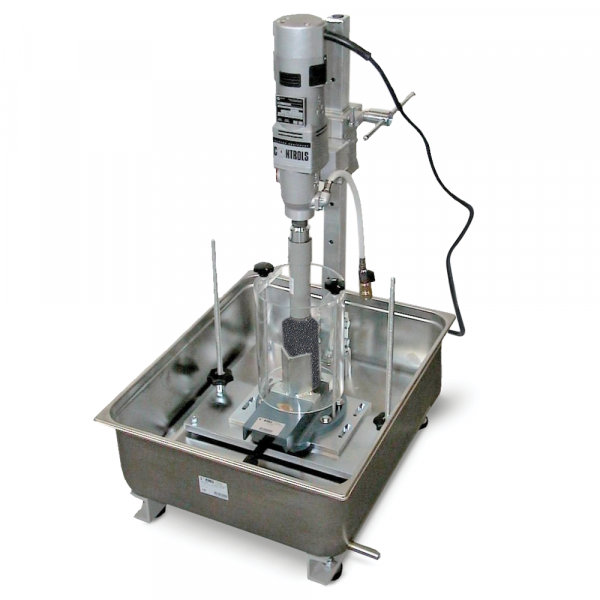

This machine is specifically used in the laboratory for cutting core samples from hard materials such as rock and concrete. A clamp is provided to firmly secure the material during the cutting cycle. The coring area is protected by a transparent cylinder. A special clamping device to prepare rock samples from core pieces is also available. See accessories. Drill bits not included. See accessories.

Label/Normering

Technische specificaties

Technical Specifications

  • Power unit: 1800 W
  • Coring speed: 1485/2720 r.p.m.
  • Coring range: from 8 to 100 mm dia.
  • Dimensions of the base tray assembly: 600x500x200 mm.
  • Weight approx.: 80 kg

Order nummers

32-C0330: Laboratory coring machine, two-speed motor. 230V, 50-60Hz, 1ph. 32-C0330/Z:

Laboratory coring machine, 2-speed, complete with water inlet. 110 V, 60 Hz, 1 ph

Accessoires & toebehoren

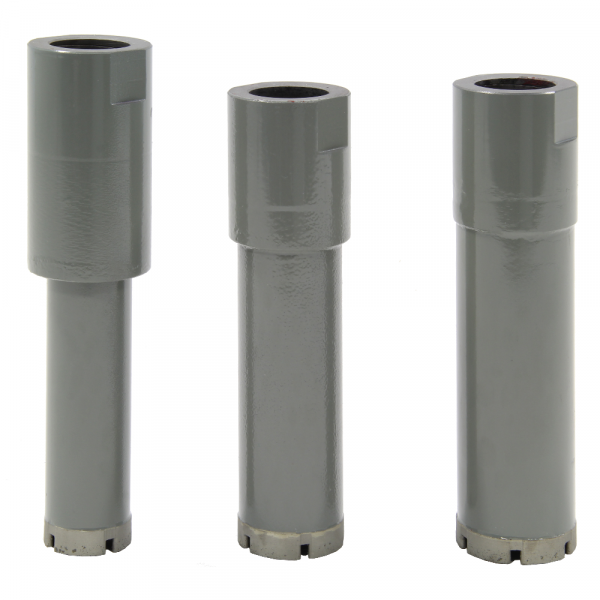

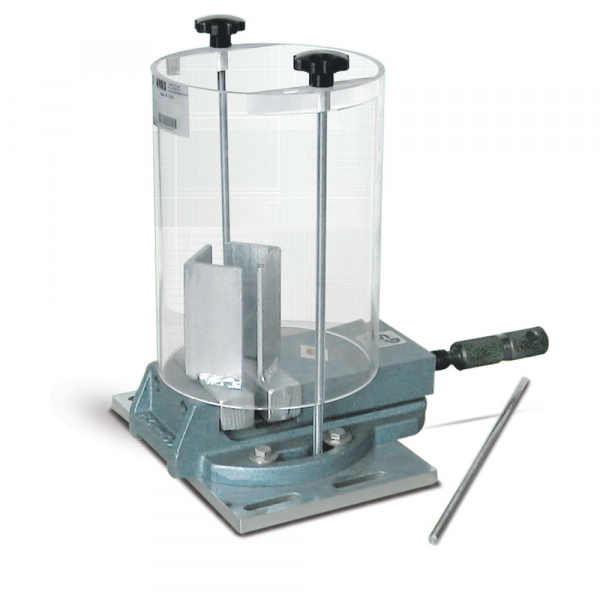

32-C0331: Clamping device for cores up to 100 mm dia. 32-C0342: EX core drill bit 21.46 mm dia 32-C0343: AX core drill bit 30.10 mm dia 32-C0344: Core drill bit 38.1 mm dia 32-C0345: BX core drill bit 42.04 mm dia: 32-C0346: NX core drill bit 54.74 mm dia 32-C0347: Core drill bit, size HQ - 63.5 mm dia
