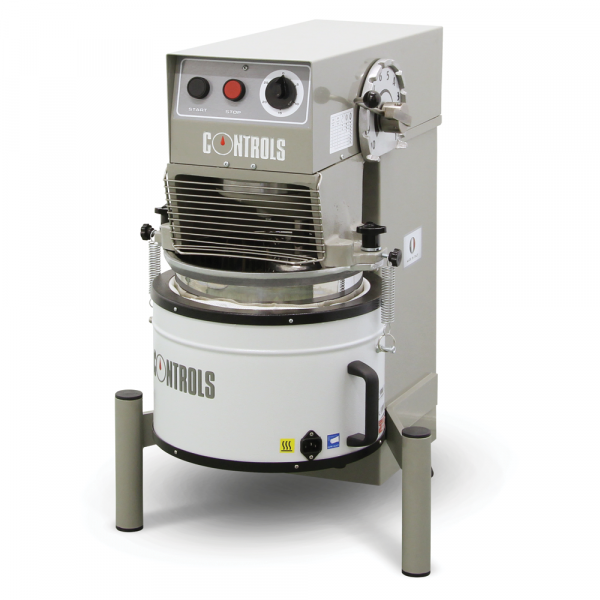

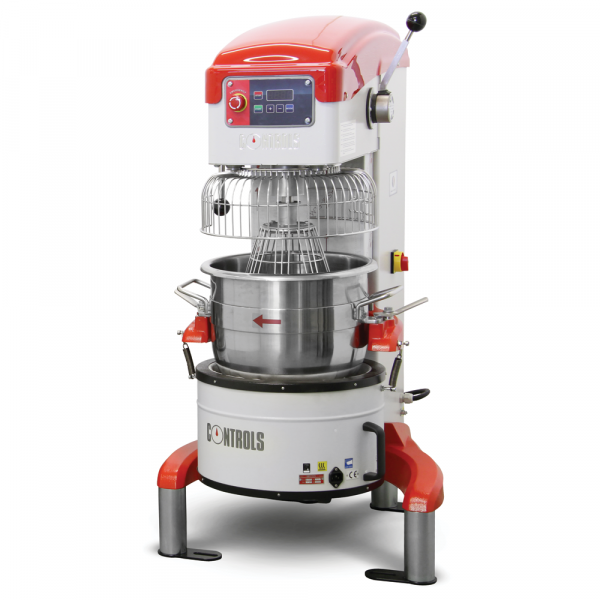

Laboratory Planetary Mixers

Robust table mounted units with planetary mixing action. The bowl and whisk can be easily fit and removed from the mixer. When lifting the transparent cover, a safety switch cuts off the mixer for the operator safety as prescribed by CE. The planetary action ensures a complete and uniform mixing of the materials. For mixing asphalt samples, the mixers have to be fit with the suitable Isomantle heater (see accessories. Supplied complete with whisk.
These mixers can also be used for other application as, for instance, for mixing subbase soil samples.

The planetary mixer can be used as part of your Superpave performance based testing program.

Label/Normering

  EN 12697-35

Technische specificaties

Models16-B0072
16-B0072/Y
16-B0072/Z
16-B0075/B
16-B0075/BZ
Bowl capacity10 liters20 liters
Mixing capacity4 liters8 liters
Planetary speeds (r.p.m.)8 positions
50 to 150
8 positions
50 to 150
Spindle speeds (r.p.m.)10 positions
115 to 400
10 positions
180 to 540
Power370 W736 W
Overall dimensions: mm570x340x585730x610x1180
Weight approx.:42 kg128 kg



Order nummers

  • 16-B0072: Laboratory mixer 10 l cap. 230V/50Hz/1PH
  • 16-B0072/Y: Laboratory mixer 10 liters - 220V/60HZ/1PH

Accessoires & toebehoren

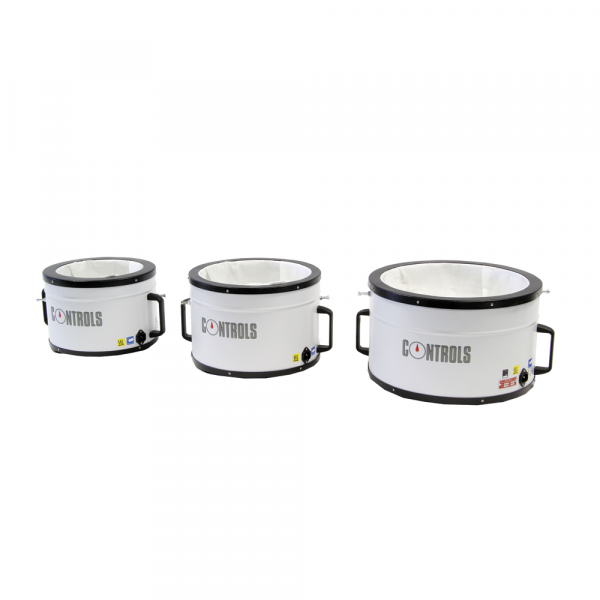

  • 16-B0072/HZ: Heating mantle for 10 l cap. bowl. 110V/60Hz/1Ph.
  • 16-B0072/3: Stainless steel beater for mixer 10 liters cap. model
  • 16-B0072/6: Spare bowl for 16-B72 mixer.
  • 16-B0072/8: Spare whisk for 16-B72 mixer.
  • 16-B0072/9: Stainless steel mixing hook for 16-B0072
  • 16-B0072/Z: Laboratory mixer 10 l cap. 110V/60Hz/1PH
  • 16-B0075/B: Laboratory mixer, 20 l capacity. 380V/50Hz/3Ph.
  • 16-B0075/BZ: Laboratory mixer, 20 l capacity. 220V/60Hz/3Ph.
  • 16-B0075/HM: Heating mantle for 20 l cap. bowl. 230V/50-60Hz/1Ph.
  • 16-B0075/HMZ: Heating mantle for 20 l cap. bowl. 110V/60Hz/1F
  • 16-B0075/1: Spare stainless steel bowl 20 l
  • 16-B0075/3: Stainless steel beater for mixer 20 liters cap. model
  • 16-B0075/6: Spare whisk for 16-B0075 mixer
  • 16-B0075/9: Aluminium mixing hook for 16-B0075
  • 16-B0072/HM: Heating mantle for 10 l cap. bowl. 230V/50-60Hz/1F
