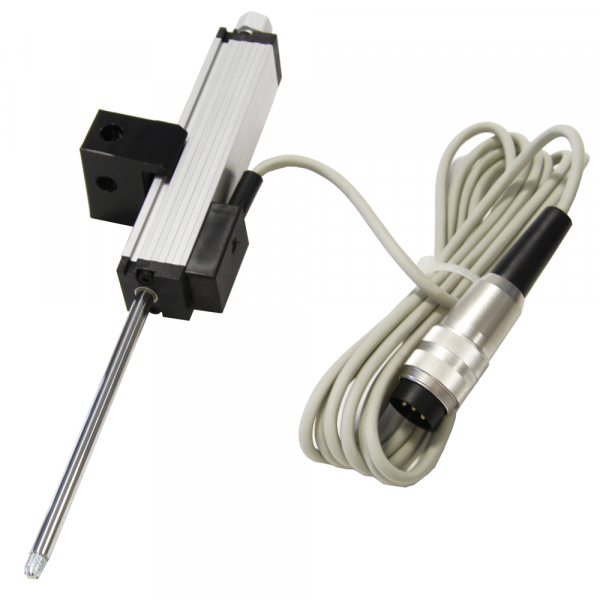

Linear Potentiometric Transducers

Linear Potentiometric Transducers

Linear Potentiometric Transducers

Description

They provide an electrical signal proportional to the linear shaft displacement. The transducers are housed in a incorrodable metal case. The extremely low spring force on spindle and the excellent linearity make these transducers ideal for laboratory use.
Two versions available: Standard and complete with traceable calibration certificate.
LVDT models also available. See related products.

Label/Normering

Technische specificaties

Technical Specifications

  • Input voltage: 10 V DC
  • Output: from 0 to 10 V DC
  • Repeatability: better than 0.002 mm
  • Accuracy: better than 0.002 mm
  • 6 pin connector
  • Weight approx.: 150 to 220 g

Order nummers

82-P0320: Linear potentiometric transducer, 10 mm travel with cable 6 pins connector 82-P0320/C: Linear potentiometric transducer, 10 mm travel with cable 6 pins connector complete with calibration traceable certificate.

Accessoires & toebehoren



: 82-P0322/C: Linear potentiometric transducer, 25 mm travel with cable 6 pins connector complete with calibration traceable certificate. 82-P0324: Linear potentiometric transducer, 50 mm travel with cable 6 pin connector 82-P0324/C: Linear potentiometric transducer, 50 mm travel with cable 6 pins connector complete with calibration traceable certificate. 82-P0326: Linear potentiometric trasducer, 100 mm travel 82-P0326/C: Linear potentiometric transducer, 100 mm travel with cable 6 pins connector complete with calibration traceable certificate. 82-P0322: Linear potentiometric displacement transducer, 25 mm travel with cable 6 pins connector
