Link-LAB Laboratory Connectivity Package - Sample Information Acquisition

Description

Our Link-Lab connectivity package allows PILOT PRO, AUTOMAX PRO, PRO-M and AUTOMAX Multitest to be an integrated part of your lab infrastructure to achieve two main objectives:

  • improve testing efficiency by taking inputs from ancillary devices (balances, calipers, barcode readers) to reduce manual data entry and to eliminate transposing errors during Sample Information Acquisition
  • improve testing transparency by connecting a high-resolution smart camera for Test Video Recording to obtain a verifiable audit trail


The Link-LAB connectivity package is available in two versions:

  • LinK-LAB Local (*) available for systems that operate stand-alone using the controller only without a PC.
  • LinK-LAB Enterprise is available for new and existing systems controlled by PC via Datamanager Software.


Sample Information Acquisition
Both versions allow direct acquisition, according to the device/s connected, of sample weight, dimensions and identification number.
Compatible direct-input devices include: digital balances, calipers, ID barcode readers. See more information on the TECHNICAL SPECIFICATIONS.



(*) Note: caliper and barcode cannot be both connected on the compression machine (Link-LAB Local), but on the PC (Link-Lab Enterprise)

    Direct inputs from ancillary devices (balances, calipers, barcode readers) during sample information acquisition is useful to:

    • achieve tidier operation increasing your testing efficiency
    • reduce manual data entry eliminating transposing errors.

    Label/Normering

    Technische specificaties

    Technical Specifications

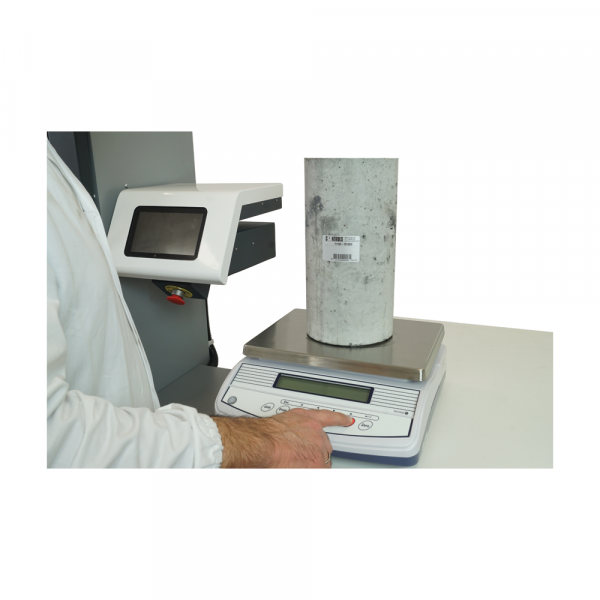

    DIGITAL BALANCE
    To directly acquire in the compression machine (Link-LAB Local) or in the Datamnager PC software (Link-Lab Enterprise) the weigth of the sample. Compatible balances are:

    • 50-D0630/24K 24000 g cap. x 0.1 g resolution, digital balance. 230V/50-60Hz/1ph
    • 50-D0630/24KZ 24000 g cap. x 0.1 g resolution, digital balance. 110V/60Hz/1ph

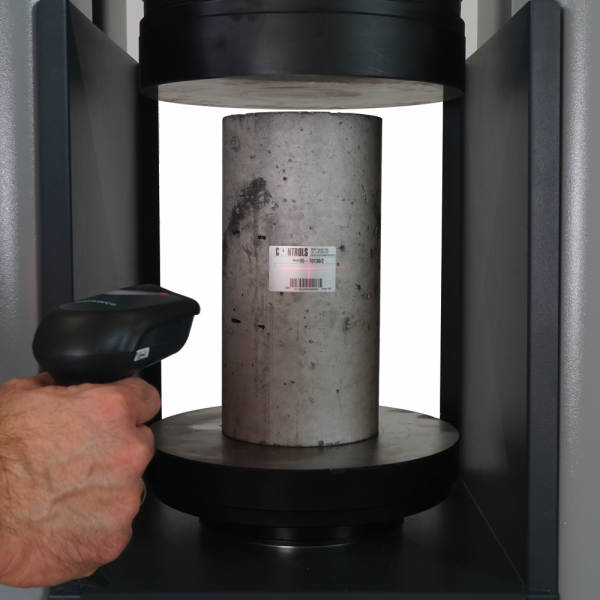

    BARCODE READER*
    To directly acquire in the compression machine (Link-LAB Local) or in the Datamnager PC software (Link-Lab Enterprise) the sample ID of the sample. Compatible model is:

    • D1950/K Barcode reader.

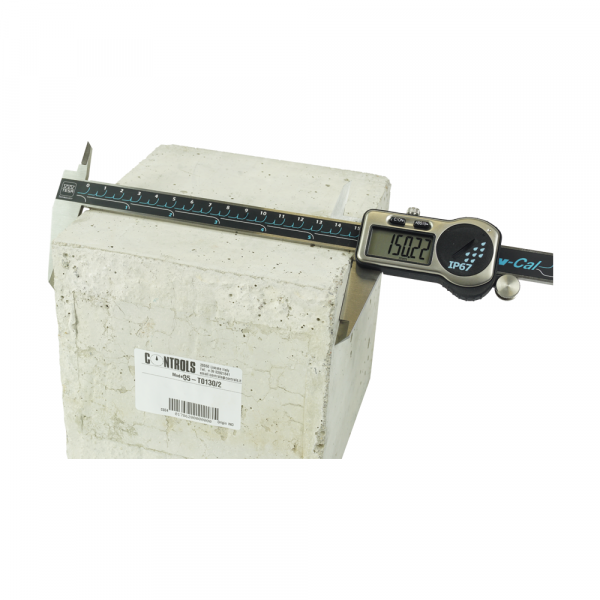

    DIGITAL CALIPER*
    To directly acquire in the compression machine (Link-LAB Local) or in the Datamnager PC software (Link-Lab Enterprise) the dimensions of the sample.
    In case of use of the caliper connected to the PC (Link-Lab Enterprise), it will also be possible to take more than one measurement for each dimension to be entered and the software will automatically calculates the average value.


    Compatible calipers for LINK-LAB Local:

    • 50-D1651/200K Digital caliper 200 mm x 0.01 mm
    • 50-D1651/300K Digital caliper 300 mm x 0.01 mm

    Both models to be completed by suitable connection USB cable model 50-D1651/K2


    Compatible calipers for LINK-LAB Enterprise:

    • 50-D1650/200K Digital caliper 200 mm x 0.01 mm
    • 50-D1650/300K Digital caliper 300 mm x 0.01 mm

    Both models to be completed by suitable bluetooth device model 50-D1650/K1 or USB connection cable model 50-D1650/K2


    * Note: caliper and barcode cannot be both connected on the compression machine (Link-LAB Local), but on the PC (Link-Lab Enterprise)

    Order nummers

    50-KLAB/E:

    LinK-LAB Enterprise laboratory connectivity package for machines controlled by PC via DATAMANAGER Software.

    50-KLAB/L:

    LinK-LAB Local laboratory connectivity package for PILOT and AUTOMAX PRO, PRO-M machines. Note: caliper and barcode cannot be both connected on the compression machine.

    Accessoires & toebehoren



    50-D0630/24K: 24000 g cap. x 0.1 g resolution, digital balance. Compatible with Link-LAB laboratory connectivity package. 230V/50-60Hz/1ph 50-D1650/200K:

    Digital caliper 200 mm x 0.01 mm. Compatible with Link-LAB laboratory connectivity package KLAB/E

    50-D1950/K: Barcode reader. Compatible with Link-LAB laboratory connectivity package. 50-D0630/24KZ: 24000 g cap. x 0.1 g resolution, digital balance. Compatible with Link-LAB loaboratoty connectivity package. 110V/60Hz/1ph 50-D1650/K1:

    Kit for caliper model 50-D1650/xxK including Bluetooth emitter, USB dongle receiver and 1.5m extension cable.Compatible with machines controlled by PC via DATAMANAGER software.

    : 50-D1650/300K:

    Digital caliper 300 mm x 0.01 mm. Compatible with Link-LAB laboratory connectivity package KLAB/E

    : 50-D1650/K2:

    Connection cable for digital caliper 50-D1650/xxxK

    50-D1651/200K:

    Digital caliper 200 mm x 0.01 mm. Compatible with Link-LAB laboratory connectivity package KLAB/L

    50-D1651/K2:

    Connection cable for digital caliper 50-D1651/xxxK

    50-D1651/300K:

    Digital caliper 300 mm x 0.01 mm. Compatible with Link-LAB laboratory connectivity package KLAB/L
