Load Cells - Regular

Description

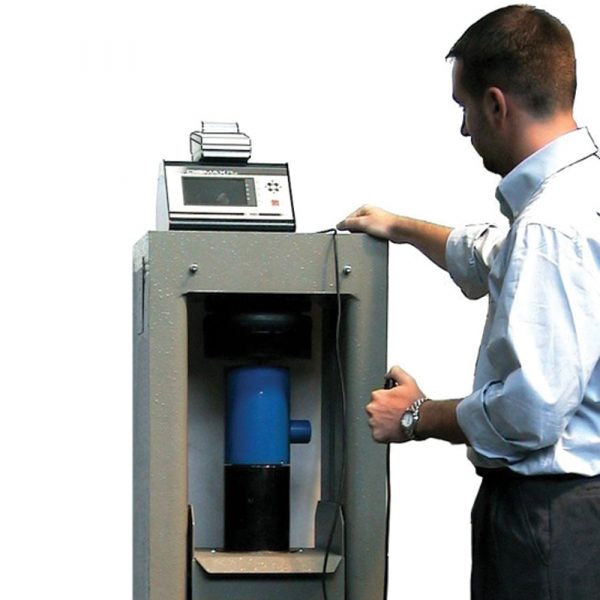

These cells have been designed to be affordable and to meet the stringent requirement of EN, ISO and ASTM Standards, for calibration of compression testing machines. The cells have to be connected to a suitable Digital tester as, for example, our model 82-P0801/E Digimax Plus.

The Load cells connected to the Digital tester, can be supplied complete with Official or Traceable calibration certificate which, as specified, concern either the cell or the digital tester.

  • High accuracy: Class 1 EN ISO 376
  • Stainless steel construction
  • Can be supplied with Official or Traceable calibration certificate

Label/Normering

  EN 12390-4‰ASTM C39‰ASTM E74‰EN ISO 376

Technische specificaties

Technical Specifications

  • Material:  Stainless steel
  • Nominal load:     300, 600 1000, 2000, 3000, 5000 kN
  • Limit load:     150 % of full scale
  • Breaking load:     300 % of full scale
  • Supply voltage:    Maximum 15 V dc
  • Output signal:     2 mV/V
  • Output tolerance:     0,1 % of full scale
  • Zero tolerance:     1 % of full scale
  • Linearity:     0,1 % of full scale
  • Hysteresis:     0,1 % of full scale
  • Repeatability:     0,03 % of full scale
  • Insulation resistance:     ≥ 2000 MΩ
  • Input resistance:     350 – 360 Ω
  • Output resistance:     350 – 353 Ω
  • Creep (30 minutes):     0,1 % of full scale
  • Protection class:     IP 68
  • Operating temperature:     -20 °C / + 70 °C
  • Thermal compensation:     - 10 °C / + 40 °C
  • Temperature deviation full scale:  0,002 % of full scale/°C
  • Temperature deviation zero:     0,003 % of full scale/°C
  • Repeatability 0°-120°-240° (b):     ≤ ± 0,145 %
  • Interpolation (fc):     ≤ ± 0,090 %
  • Reversibility (u):     ≤ ± 0,240 %
  • Zero (f0):     ≤ ± 0,030 % of full scale






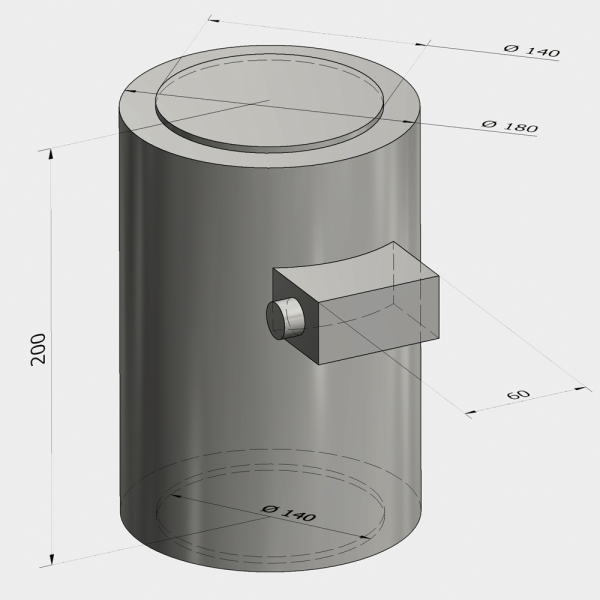

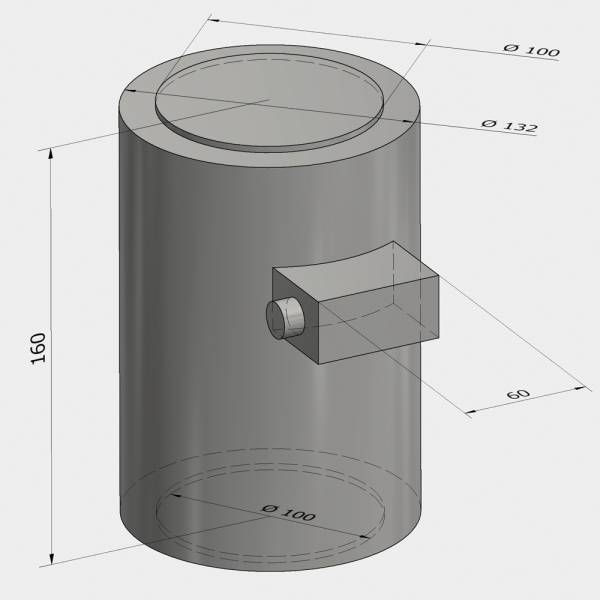

Order nummers

82-E0100/30G:

Load cell 300 kN class 1 to EN ISO 376. Supplied complete with carryIng case. Calibration certificate to be ordered separately when purchased with digital readout unit

82-E0100/60G:

Load cell 600 kN class 1 to EN ISO 376. Supplied complete with carriyng case. Calibration certificate to be ordered separately when purchased with digital readout unit

Accessoires & toebehoren



82-E0100/ACC4: Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >1000 to 5000 kN. 82-E0100/TRC: Traceable calibration certificate for the load cell connected to suitable digital tester for force verification. Compatible with 5 kN up to 5000 kN capacity load cells. 82-E0100/ACC2: Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >10 to 600 kN 82-E0100/ACC3: Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >600 to 1000 kN. 82-E0100/100G:

Load cell 1000 kN class 1 to EN ISO 376. Supplied complete with carriyng case. Calibration certificate to be ordered separately when purchased with digital readout unit

82-E0100/200G:

Load cell 2000 kN class 1 to EN ISO 376. Supplied complete with carriyng case. Calibration certificate to be ordered separately when purchased with digital readout unit

82-E0100/300G:

Load cell 3000 kN class 1 to EN ISO 376. Supplied complete with carriyng case. Calibration certificate to be ordered separately when purchased with digital readout unit

82-E0100/500G:

Load cell 5000 kN class 1 to EN ISO 376. Supplied complete with carriyng case. Calibration certificate to be ordered separately when purchased with digital readout unit
