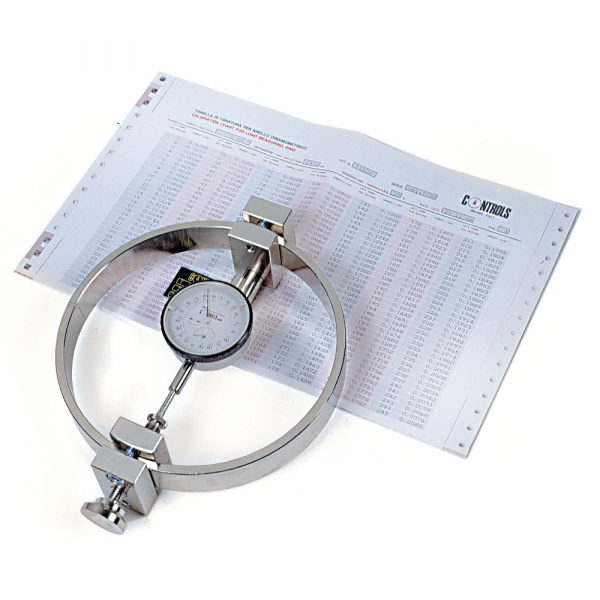

Load rings are used for load measurement in soil mechanics test such as, shear, triaxial, uncondiend, CBR ....
All model are made from special alloy steel and they are supplied analogue dial gauge 0.001 mm and calibration chart.
All models can be fitted with T1000/F (see accessories), a special stem brake unit which maintains the maximum reading after the failure of the specimen
Load ring can be directly connected to the adapter fit on the crosshead of triaxial frames. Using the 28-WF1049 connector (see accessories) they can be adapted to our complete range of triaxial cells.
28-WF1049: Connector with conical seat for load rings 82-T1000/F: Stem brake for load rings 82-T1000/2M: Load measuring ring 2 kN capacity with analogue dial gauge 0,001 mm 82-T1000/5M: Load measuring ring 5 kN capacity with analogue dial gauge 0,001 mm 27-WF1002/ST: 2000N load ring complete with adapters for shear machine 27-WF1003/ST: 5000N load ring complete with adapters for shear machine
