LVDT Transducers

LVDT Transducers

Description

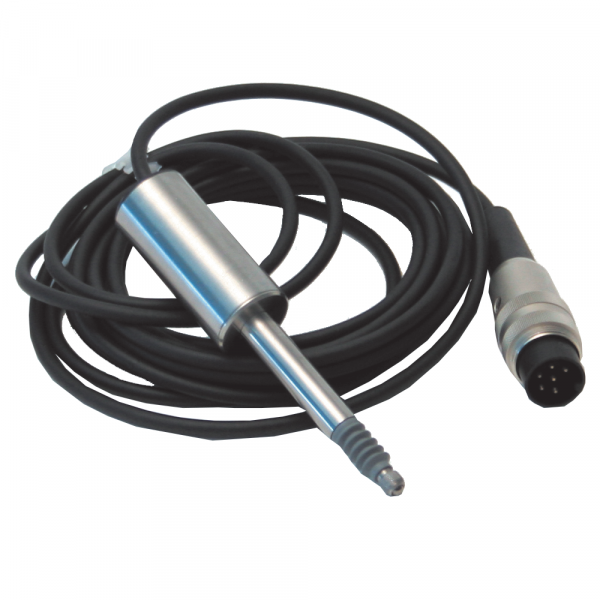

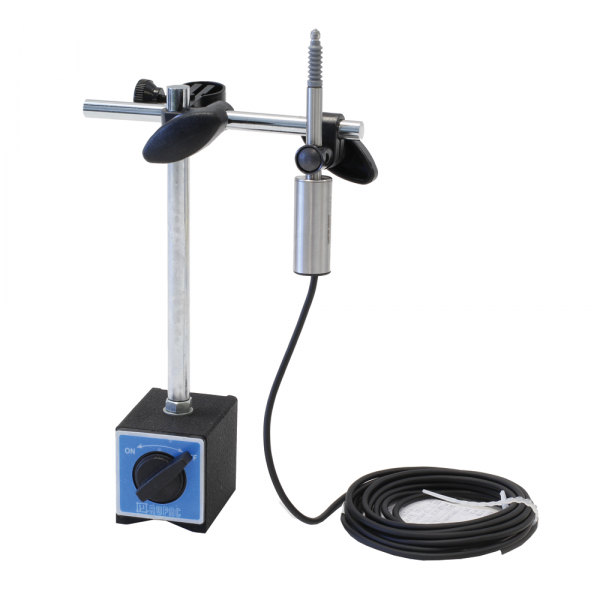

These high-precision displacement transducers are controlled by the position of a magnetic core which provides an output of voltage that is proportional to the position of the transducer stem.
It is also possible to receive the transducer complete with a traceable certificate of calibration, when purchased along with a suitable data acquisistion system.


Linear potentiometric models also available. See related products.

Label/Normering

Technische specificaties

Technical Specifications

  • Input voltage: 10 V DC
  • Resolution: infinite
  • Linearity: 0.50%
  • Connector: 6 pin

Order nummers

82-P0331/C: High precision displacement transducer LVDT type 10 mm travel 82-P0331/A: High precision displacement transducer LVDT type 2 mm travel

Accessoires & toebehoren



: 82-P0331/B: High precision displacement transducer LVDT type 5 mm travel 82-P0331/G: High precision displacement transducer LVDT type, 20 mm travel.
