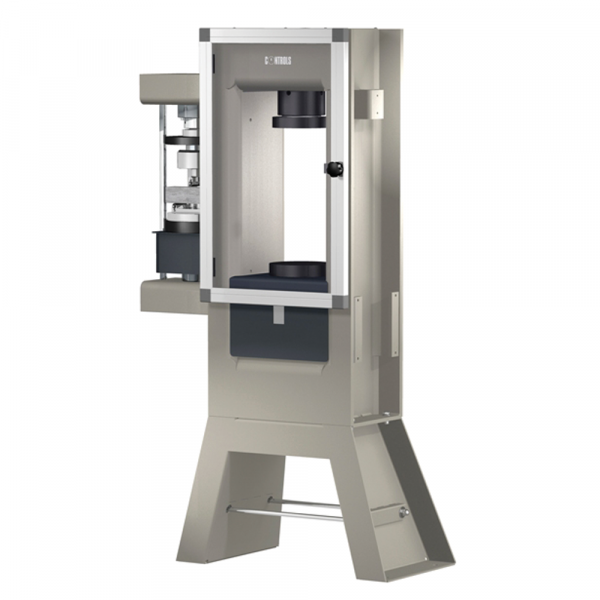

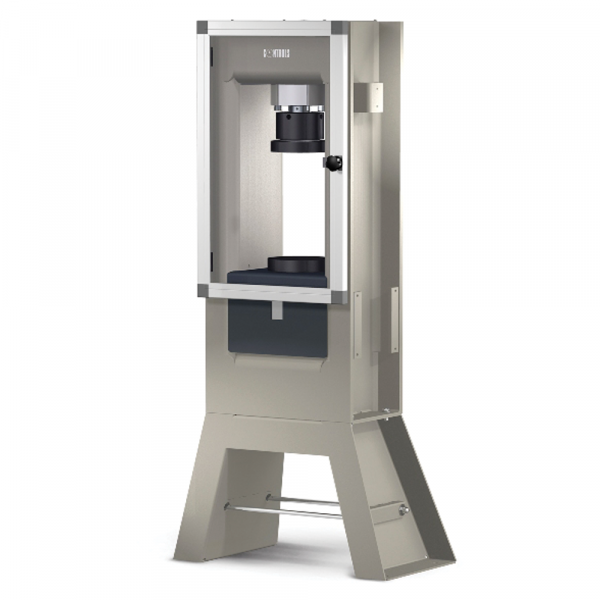

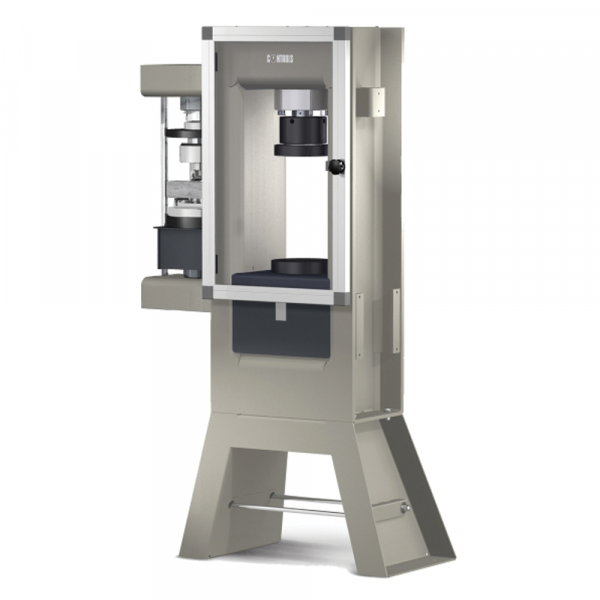

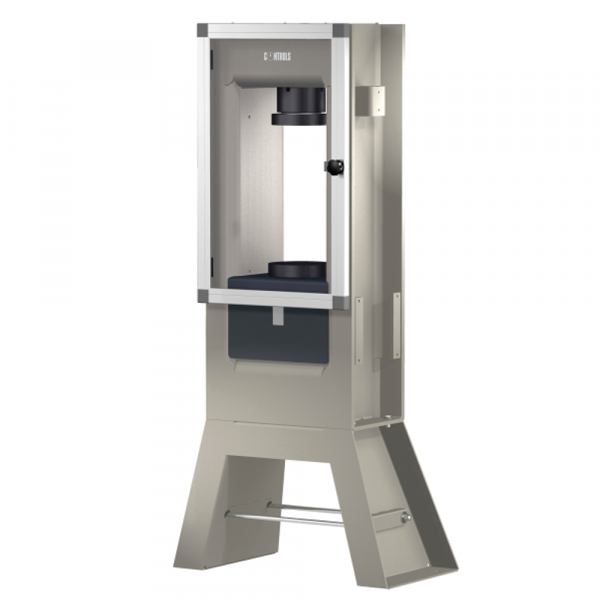

MULTIPURPOSE 500-600 and 500-600/15 kN Compression-Flexure Cement Testing Frames

Description

These Multipurpose compression / flexural testers have been designed for various applications in which a limited maximum load is request­ed, together with a large testing space such as, for instance, com­pressive strength on lightweight concrete and soil-cement speci­mens using, if necessary, the suitable accessories. It is also ideal for testing high strength cement and refractory specimens. The large testing space is ideal for performing, with the suitable accessory, splitting tests and flexural tests on concrete specimens.

Two versions are available:


single compression station, 500 kN or 600 kN cap.:



​for compression tests on low strength specimens.


double station model, 600/15 kN or 500/15 kN cap.:
extends the possible applications to flexural tests on cement and com­pression tests on low strength specimens.






Frames and compression platens

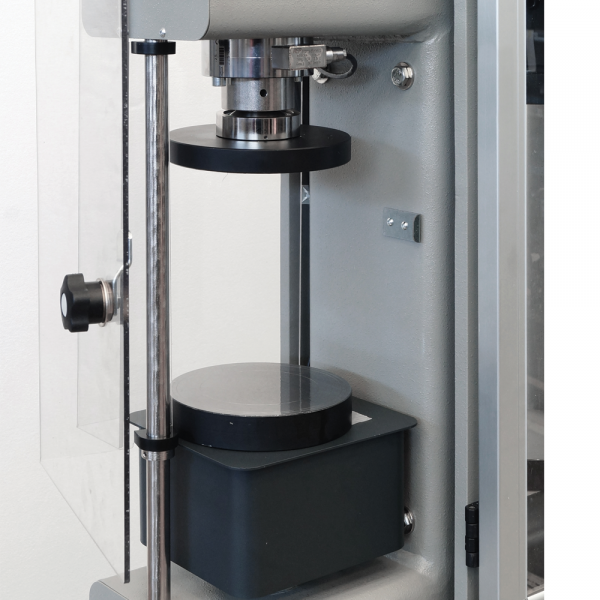

High rigidity: solid one piece steel frame. Spherical seat allows free alignment at the initial contact with the specimen. For compression platens see Technical Specifications. Pedestal not included. See accessories.




Machine/Frames precision Class. EN 12390-4, ASTM E74
All frames, when connected to a suitable control console, are supplied calibrated to Class 1 starting from 10% of load scale as specified in the Technical Specifications table. By special calibration procedures, it is possible to extend Class 1 load measurement accuracy (see Upgrading Option and Technical Specifications).

Safety features
All models includes: max. pressure valve to avoid machine overloading; piston travel limit switch; front door and rear transparent fragment guard on the compression station. Fragment guard for flexure station is available as optional (see Accessories).

Connection to control consoles
The 15 kN load piston of the double station models, when connected to PILOT and AUTOMAX automatic Control Systems, requires a pressure regulator which, however, is not necessary for connection to Automax E Modulus, MCC and Advantest 9 consoles. See Upgrading options.
  • High rigidity: solid one piece steel frame
  • Universal compression testers, in practice, suitable to house various accessories for testing cement, mortar, resins and other materials
  • Special calibration starting from few kilonewtons available on request (see upgrading options) when connected to suitable control unit
  • large testing space
  • Best quality/price ratio

Label/Normering

  ASTM C109‰EN 196-1‰ASTM C348‰ASTM C349

Technische specificaties

Order nummers

50-C92Z20:

600/15 kN cap. double chamber hydraulic frame for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 230 V, 50-60 Hz, 1 Ph

50-C92Z40:

500/15 kN cap. double chamber hydraulic frame for testing cement, mortar, resin, hydraulically boundmixtures and other materials. 110 V, 60 Hz, 1 Ph

Accessoires & toebehoren



50-C0050/HRD2:

Supply of the compression machine with dia.165mm platens complete with traceable certificate of hardness of testing platens surfaces (upper and bottom platen certification included). Available only for ordering with compression machine.

50-C0050/HRD3:

Supply of the compression machine with dia.220 mm platens complete with traceable certificate of hardness of testing platens surfaces (upper and bottom platen certification included). Available only for ordering with compression machine.

65-L0050/HRD:

Supply of the machine cement machines/frames L28xxx complete with traceable certificate of hardness of testing platens surfaces (one upper and one bottom platen certification included). Available only for ordering with machine.

50-A19/B:

Base for frames and testing machines model 50-A12xxx, 50-C13xxx and 50-C92xxx

65-L1400/X5: Hydraulic pressure regulator for 15kN frames (bothsingle and double chamber models) connected to PILOT and AUTOMAX control unit.50-C93Z20:

600/15 kN cap. double chamber hydraulic frame for testing cement, mortar, resin, hydraulically boundmixtures and other materials. 110 V, 60 Hz, 1 Ph

50-C92Z00:

600 kN cap. hydraulic frame for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 230 V, 50-60 Hz, 1 Ph.

50-C92Z10:

500 kN cap. hydraulic frame for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 110 V, 60 Hz, 1 Ph.

50-C93Z00:

600 kN cap. hydraulic frame for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 230 V, 50-60 Hz, 1 Ph.

65-L1000/20: Distance piece 165 mm dia. x 20 mm height. 65-L1000/30: Distance piece 165 mm dia. x 30 mm height. 65-L1000/40: Distance piece 165 mm dia. x 40 mm height. 65-L1000/68: Distance piece 165 mm dia. x 68 mm height. 50-C99/P: Rigid safety guard for the 15kN chamber of the multipurpose machines
