On-Sample Transducers

Description

In conventional triaxial testing the stiffness of a soil specimen is determined  by external measurement of displacement.  Such measurement are subjected to errors caused by deflections of loading system and bedding of the porous stone onto the ends of the specimen.

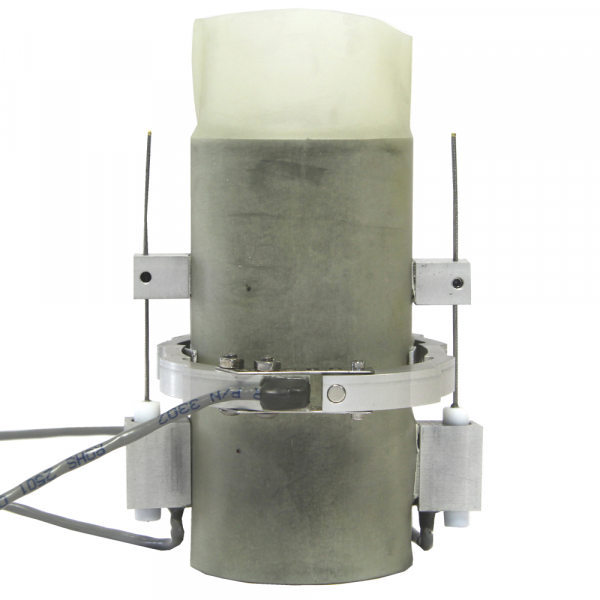

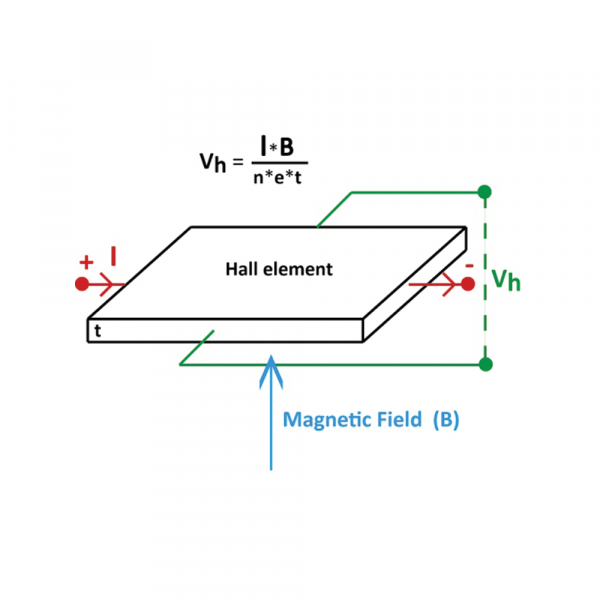

Local axial and radial strain transducers avoid these problems by providing the opportunity to measure  the deformation, with high accuracy, directly on the triaxial test specimen.

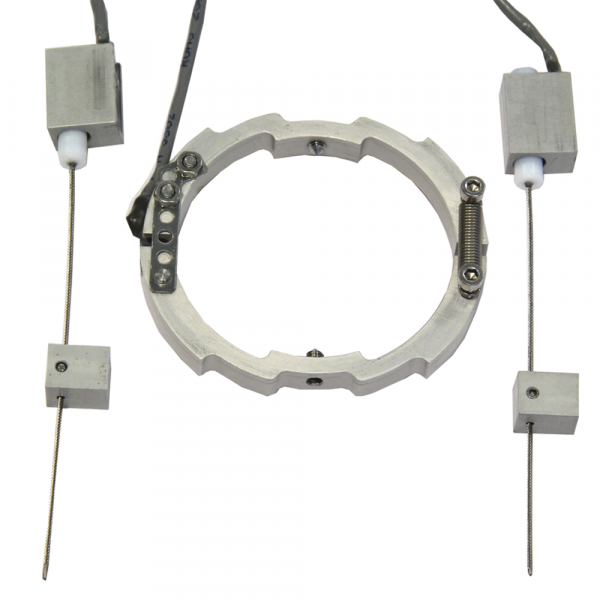

Lacal strain transducers are supplied in a kit which includes one radial and two axial transducers suitable for 38mm, 50mm,70mm, 100mm and 150mm specimen diameters. Mounting accessories such as radial belt, mounting brackets and jig are also inclueded.

  • Suitable for specimen diameters from 38 to 150mm
  • Maximum working pressure of 3400 kPa
  • Light and compact construction suitable for Banded triaxial cells
  • Axial and radial deformation measured directly on the triaxial test specimen
  • Suitable  for static and dynamic data acquisition by triaxail systems

Label/Normering

Technische specificaties

Technical Specifications

  • Input voltage: 10 V
  • Output voltage (ratiometric): ± 350mV (radial); ±950mV (axial)
  • Accuracy (average): better than ±0.5% FRO
  • Temperature coefficient:  ± 0.02/FRO/°C
  • Weight:
  • dia.(mm)radial(g)axial(g)
    38289
    503410
    704611
    1006512
    1509514



Order nummers

30-WF4039/KM: Mini-On sample transducer kit for 38mm dia. samples with two linear and one radial miniature transducers, radial belt, axial fixing pads and plugs. Suitable for static tests (for instance AUTOTRIAX). 30-WF4039/KN: Mini-On sample transducer kit for 38mm dia. samples with two linear and one radial miniature transducers, radial belt, axial fixing pads and plugs. Suitable for dynamic tests (for instance DYNATRIAX).

Accessoires & toebehoren



28-WF4070/ADV: Advanced upgrading kit for triaxial cell mod. WF4070 allowing use of mini on sample transducers and bender elements. 28-WF4100/ADV: Advanced upgrading kit for triaxial cell mod. WF4100 allowing use of mini on sample transducers and bender elements. 28-WF4150/ADV: Advanced upgrading kit for triaxial cell mod. WF4150 allowing use of mini on sample transducers and bender elements. 30-WF4059/KM: Mini-On sample transducer kit for 50mm dia. samples with two linear and one radial miniature transducers, radial belt, axial fixing pads and plugs. Suitable for static tests (for instance AUTOTRIAX). 30-WF4059/KN: Mini-On sample transducer kit for 50mm dia. samples with two linear and one radial miniature transducers, radial belt, axial fixing pads and plugs. Suitable for dynamic tests (for instance DYNATRIAX). 30-WF4079/KM: Mini-On sample transducer kit for 70mm dia. samples with two linear and one radial miniature transducers, radial belt, axial fixing pads and plugs. Suitable for static tests (for instance AUTOTRIAX). 30-WF4079/KN: Mini-On sample transducer kit for 70mm dia. samples with two linear and one radial miniature transducers, radial belt, axial fixing pads and plugs. Suitable for dynamic tests (for instance DYNATRIAX). 30-WF4109/KM: Mini-On sample transducer kit for 100mm dia. samples with two linear and one radial miniature transducers, radial belt, axial fixing pads and plugs. Suitable for static tests (for instance AUTOTRIAX). 30-WF4109/KN: Mini-On sample transducer kit for 100mm dia. samples with two linear and one radial miniature transducers, radial belt, axial fixing pads and plugs. Suitable for dynamic tests (for instance DYNATRIAX). 30-WF4159/KM: Mini-On sample transducer kit for 150mm dia. samples with two linear and one radial miniature transducers, radial belt, axial fixing pads and plugs. Suitable for static tests (for instance AUTOTRIAX). 30-WF4159/KN: Mini-On sample transducer kit for 150mm dia. samples with two linear and one radial miniature transducers, radial belt, axial fixing pads and plugs. Suitable for dynamic tests (for instance DYNATRIAX).
