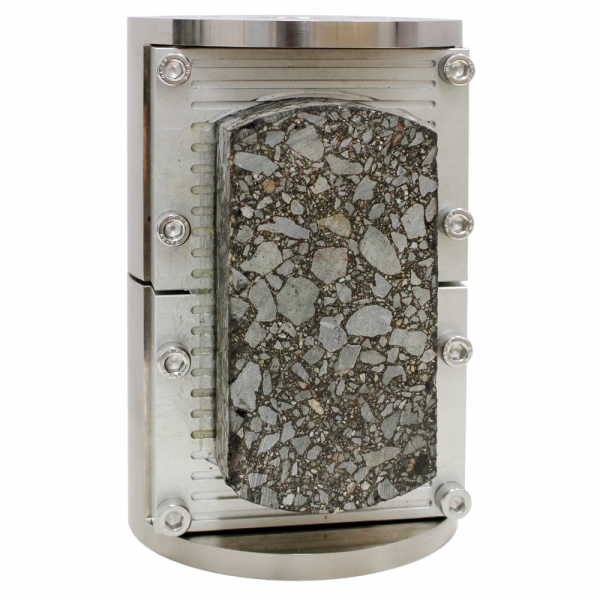

Overlay Test for UTM, AsphaltQube, AMPT Pro and AMPTQube

Overlay Test for UTM, AsphaltQube, AMPT Pro and AMPTQube


To perform Overlay test.

  • Increases the functionality of UTM systems, AMPT Pro, AMPTQube and AsphaltQube
  • Advanced design for high stiffness and extremely low compliance
  • High precision linear guides to ensure perfect axial loading alignment and no lateral rotation
  • IPC Global's UTS software allows quick and easy set-up and running of tests
  • Overlay test investigates properties required for predicting both crack propagation and crack initiation
  • Available with on-jig and on-specimen transducers
  • Specimen preparation kit allows for quick and easy gluing and set-up
  • Overlay Test Specimen Preparation Kit built-in gluing plates, straight edge and sample templates, accurate sample cutting, easy alignment and gluing onto the test platens


Tex-248-F‰ ASTM WK26816

Technische specificaties

Technical Specifications


  • Overlay test kit: 12 kg
  • Specimen preparation kit: 8 kg
  • Specimen platen: 1 kg

Order nummers

79-PV70680: Overlay Test Jig :

Accessoires & toebehoren


79-PV70681: Overlay Testing specimen Plate (one piece) 79-PV70682: Overlay Specimen Preparation Kit - Triple SpecimenGlue Jig 79-PV70685: Overlay Test Single Glue Jig Spacer Bar 4.2mm
