Pavement Core Drilling Machine

Description

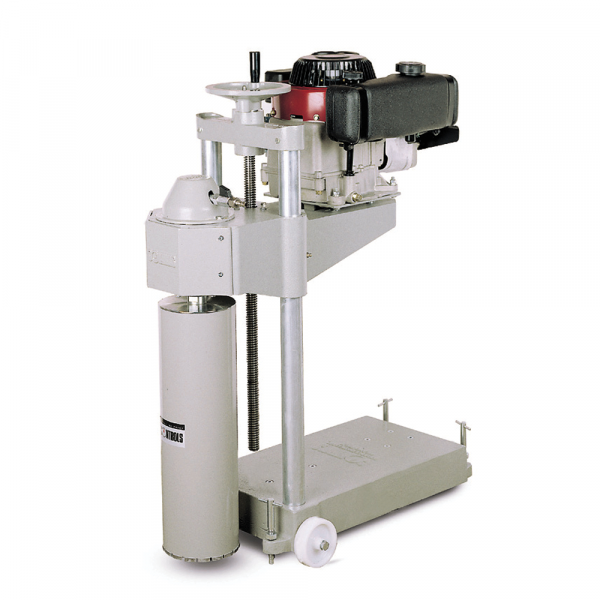

This simple but rugged machine is a portable unit, which can be easily carried in a pick-up truck. The 2 powerful 4 HP and 11.5 HP engines are more than adequate for all types of work and materials. The relatively heavy weight (110 kg) contribute to the machine stability during coring. The core bits we propose have fixed standard coupling assuring the best alignment, fast and easy fitting and disassembling. See accessories.

  • Coring range: up to 200 mm dia. depending upon the type of asphalt
  • Screw feed
  • 4 stabilizing feet
  • Weight approx.: 110 kg

The Pavement core drilling machine can be used as part of your Superpave performance based testing program.

  • 4 Hp and 11.5 HP high quality petrol engines
  • Coring range up to 200 mm dia.
  • Robust, compact and portable
  • Vertical screw feet

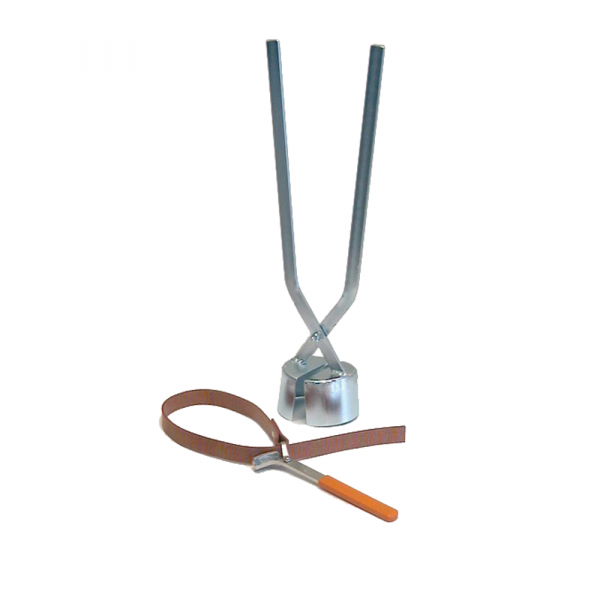

  • Complete with strap wrench and spanner
  • Wide range of coring bits with fixed standard coupling available

Label/Normering

Technische specificaties

Order nummers

83-B0202/B: Pavement core drilling machine, 4 Hp petrol engine 83-B0202/C: Pavement core drilling machine, 11.5 HP petrol engine.

Accessoires & toebehoren

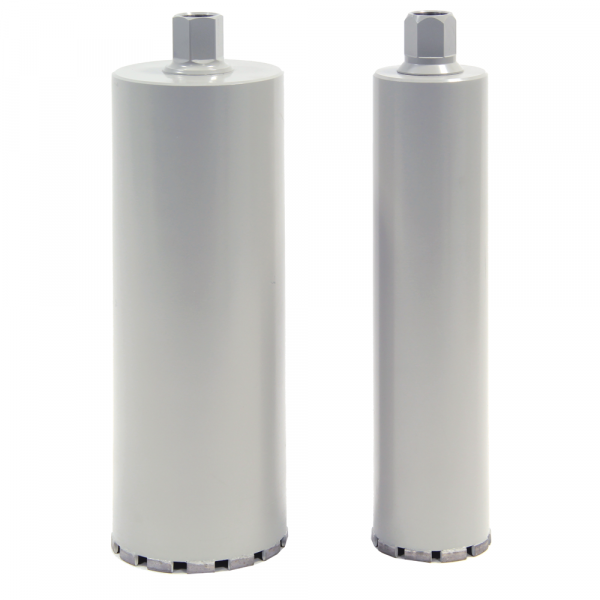

83-C0324: Coring bit for 200 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W. 83-C0310/2: Core extractor dia 50 mm 83-C0311/2: Core extractor dia 75 mm 83-C0312/2: Core extractor dia 100 mm 83-C0313/2: Core extractor dia 150 mm: 83-C0320: Coring bit for 50 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W. 83-C0321: Coring bit for 75 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W. 83-C0322: Coring bit for 100 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W. 83-C0323: Coring bit for 150 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W.
