Pocket Penetrometers

Description

Designed for making field classification of cohesive soils in terms of consistency, shear strength and approximate unconfined compressive strength.
Two models available:

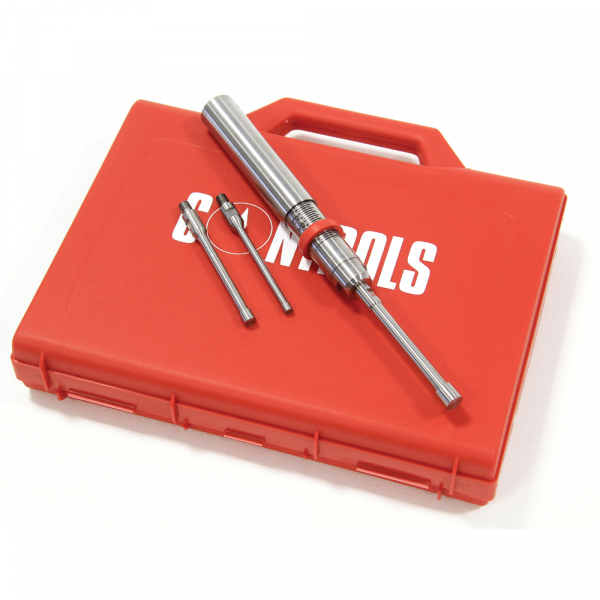

  • 16-T0163 Heavy duty model,

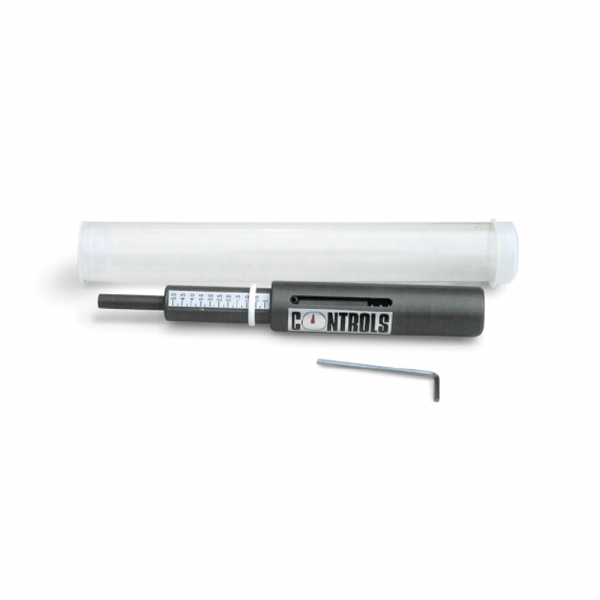

  • 16-T0171 standard model,

Label/Normering

Technische specificaties

Technical Specifications

16-T0163



  • Stainless steel construction.
  • Tip Diameters: 4.5 mm dia. for very hard soil, 6.35 mm for medium and soft soil, 8.98 mm for soft soil.
  • Measuring range: 0 to 1000 kPa
  • Dimensions (assembled): 210 mm lenght x 20 mm dia. approx.
  • Weight approx.: 0.5 kg

16-T0171



  • measuring range 0 to 500 kPa
  • Dimensions: 20 mm dia. x 173 mm length
  • Weight approx.: 0.5 kg

Order nummers

16-T0163: Heavy duty pocket penetrometer 16-T0171: Pocket penetrometer, range 0-5 MN/m2
