Verwarmen Waterbaden  RC 5 basic

RC 5 basic

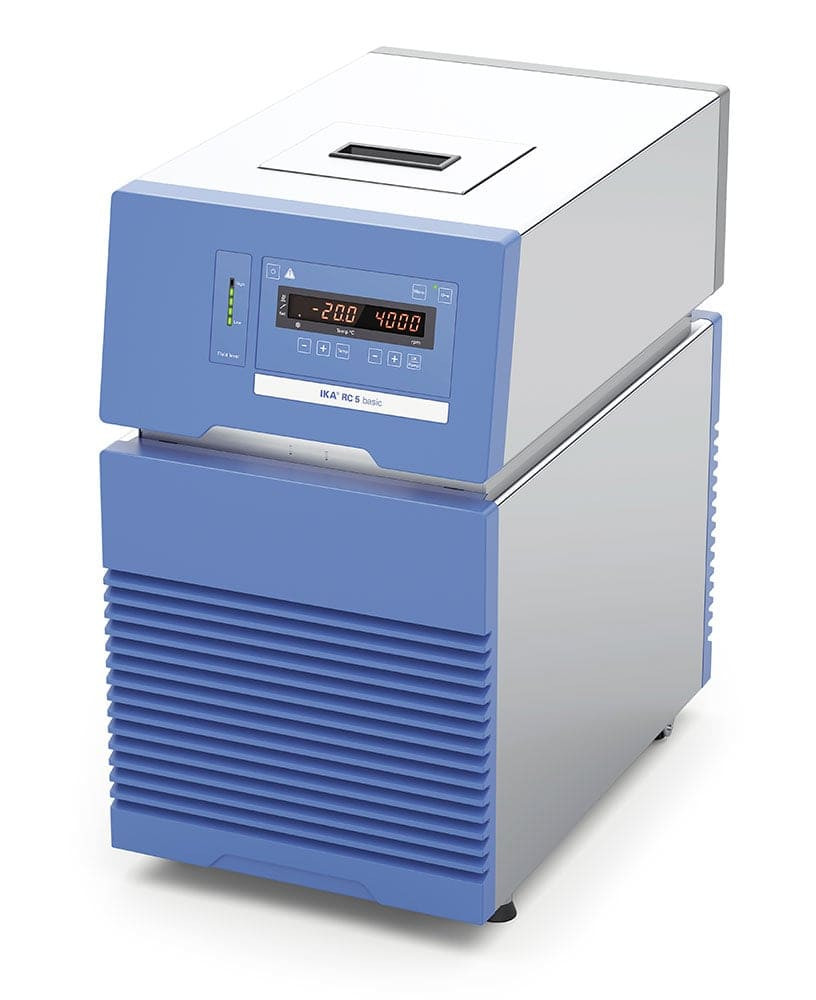

IKA - RC 5 basic

Powerful recirculating chiller, designed for external cooling applications up to -30°C.

The energy-efficient chiller is operated with an eco-friendly refrigerant and reaches a high power density. This results in a comparatively small working space in the lab.

The speed-controlled PEEK pump allows an indirect, continuous adjustment of the maximum pressure and flow rate. Due to its excellent temperature stability of about ± 0,1 K, the RC 5 can handle even sophisticated applications. The isolated, high-quality 7l bath has an integrated hopper and drain valve, ensuring a safe and clean handling of the thermofluid. A hose can be connected to empty the bath in order to avoid direct contact with the thermofluid. The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter.

Key Features

Speed-controlled refrigeration system with 1400 W cooling capacity (@20°C)
Natural thermofluid R290
Designed for cooling applications up to -30°C - RT
Extended operating temperature range until 80°C
Excellent temperature stability of about ± 0,1K (@-10°C)
Speed-controlled pump made of PEEK: (0,6 bar; 31l/min)
Digital level indicator

Interfaces:

RS 232 and USB

Scope of delivery

RC 5 basic

Hose olive NW 8 (2 pcs.)

Hose olive NW 12 (2 pcs.)

USB Cable - USB A to Micro-B, 2 m

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=4181000&iLang=1&iCountry=840&filename=DataSheet_RC_5_basic.pdf https://www.ika.com/ika/pdf/flyer-catalog/20190902_Thermostat_flyer_6pages_210x280mm_IWK_EN_web_single.pdf https://www.ika.com/ika/pdf/flyer-catalog/2021_Green_IKA_Chillers_Flyer_IWW.pdf https://www.ika.com/ika/pdf/flyer-catalog/202508_Flyer_R290-Cooling-fluid_IWS_EN_web.pdf

Technische specificaties

Appliance type: Recirculating chiller
Cooling agent: R290
Cooling agent quantity: 90 g
Cooling agent pressure max.: 21 bar
Cooling capacity (@20°C): 1400 W
Cooling capacity (@10°C): 1200 W
Cooling capacity (@0°C): 950 W
Cooling capacity (@-10°C): 650 W
Cooling capacity (@-20°C): 450 W
Cooling capacity (@-30°C): 200 W
Working temperature: -30 - room temp. °C
Operating temperature min.: -30 °C
Operating temperature max. (with external heating): 80 °C
Temperature display: yes
Temperature control: PID
Working temperature sensor: PT 100
Working temperature display: LED
Temperature stability DIN 12876: ±0.2 K
Display resolution: 0.1 K
Warning function optical: yes
Warning function acoustic: yes
Warning function excess temperature: yes
Sub-level protection: yes
Filling volume: 5.0 - 7.0 l
Pump type: Pressure- / suction pump
Pump capacity adjustable: yes
Pump pressure max. (0 liters discharge flow): 0.61 bar
Pressure pump (suction side) (0 liter flow): 0.45 bar
Flow rate max. (0 bar back pressure): 31 l/min
Pump connection: M16x1
Calibration option: yes
Technical data complies with the standard: DIN 12876
Permissible ON time: 100 %
Noise level: 61 dB(A)
Dimensions (W x H x D): 310 x 546 x 490 mm
Weight: 37.5 kg
Permissible ambient temperature: 5 - 32 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: Micro-USB
Voltage: 100 - 115 V
Frequency: 50/60 Hz
Power input: 1100 W
