Research Ductilometer for Force Ductility Test on Standard and Modified Bitumen - DUCTIMETER


The ductility test is performed for determining the ductility of bituminous materials by measuring the elongation before breaking when two ends of briquette specimens are pulled apart at a specified speed and temperature.

Water bath

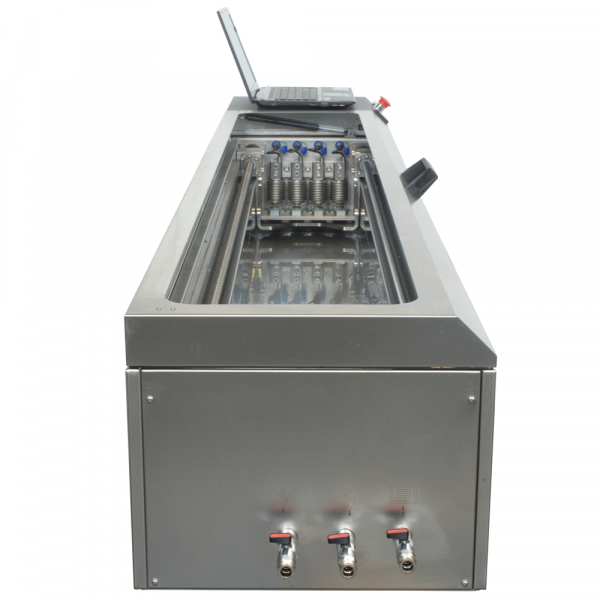

Insulated stainless steel water bath with a heating system located over the entire base surface and a stainless steel cooling coil (for connection to water mains or chiller) distributed over the three side walls assuring temperature uniformity without water turbulence inside the bath. All parts in contact with water are made of stainless steel.

Carriage displacement
Double-screew rods and mobile carriage enable test speeds from 3 to 200 mm/min. The system also permits the fast return of the carriage at the end of the test (500 mm/min) to reduce dead time and increase productivity. The carriage return is automatic, manual intervention is not required.

Temperature control

  • A closed-loop PID system assures constant temperature from -10 to +60°C, with a water chiller (see accessories)
  • Stainless steel cooling coil
  • Plate-type base heaters give better temperature uniformity
  • The thermoregulation system is based on control of the heater (which increases the temperature of the bath) and the control of the flow rate of the cooling coil by an electro-valve. This important feature assures control of the temperature within strict limits and permits the use of suitable standard water chillers.

Load and elongation measurement

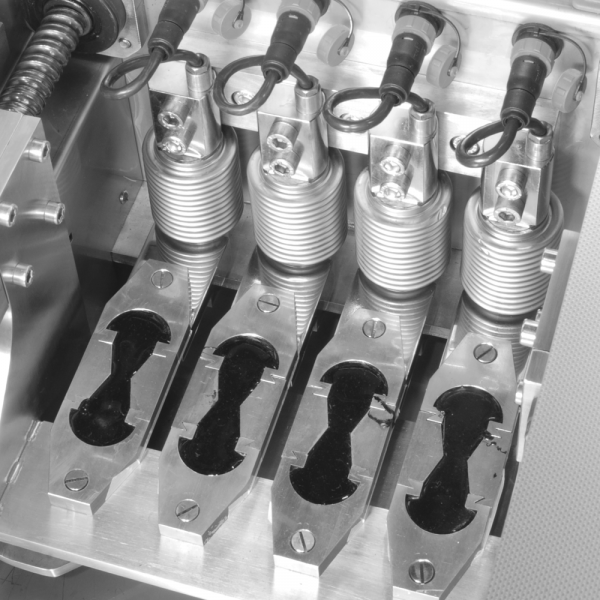

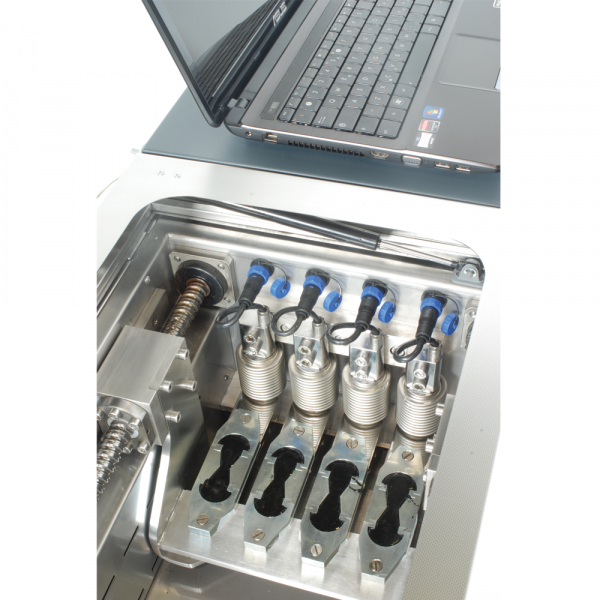

Automatic measurement of the elongation by an encoder. Includes a system for measuring forces up to 2000 N (4 x 500 N) with load cells (see accessories).

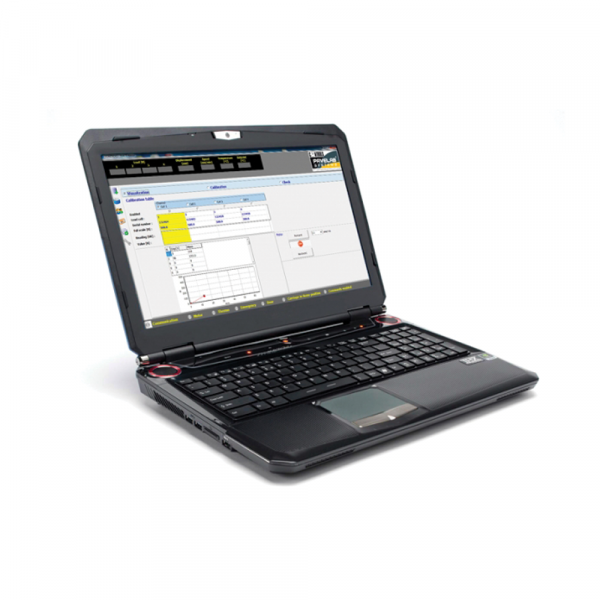

Testing software

  • Selection of test parameters (speed, temperature etx.) by PC. The test temperature, however, can be set in advance using the control panel of the machine.
  • Test control by PC: Start-Stop-Carriage return
  • Specimen failure recognition

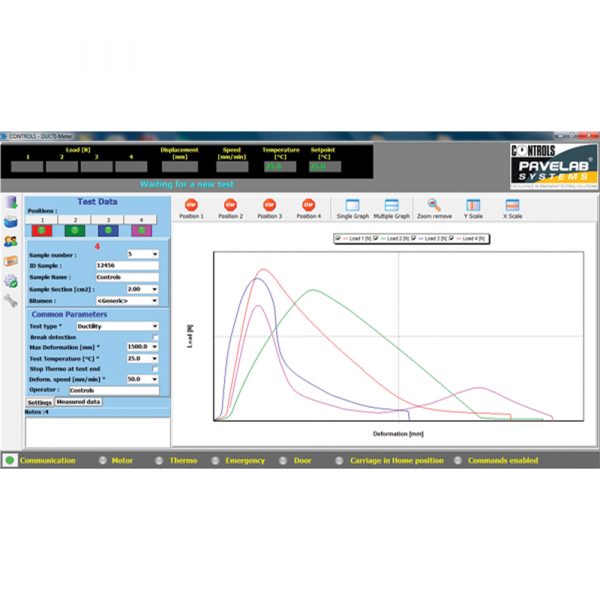

  • Real-time display of load/elongation graph with advanced visualization options (single or multi-graph)
  • Data acquisition and processing conforming to Standards
  • Function for multiple test data comparison
  • Storage of test data

Machine control
By PC (not included)

Water cooling
This model is proposed without a chiller for use with a suitable cooling system that could be available in the laboratory. It is important, however, that this unit is capable of delivering a flow rate of 6 litres/min, 1 bar, at the minimum temperature of 2°C.

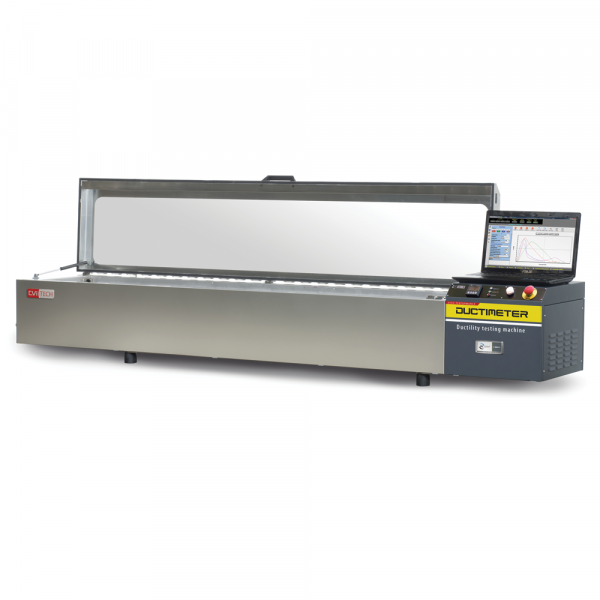

See-through cover
Essential for better temperature control of the bath.

  • 4 tension line (briquette capacity) x 1500 mm
  • Easy and free access to the large testing space
  • Double drive screw rod
  • Closed-loop PID temperature control system
  • Stainless steel insulated water bath
  • Exclusive in-built thermoregulation system compensating the control, optimized by the connection to chiller (optional)
  • High carriage return speed of 500 mm/min for greater productivity
  • Adjustable speed range from 1 to 200 mm
  • PC-controlled using dedicated software
  • Includes a system for measuring forces up to 4x500 N with load cells
  • Temperature range from -10 to 60°C
  • Elongation measurement by optical system
  • Real-time load and displacement graphics via PC
  • Includes a system for measuring forces up to 2000 N (4 x 500 N)
  • Extensive use of stainless steel for frame, cover and tank


  ASTM D113‰EN 13398‰AASHTO T51‰ASTM D6084‰AASHTO T300‰EN 13589‰EN 13703

Technische specificaties

Technical Specifications

Conforms to Standards  EN 13398
EN 13589
EN 13703
ASTM D6084
Machine control byPC with dedicated sofware (PC not included)
Thermostatically controlled
water bath temperature
From -10 to 60°C with water chiller.
PID closed-loop control
Temperature control systemHeater and cooling coil for connection to cold water or water chiller
StructureExtensive use of stainless steel for frame, tank, cooling coil and cover
Briquettes capacity4
Max carriage travel1500 mm
Testing speedAdjustable from 1 to 200 mm/min
Elongation measurement byOptical system
Max. load and tension load measurement2000 N (4 x 500 N) by load cells
Tension load/elongation graphReal-time graphs by PC
Carriage return speed500 mm/min
Power rating (approx.)1200 W
Transparent coverIncluded
Overall dimensions(l x d x h) 2434 x 412 x 385 mm
Weight approx.100 kg


Order nummers


DUCTIMETER, Research Ductility testing machine, 4 briquettes capacity, 1500 mm carriage travel. 230V/50-60/Hz/1ph


DUCTIMETER, Research Ductility testing machine, 4 briquettes capacity, 1500 mm carriage travel. 110V/60/Hz/1ph

Accessoires & toebehoren

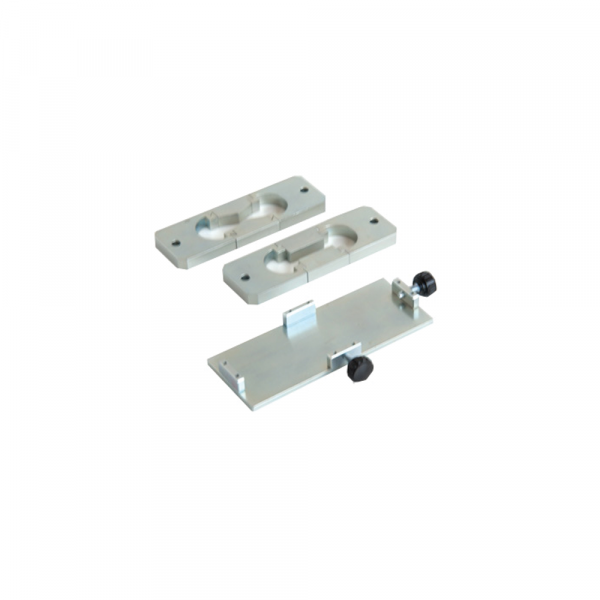

81-B0141: Ductility mould to EN 13398 81-B0141/A: Briquette mould conforming to ASTM D6084 and AASHTO T300 81-B0141/B: Briquette mould conforming to ASTM D113 and AASHTO T51 81-B0141/E: Briquette mould conforming to EN 13589 81-B0142: Ductility mould plate: 81-PV10010: Support base for ductility machines 81-PV10020: High precision strain gauge load cell 0-500 N cap. 81-PV1012:

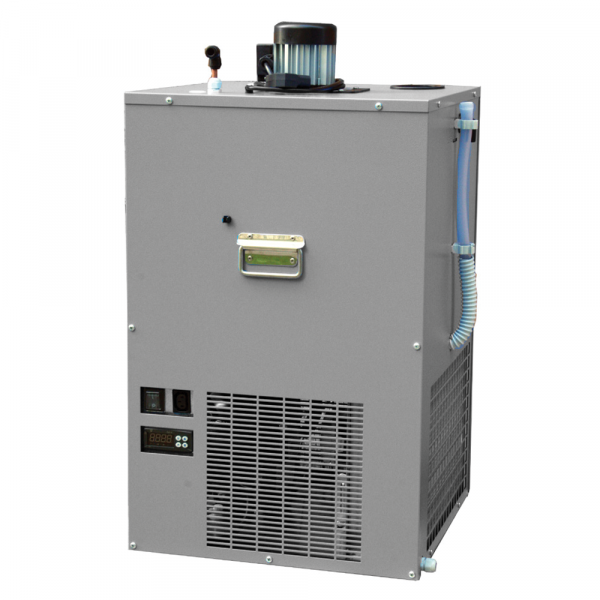

Water chiller, flow rate 6 l/min at 1 bar, -20°C min. temperature - 3000 W cooling capacity. 230V/50-60Hz/1ph

81-PV1014: Water chiller, flow rate 6 l/min at 1 bar, -20°C min. temperature - 3000 W cooling capacity. 110V/60Hz/1Ph
