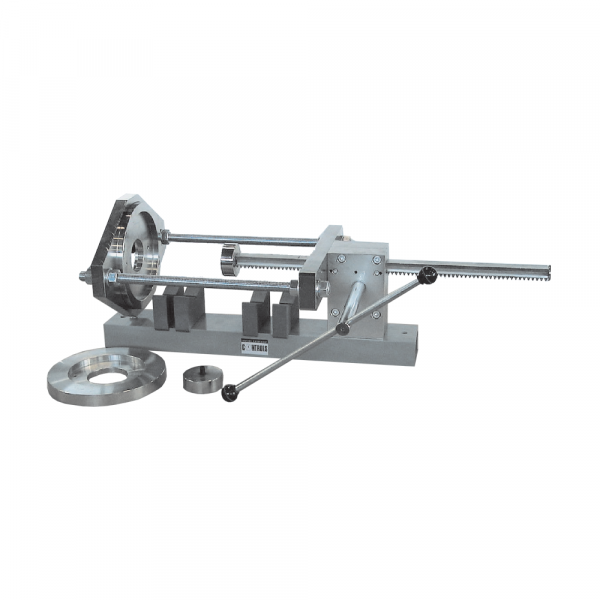

Rock Sample Extruder

Rock Sample Extruder

Description

Used to extrude the rock sample from its jacket thus avoiding to empty the confining fluid. It consists of a steel frame with a rack and pinion mechanism. Supplied without adapters. See the following table



Adapter set code

For specimen size

For use with cell

Weight approx. [kg]

32-D0577/1

AX

32-D0553/HC

1.7

32-D0577/2

1.5 in.

32-D0554/HC

1.7

32-D0577/3

BX

32-D0555/HC

1.5

32-D0577/4

NX

32-D0556/HC

1.5

32-D0577/5

HQ

32-D0557/HC

1.5

Label/Normering

Technische specificaties

Order nummers

32-D0577/B: Specimen extruder for Hoek cells series 45-D055x. Requires adaptors series 45-D0577/x :

Accessoires & toebehoren



32-D0577/1: Extruder adapter set for specimen AX 32-D0577/2: Extruder adaptor set for specimen 1,5 inch 32-D0577/3: Extruder adaptor set for specimen bx 32-D0577/4: Extruder adaptor set for specimen nx
