Rolling Thin Film Ovens (RTFO)

Description

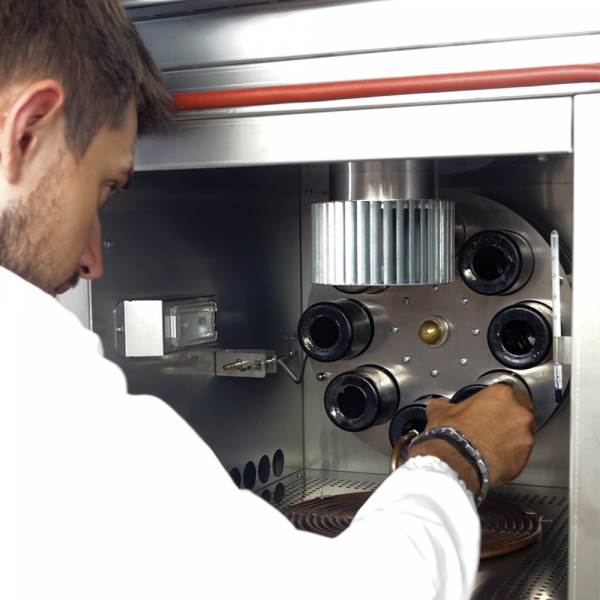

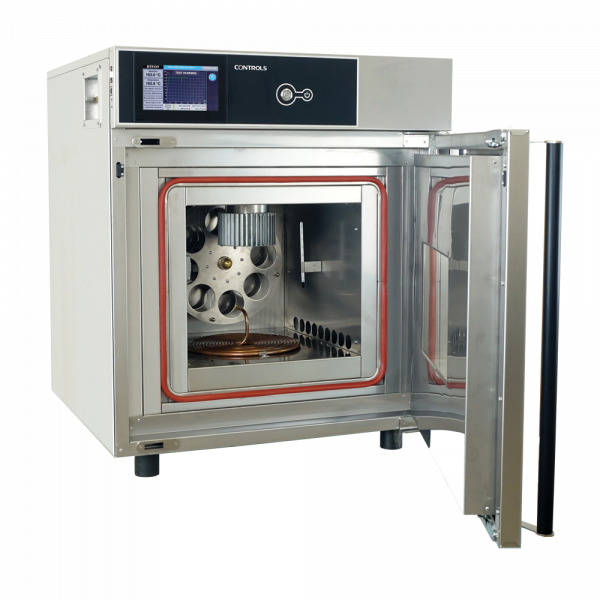

These ovens are used for measuring the effect of heat and air on a moving film of semi-solid bituminous materials. The internal chamber is made from stainless steel, insulated with fiberglass or similar, with an external frame made from engine-turned stainless steel and a door with a centrally located window.
Special attention has been given to the safety features which conform to CE requirements.

The Rolling thin film ovens (RTFOT) can be used as part of your Superpave performance based testing program.

The oven is supplied complete with flow meter, ASTM 13C thermometer and 8 heat resistant glass containers (64 m high x 140 mm diameter).
The oven must be connected to a compressed air source supplying 2 bar minimum presure. If not available in the laboratory we recommend to order Diaphragm pump (see accessories).

Version available:
  • 81-PV1632, PV1633 and PV1634 conforming to ASTM/AASHTO standards
  • 81-PV1642 conforming to EN standard

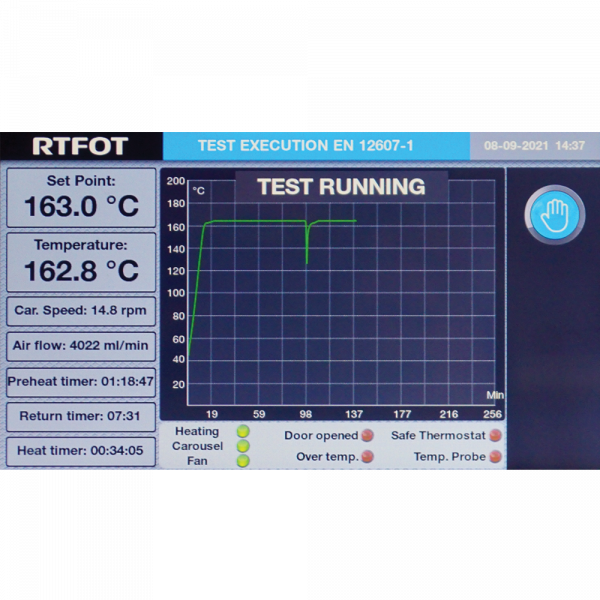

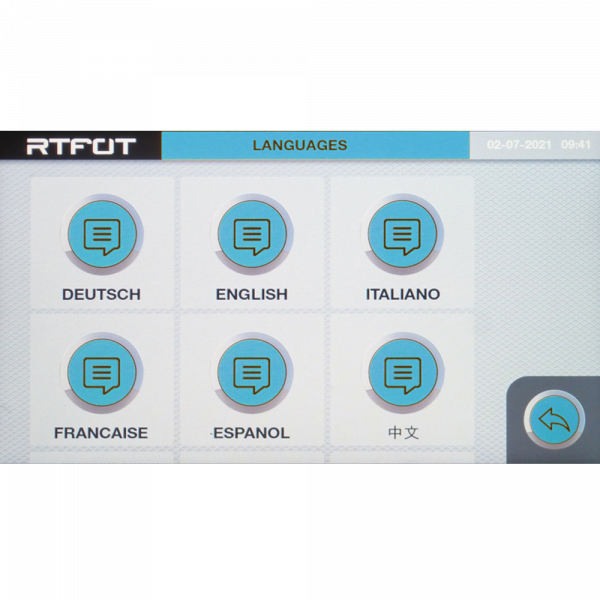

  • Capacitive touch-screen display with 7” color control panel, including temperature/time graph, timer function, visual warnings and digital air flow regulator
  • Full conformity to temperature specifications (time to reach target temperature after switch on, target temperature adjustment after samples insertion) from the Standards
  • Able to maintain a temperature of 163°C ± 0.5°C, or any other user defined test temperature between ambient and 200°C
  • Safety features: Automatic over-temperature switch, door switch, internal light, alarm for door open with fan still running; magneto-thermic switch
  • Integral stainless steel structure, internal and external
  • Door with double-glazed window
  • Door locking system allowing easy opening also with busy hands

Label/Normering

  ASTM D2872‰AASHTO T240‰EN 12607-1

Technische specificaties

Technical Specifications

Construction: full stainless steel, interior and exterior
Temperature range: from +50 to +200°C (default 163°C) ± 0.5°C
Air flow: adjustable from 0.1 to 10’000 ml/min

External connections:

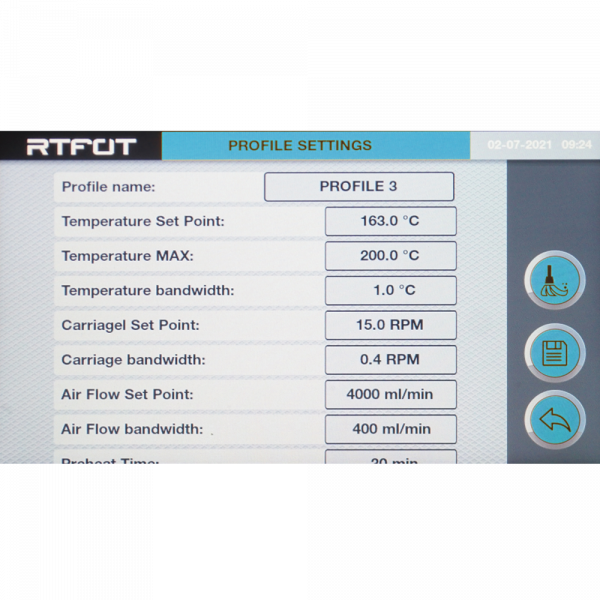

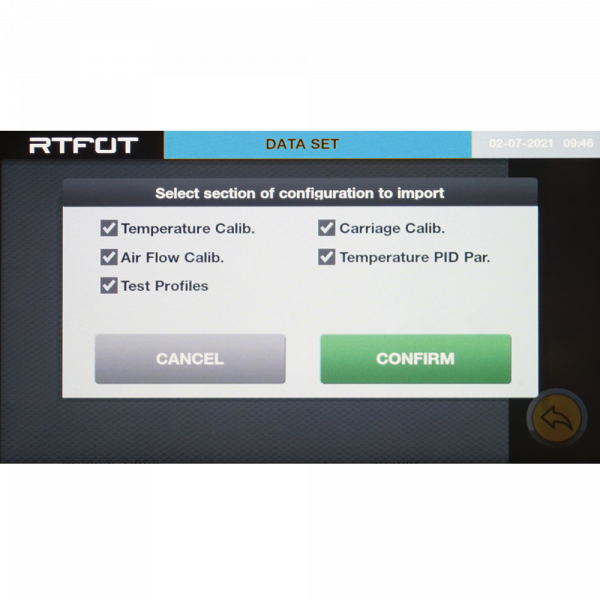

- USB connection for USB pendrive connection, allowing to upload or save test profiles (including temperature, flow meter and carousel speed setpoints and PID settings)
- Serial connection allowing to remotely upload and download test profiles from PC

Safety features:
- Automatic over-temperature switch
- Door switch
- Internal light
- Alarm for door open
- Test phase completed alarm
- Magnetothermic switch

Power: 3000 W
External dimensions: 750 x 750 x 900 mm (w x d x h)
Weight: approx. 110 kg



Order nummers

81-PV1642:

RFTOT Asphalt oven for rolling thin film oven test. EN version, complete with ASTM 13C thermometers and 8 glass container. 230V/50Hz/1ph

81-PV1632:

RFTOT Asphalt oven for rolling thin film oven test. ASTM version, complete with ASTM 13C thermometers and 8 glass container. 230V/50Hz/1ph

Accessoires & toebehoren

82-PV0160/10MF: Loss on heat thermometer IP 47C ASTM 13C, range +155 to +170°C, mercury free with alternative liquid 81-PV0161/10: Spare glass container 81-PV0161/12: Diaphragm pump for 81-PV16XX RTOFT oven 110-230V/50-60Hz/1Ph 81-PV0161/13: Scraper for RTFOT bottle 81-PV0161/14: Metal rack for holding/cooling RTFOT bottles81-PV1633:

RFTOT Asphalt oven for rolling thin film oven test. ASTM version, complete with ASTM 13C thermometers and 8 glass container. 220V/60Hz/1ph

81-PV1634:

RFTOT Asphalt oven for rolling thin film oven test. ASTM version, complete with ASTM 13C thermometers and 8 glass container. 110V/60Hz/1ph

: : 81-PV0161/15: RTFOT bottle tong : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
