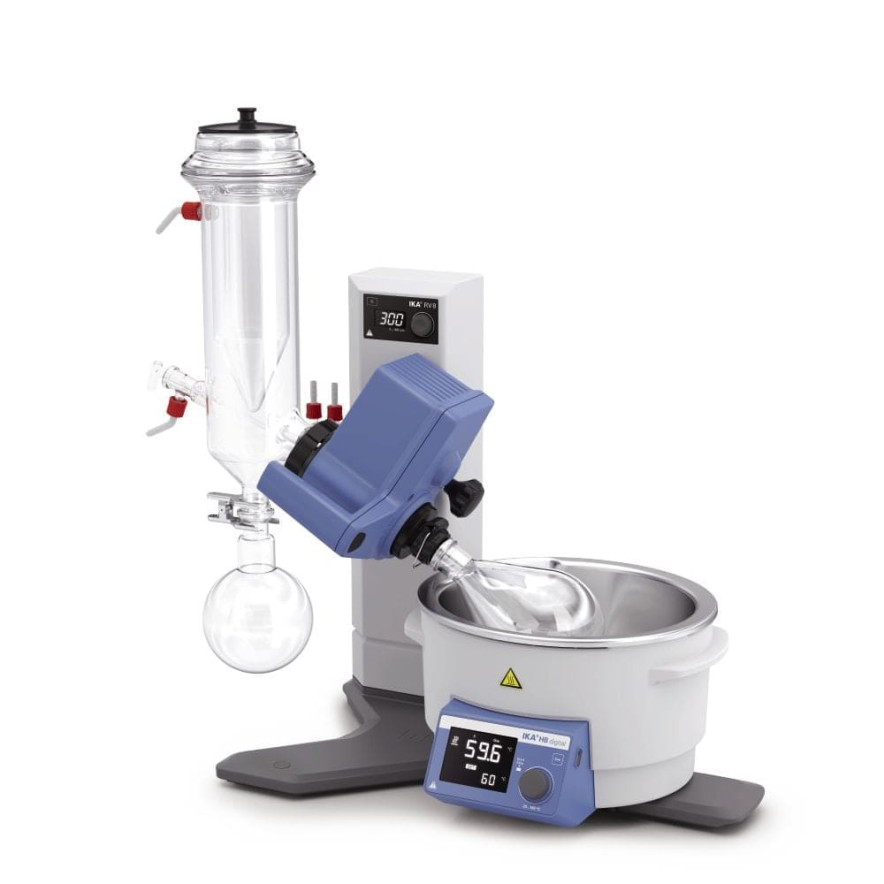

RV 8 with Dry Ice Condenser

IKA - RV 8 with Dry Ice Condenser

The IKA Rotary Evaporator range gets a new family member - the RV 8. This new distilling system completes the existing series by adding a functional basic model. The manual lift, with ambidextrous design, allows for precise positioning of the glassware. Digital displays for rotation speed and heating bath temperature allow for optimal control of all distilling processes. New clamp mechanism to simplify the changing of evaporation flasks.

Manual lift with integrated safety “lift-out-function“
Water/oil heating bath with integrated ergonomic carrying handles
Key-button with locking function for the heating bath temperature
Adjustable immersion angle
Digital displays for rotation speed and heating bath temperature
Single-hand operation; ambidextrous design
Speed range 5 - 300 rpm
Additional user safety through reduced 24 V power requirements within the unit
Compatible with the complete range of IKA RV 10 glassware
New clamp mechanism

Package description: With heating bath HB digital and RV 10.4 Dry Ice Condenser

Scope of delivery

RV 8 FLEX

RV 10.4 Dry Ice Condenser

RV 10.102 Receiving flask (KS 35/20, 500 ml)

Label/Normering

Downloads

https://www.ika.com/ika/datasheet/download?iProduct=10000403&iLang=1&iCountry=840&filename=DataSheet_RV_8_with_Dry_Ice_Condenser.pdf https://www.ika.com/ika/pdf/flyer-catalog/20221116_RV_flyer_210x280mm_IWS_screen.pdf https://www.ika.com/ika/pdf/flyer-catalog/202308_RV_flyer_210x280mm_IWW_web.pdf https://www.ika.com/ika/pdf/flyer-catalog/RV_success story_Campari_Academy_A4_EN_websingle.pdf https://www.ika.com/ika/pdf/flyer-catalog/20250318_Flyer_RV setup solutions_210x280mm_IWS_EN_websingle.pdf https://www.ika.com/ika/pdf/flyer-catalog/20240909_Lab Essentials_Botanical_A4_Flyer_IWS_websingle.pdf

Technische specificaties

Type of cooling: Dry ice condenser
Cooling surface: 620 cm2
Motor principle: DC
Speed range: 5 - 300 rpm
Speed tolerance set rotation speed < 100rpm: ±1 rpm
Speed tolerance set rotation speed > 100rpm: ±1 %
Lift: manual
Stroke: 120 mm
Heating temperature range: room temp. - 180 °C
Heat output: 1300 W
Set temperature resolution: 1 K
Filling volume max.: 3 l
Dimensions (W x H x D): 510 x 490 x 345 mm
Weight: 15.5 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 20
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 1400 W
DC Voltage: 24 V=
