Safety - Soundproof Machines Cabinets

Description

CONTROLS machines, such as sieve shakers, compactors and Los Angeles abrasion machines, can be upgraded with various types of cabinets that allow working noise reduction in the laboratory and safety protection, both features are essential for working within CE limits.
The cabinets are made from steel sheets that can be lined internally with soudproof material in order to reduce the noise level during the machine operation.
With Los Angeles machines, it’s possible to install also an eletric switch device which stops the machine operation when opening the cabinet door.
The cabinets dedicated for Los Angeles machines and all compactors are provided with opening for external mounting of the control panel.

The various models can be summarized following these key points:
  • NOISE REDUCTION: manufactured from steel sheets and lined internally with soundproofing material, helping to significantly reduce working noise level.
  • SAFETY SWITCH: manufactured from steel sheets. When the door is opened, the machine is stopped automatically. Essential for compliance to CE directives for dangerous machines.
  • NOISE REDUCTION & SAFETY SWITCH: the combination of the two, provides noise reduction and CE compliance.
See Additional Informations for more details.











  • Cabinets are made in steel sheets easily assembled on site by the user
  • The sound proofing is ensured by lining specially designed to significantly reduce the noise level
  • Cabinets are composed by a single or double-door opening system, some models with addiitional foldable top cover to facilitate machine access by the user

Label/Normering

Technische specificaties

Technical Specifications

Sieve Shakers

MACHINES

CABINETS

Codes

Description

Codes

Overall dimensions and weight

Features

15-D0410
15-D0410/Y
15-D0410/Z

Electromechanical sieve shaker for sieves up to 315 mm dia.

33-T3000/CB

(w x d x h):
850 x 670 x 1640 mm
75 kg (approx.)

NOISE REDUCTION
Double-door opening system and foldable top cover. The control panel of the shakers is mounted inside the cabinet, directly on the machine

15-D0410/A
15-D0410/AY
15-D0410/AZ

  1. sieve shaker for sieves up to 450mm dia.

15-D0410/A/CAB

(w x d x h):
1020 x 842 x 1591 mm
100 kg (approx.)

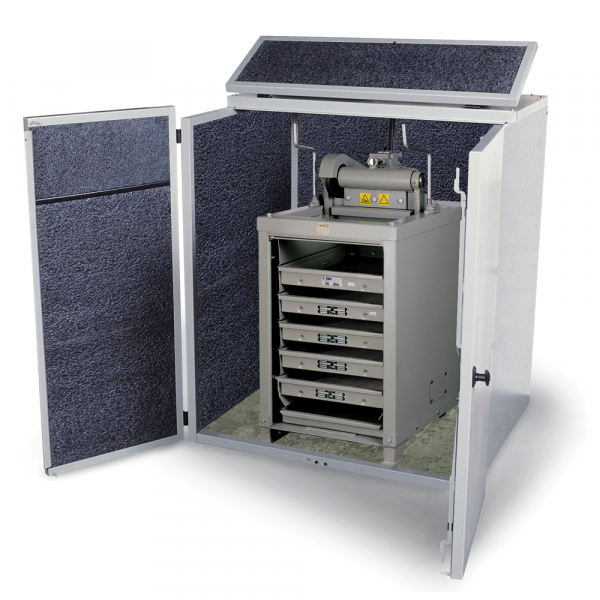

15-D0420/A
15-D0420/AZ

High capacity mechanical screen shaker.

15-D0420/A2

(w x d x h):
1310 x 1075 x 1292 mm
120 kg (approx.)

15-D0407/B
15-D0407/BZ

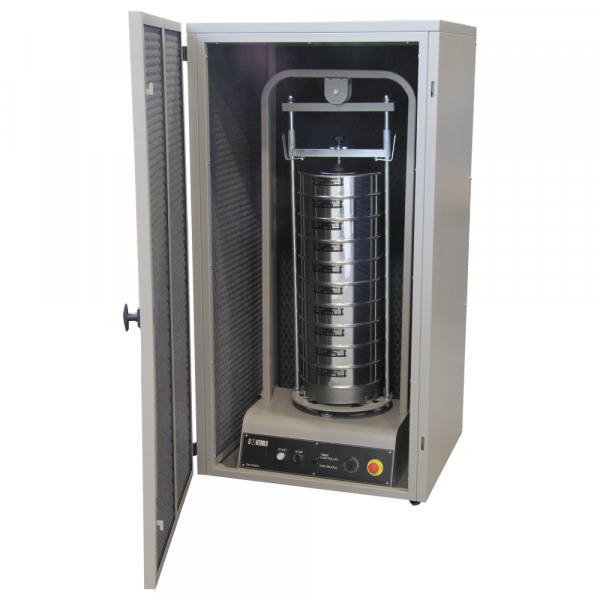

Electromagnetic sieve shaker for sieves up to 315 mm dia.

15-D0400/CAB

(w x d x h):
770 x 670 x 1335 mm
60 kg (approx.)

NOISE REDUCTION
Single-door opening system. The control panel of the shakers is mounted inside the cabinet, directly on the machine

15-D0411
15-D0411/Z

Electromechanical triple motion sieve shaker for sieves up to 315 mm dia.



Compactors

MACHINES

CABINETS

Codes

Description

Codes

Overall dimensions and weight

Features

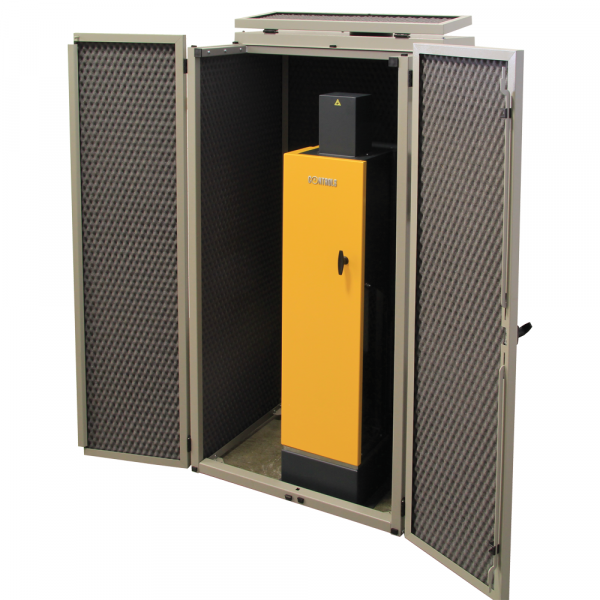

33-T3712
33-T3713
33-T3714

Universal fully Automatic Programmable Proctor-CBR



33-T3712/CB

(w x d x h):
850 x 670 x 1570 mm
75 kg (approx.)

NOISE REDUCTION
Double-door opening system and foldable top cover for Proctor-CBR compactors.
Single-door opening system for Marshall compactors.
The control panel of the compactors can either remain mounted on the machine in its original position or it can be easily removed from the machine and placed externally on the cabinet side wall. The CE compliance is assured by the compactors in-built doors and safety switch

33-T3612
33-T3613
33-T3614

Automatic Proctor-CBR compactor, according to ASTM/AASHTO

33-T3000/CB

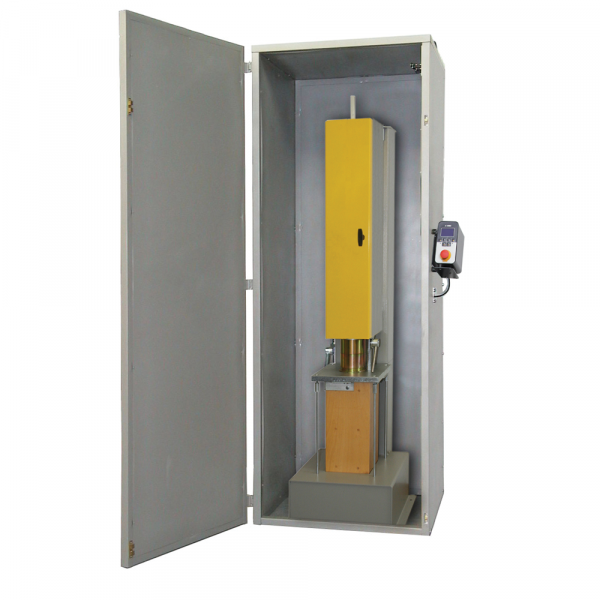

76-B4432
76-B4433
76-B4434

EN - Marshall impact automatic compactor

33-T3712/CB

(w x d x h):
850 x 800 x 2170 mm
130 kg (approx.)

76-B4442
76-B4443
76-B4444

ASTM - Marshall impact automatic compactor


Los Angeles

MACHINES

CABINETS

Codes

Description

Codes

Overall dimensions and weight

Features

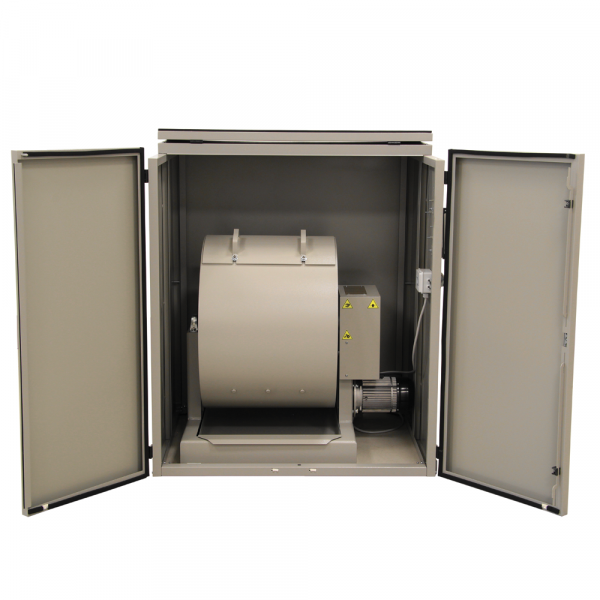

48-D0500/G

Los Angeles abrasion machine

48-D0500/CB1

(w x d x h):
975 x 1052 x 1250 mm
150 - 180 kg (approx.)

SAFETY SWITCH
Double-door opening system and foldable top cover. The control panel of the compactors can either remain mounted on the machine in its original position or it can be easily removed from the machine and placed externally on the cabinet side wall

48-D0500/CB2

NOISE REDUCTION & SAFETY SWITCH
Double-door opening system and foldable top cover. The control panel of the compactors can either remain mounted on the machine in its original position or it can be easily removed from the machine and placed externally on the cabinet side wall

Order nummers

15-D0400/CAB:

Noise reduction cabinet for sieve shakers model 15-D0411, 15-D0411/Ax and 15-D0407/Bx

15-D0410/A/CAB: Noise reduction cabinet for sieve shaker model 15-D0410/A

Accessoires & toebehoren



: 15-D0420/A2: Noise reduction cabinet for high capacity mechanical screen shaker model 15-D0420/A. Easy ergonomic access by double-door opening system andfoldable top cover. The control panel of the shaker is mounted inside the cabinet, directly on the machine. 33-T3712/CB:

Noise reduction cabinet for CBR-Proctor universal compactor series 33-T371x and Marshall compactors 76-B444x, B443x and B446x

48-D0500/CB1: CE compliant safety cabinet with door opening switch for Los Angeles machine 48-D0500/CB2: Noise reduction and CE compliant safety cabinet with door opening switch for Los Angeles machine
