Description

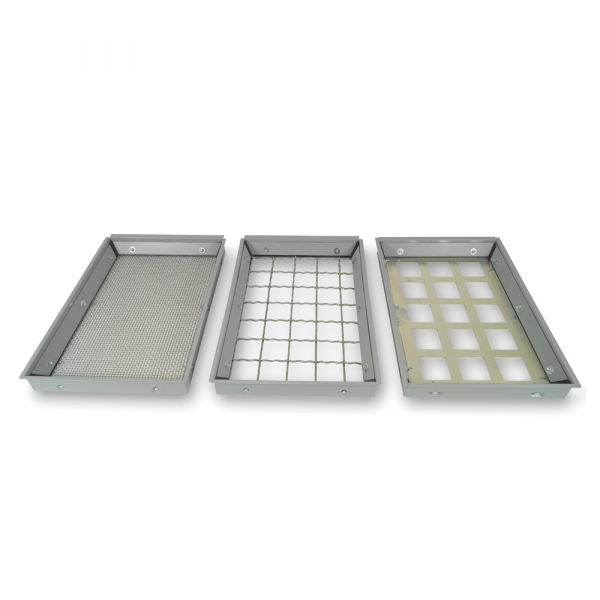

Designed for sizing large quantity of aggregates from 4” size (101.6 mm), down to N° 200 opening (0.074 mm). Used with the High capacity screen shaker  15-D0420/A, can size up to 30 liters (1 cubic feet) of aggregates.
Made from steel, are available in different versions:

  • ASTM E11, Woven wire Coarse, Intermediate, Fine and Fine with reinforced mesh, stainless steel
  • ISO 3310-1 and ISO 3310-2 Woven wire stainless steel cloth and Perforated steel metal plate


Tray dimensions: 457x660x75 mm
Weight approx.: 6.5 kg

Label/Normering

ISO 3310-1‰ISO 3310-2‰ASTM E11

Technische specificaties

Technical Specifications

Screen trays ASTM E11 Woven wire cloth type

15-D0425 Coarse series


Code

Sieve op.

Alternative



mm



15-D0425/01

100

4”

15-D0425/02

90

3 ½”

15-D0425/03

75

3”

15-D0425/04

63

2½”

15-D0425/05

53

2.12”

15-D0425/06

50 (•)

2”

15-D0425/07

45

1¾”

15-D0425/08

37.5 (•)

1½”

15-D0425/09

31.5

11/4”

15-D0425/10

26.5

1.06”

15-D0425/11

25.0 (•)

1”

15-D0425/12

22.4

7/8”

15-D0425/13

19.0 (•)

3/4”

15-D0425/14

16.0

5/8”

15-D0425/15

13.2

.530”

15-D0425/16

12.5 (•)

1/2”

15-D0425/17

11.2

7/16”

15-D0425/18

9.5

3/8”

15-D0425/19

8.0

5/16”

15-D0425/20

6.7

.265”

15-D0425/21

6.3

1/4”

15-D0425/22

5.6

No.3½”

15-D0425/23

4.75

No. 4



(•) Standard set recommended by ASTM


Intermediate series


Code

Sieve op

Alternative



mm



15-D0426/01

4.00

No. 5

15-D0426/02

3.35

No. 6

15-D0426/03

2.80

No. 7

15-D0426/04

2.36

No. 8

15-D0426/05

2.00

No. 10

15-D0426/06

1.7

No. 12

15-D0426/07

1.4

No. 14



Fine series


Code

Sieve op

Alternative



mm



15-D0427/01

1.18

No. 16

15-D0427/02

1.00

No. 18

15-D0427/03

0.850

No. 20

15-D0427/04

0.710

No. 25

15-D0427/05

0.600

No. 30

15-D0427/06

0.500

No. 35

15-D0427/07

0.425

No. 40

15-D0427/08

0.355

No. 45

15-D0427/09

0.300

No. 50

15-D0427/10

0.250

No. 60

15-D0427/11

0.212

No. 70

15-D0427/12

0.180

No. 80

15-D0427/13

0.150

No. 100


Fine series with reinforcement mesh


Code

Sieve op

Alternative



mm



15-D0428/01

0.125

No. 120

15-D0428/02

0.106

No. 140

15-D0428/03

0.090

No. 170

15-D0428/04

0.075

No. 200




ISO 3310-1 SCREEN TRAYS

Woven wire cloth


Code

Nominal aperture

15-D0427/E02

80 μm

15-D0427/E04

100 μm

15-D0427/E08

160 μm

15-D0427/E10

200 μm

15-D0427/E12

250 μm

15-D0427/E14

315 μm

15-D0427/E15

355 μm

15-D0427/E16

400 μm

15-D0427/E20

630 μm

15-D0427/E22

800 μm
