Speedy Moisture Testers

Description

A well established portable test method for the determination of moisture content of soils, sand and fine aggregates. The procedure involves the reaction between water and calcium carbide which when mixed together give off a gas. The amount of gas is directly proportional to the amount of water present in the sample and results in percentage are taken from a pressure gauge.

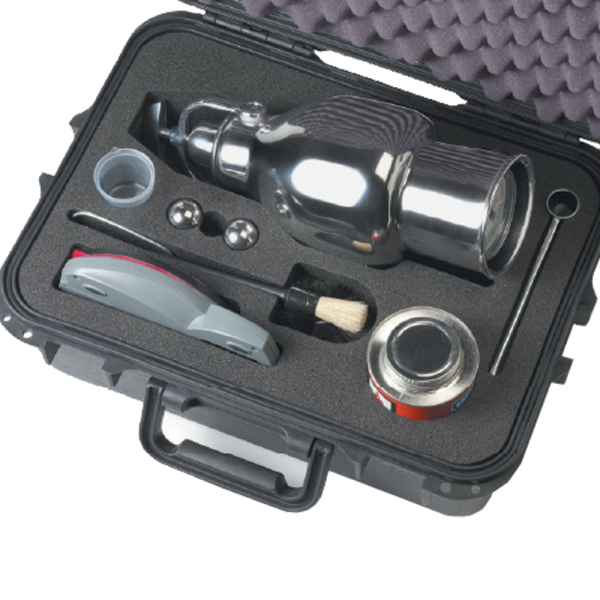

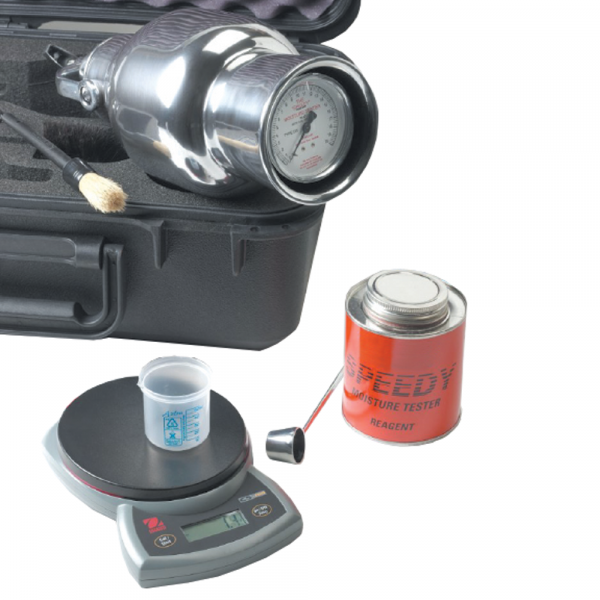

The tester is supplied complete with electronic balance, brushes and measure in a plastic carrying case.
Two versions available: 47-T0023/A 20 g cap., and 47-T0024/A 6 g cap.

Label/Normering

  BS 6576‰AASHTO T217‰NF P94-052-1‰ASTM D4944

Technische specificaties

Technical Specifications

Model47-T0024/A47-T0023/A
Moisture range0-20%0-20%
Gauge divisions0.2%0.2%
Standard weight on balance6 g20 g
Case dimensions510x380x200 mm510x380x200 mm
Weight approx.:5.5 kg6 kg



Order nummers

47-T0023/A: Speedy moisture tester, 20 g cap. complete with electronic balance, accessories and carrying case 47-T0024/A: Speedy moisture tester, 6 g cap. complete with electronic balance, accessories and carrying case

Accessoires & toebehoren



47-T0020/B:

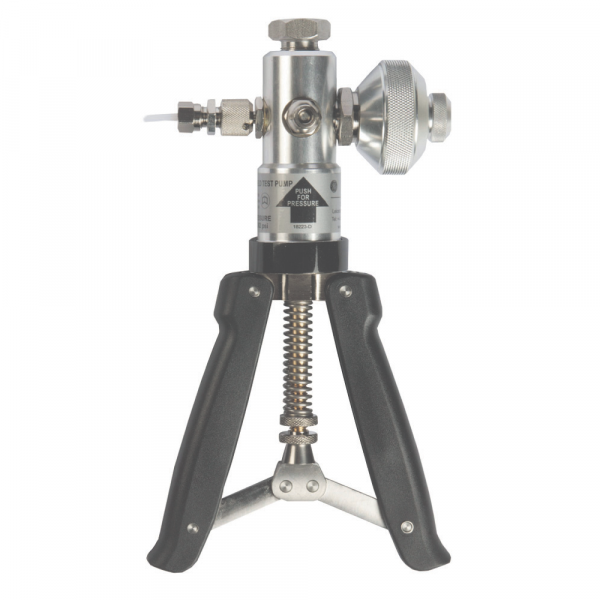

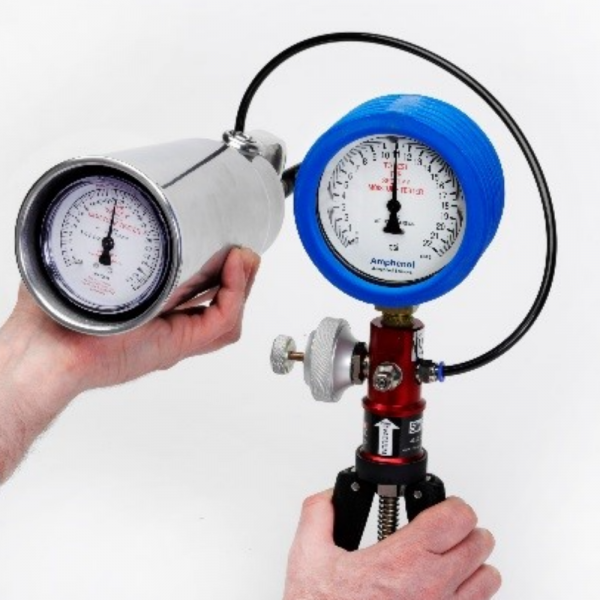

Portable analogic pressure calibrator for Speedy moisture tester

19-T0019/1: Spare reagent ampules. Pack of 100. Total 1.7 kg
