Standard Rotational Viscometer

Description

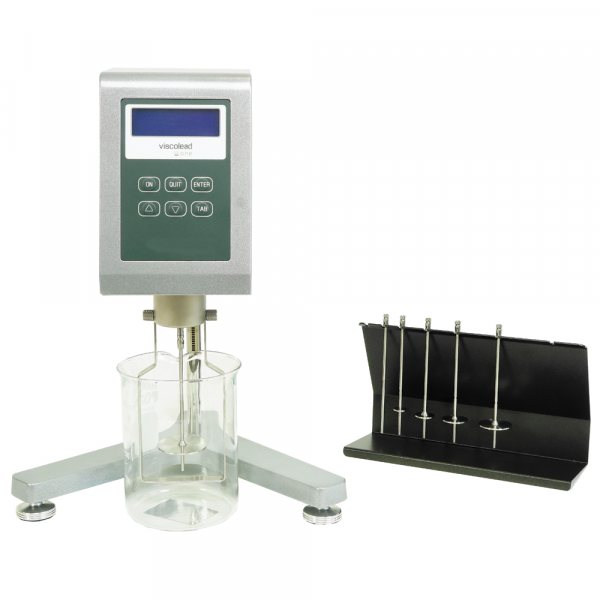

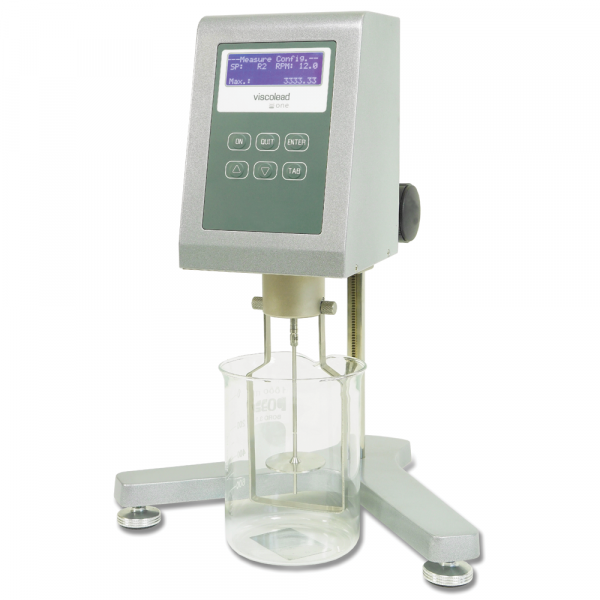

Apparent viscosity of unfilled asphalt is evaluated by a rotational viscometer  which measures the torque generated by a calibrated spindle rotating at a selected speed into a bitumen sample heated at  precise temperature in the range between ambient temperature to 260° C. The measured relative resistance to rotation is converted, by a factor,  in viscosity units,  cP or mPa.s.

Rotary viscometer matches ASTM D2196, ASTM D4402 and AASTHO T316 requirements.

  • Data displayed: selected speed, selected spindle, viscosity reading, percentuage of full scale
  • Relative and absolute viscosity
  • Unit converter SI to CGS
  • AUTO_TEST with sound and visual mulfunction alarm
  • AUTO-RANGE function
  • User-enabled calibration
  • 10 languages options
  • Repeteability: 0.2%
  • Accuracy 0,1% of full scale



Label/Normering

  ASTM D4402‰AASHTO T316‰EN 13302‰ASTM D2196

Technische specificaties

Technical Specifications

  • Viscosity  range (cP):  100 – 13.000.000
  • Rotational speed range (r.p.m.): 0.3 – 100
  • Selectable speeds: 18
  • Precision: +/- 1% fs
  • Resolution:
    • Using low viscosity adapter: 0.01
    • For lower than 10.000 viscosity cP: 0.1
    • For viscosity equal to or above 10.000 cP: 1
  • Repeteability: 0.2%





 Viscosity ranges (mPa•s)
Spindle models
TR850 – 170 K
TR9250 – 830 K
TR10500 – 1.7 M
TR111 K – 3.3 M





Order nummers

81-PV0118/C:

Rotational Viscosimeter, standard version. 100-240V/50-60Hz/1ph

:

Accessoires & toebehoren



81-PV0118/T: Temperature control unit for rotational viscometer. Temperature range from ambient plus 5°C to 300°C. 220-240V/50-60Hz/1Ph. 81-PV0118/TZ: Temperature control unit for rotational viscometer. Temperature range from ambient plus 5°C to 300°C. 110V/60Hz/1ph 81-PV0118/2: Aluminum disposable test chamber 81-PV0118/3: Stainless steel reusable test chamber 81-PV0118/4: Set of special spindles for APM and thermosphere (TR8, TR9, TR10, TR11) Range: "R": (40 - 400.000) cP, "H": (2 - 32.000) Poise Material: Stainless steel. 316 Suitable for viscometer R y H:
