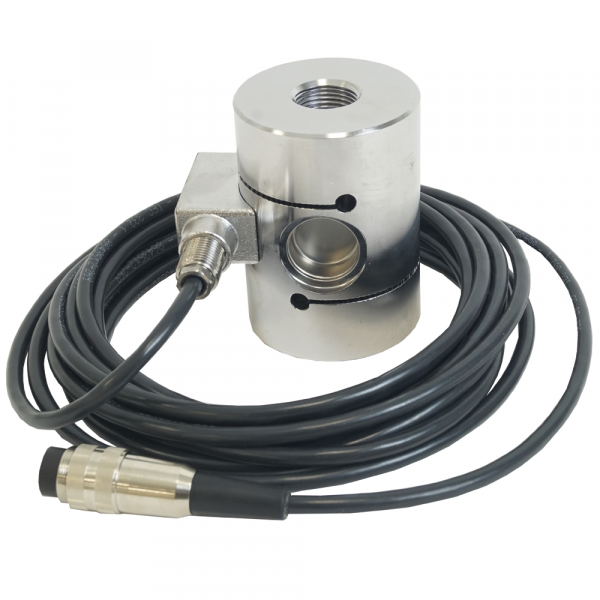

Strain Gauge Load Cells, 3.5 to 50 kN Cap.

Description

The strain gauge load cells are used to measure the force applied. They provide a very accurate electrical signal strictly proportional to the applied load.
This kind of gauges are used in various test applications with low capacity universal testers.
High capacity load cells, normally used for calibration of compression machines, ranging from 300 to 5000 kN also available. See related products.
Two versions available: Standard and complete with traceable certificate of calibration (suffix /C)

Label/Normering

Technische specificaties

Technical Specifications

ModelCapacityTop and lower
connection thread		Dimensions
Dia.x height		Weight
Approx.
82-P0370
82-P0370/C		3.5 kNM20x1.557x80 mm1.5 kg
82-P0373
82-P0373/C		10 kNM20x1.557x80 mm1.5 kg
82-P0375
82-P0375/C		50 kNM30x282x110 mm4.45 kg
82-P0376/E100 kNM30x282x110 mm4.45 kg



Order nummers

82-P0370/C:

3.5 kN capacity strain gauge load cell complete with calibration traceable certificate

82-P0373/C: 10 kN capacity strain gauge load cell complete with calibration traceable certificate

Accessoires & toebehoren



: 82-P0370:

3.5 kN capacity strain gauge load cell

82-P0373: 10 kN capacity strain gauge load cell 82-P0375: 50 kN capacity strain gauge load cell 82-P0375/C: Connecting adapter load cell/cross head 82-P0376/E: 100 kN capacity load cell with adapters for 70-T1192 UNIFRAME tester
