Materiaaltesten Fundering  Strenght of Stabilized Soil

Strenght of Stabilized Soil

Strenght of Stabilized Soil

Description

To perform the unconfined compressive strength of hydraulically bound mixtures of fine and medium grained soil specimens, the main Standards require to manufacture the test specimens using a suitable mould set kit.
Several versions are available according to the Standard:
  • EN 13286-53
  • NF P94-100

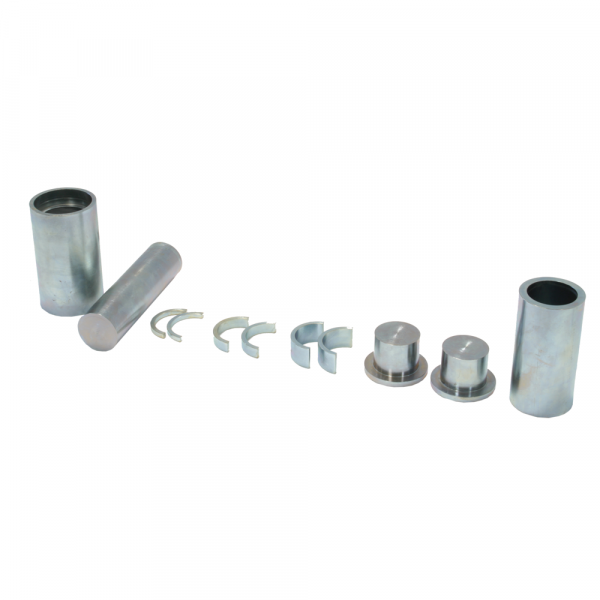

Each test set conforming to EN 13286-53 includes:
  • 1 mould,
  • set of 2 end plugs
  • set of 2 plug displacing collars with 3 different heights (5.00 mm; 8.33 mm and 12.50 mm)
  • 1 demoulding plugger
  • 1 specimen collector
(These items can be ordered separately, see accessories and spare parts).

Each test set conforming to NF P94-100 includes:
  • 1 mould
  • 5 stainless steel casing
  • 2 compaction plugs
  • 1 set of plug displacing collars
  • 1 demoulding plunger
  • 1specimen collector
(Set of 5 stainless steel casing can be ordered separately, see accessories and spare parts)



Label/Normering

Technische specificaties

Order nummers

34-T0123/A: EN Stabilized soil set for fine and medium grained soils, compacted specimen size dia 50x50mmaccording to EN 13286-53 34-T0123/B: EN Stabilized soil set for fine and medium grained soils, compacted specimen size dia 50x100 mm according to EN 13286-53

Accessoires & toebehoren

: : : : : 34-T0123/S: NF Stabilized soil set for fine and medium grainedsoils - specimen size dia 50x50 mm - according to NF P94-100 34-T0124/A: EN Stabilized soil set for fine and medium grained soils, compacted specimen size dia 100x100mm according to EN 13286-53 34-T0124/B: EN Stabilized soil set for fine and medium grained soils, compacted specimen size dia 100x200mm according to EN 13286-53 : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
