Universal Core Drilling Machine

Description

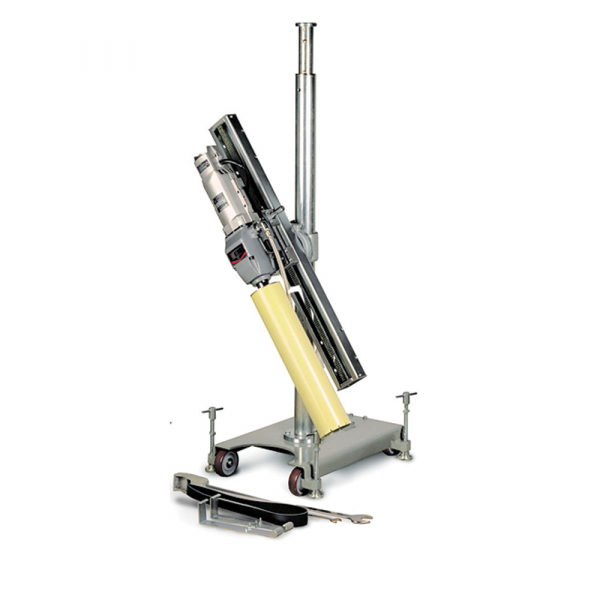

This robust versatile machine is ideal for field where it is necessary to core at any angle. The extension columns (see accessories) permit the holding at a maximum vertical or horizontal distance of 3850 mm. The rack feed (drilling excursion) is 1000 mm long.

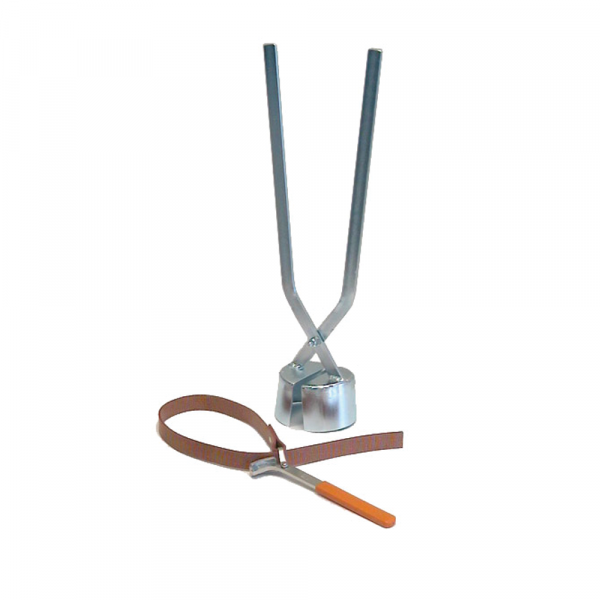

The core bits, strap wrench and extension columns, are not part of the machine and have to be ordered separately. See accessories.

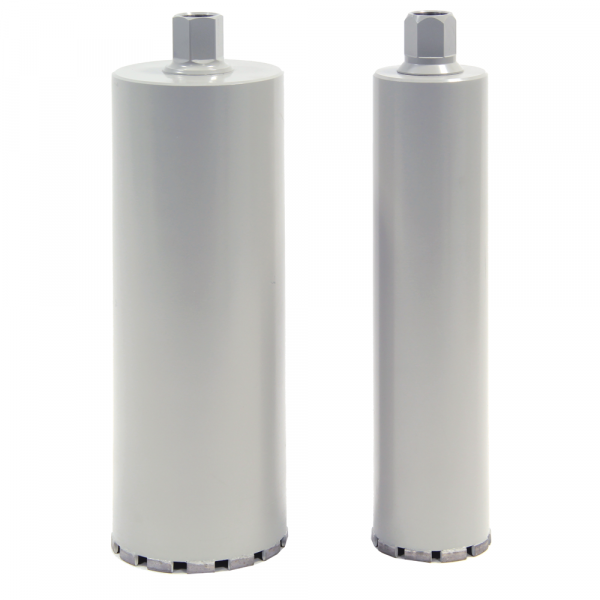

The core bits we propose have fixed standard coupling assuring the best alignment, fast and easy fitting and disassembling. See accessories.
We propose other models of coring machines: portable type (see \#portable-core-drilling-machine\#) and for asphalt coring (see \#pavement-core-drilling-machine\#).

  • Full 360° operation for coring at any angle
  • Main column extendable in height up to 3850 mm
  • Robust and stable unit
  • Rack feed (drilling excursion) 1000 mm long
  • 3 working speeds

Label/Normering

Technische specificaties

Technical Specifications

  • Coring angle: 0 to 360°
  • Rack feed: 1000 mm
  • Shaft thread: 1¼-7
  • Power: 2200 W at 230 V; 1800 W at 110 V
  • Full load speed: 670/1140/1580 r.p.m.
  • Coring range dia.: 20/200 mm
  • Dimensions approx.: 470x785x1630 mm
  • Weight approx.: 80 kg



  Core bits    To take core
   dia. mm
Weight approx.
          kg
Suitable core extractor
           model
  83-C0320      50         2.2       83-C0310/2
  83-C0321      75         2.8       83-C0311/2
  83-C0322    100         3.7       83-C0312/2
  83-C0323    150         5.4       83-C0313/2
  83-C0324    200         7.5       83-C0314/2

















Order nummers

83-C0301/D: Heavy duty universal core drilling machine. 3 speeds motor. 230V/50-60Hz/1Ph 83-C0301/DZ: Heavy duty universal core drilling machine. 3 speeds motor. 110V/60Hz/1Ph

Accessoires & toebehoren



83-C0324: Coring bit for 200 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W. 83-C0310/2: Core extractor dia 50 mm 83-C0311/2: Core extractor dia 75 mm 83-C0312/2: Core extractor dia 100 mm 83-C0313/2: Core extractor dia 150 mm: 83-C0320: Coring bit for 50 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W. 83-C0321: Coring bit for 75 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W. 83-C0322: Coring bit for 100 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W. 83-C0323: Coring bit for 150 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W. 83-C0350/2: Tie-rod for core drill fastening 83-C0350/3: Pack of 50 expansion bolts for core drill fastening 83-C0314/2: Core extractor dia 200 mm
