Vacuum Pumps

Description

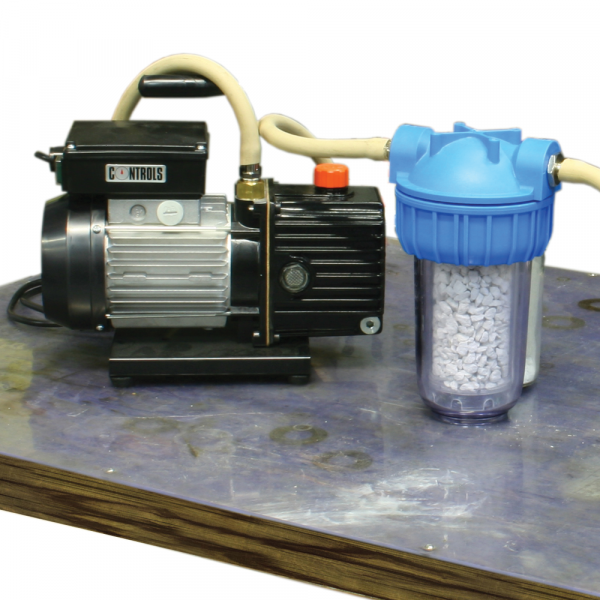

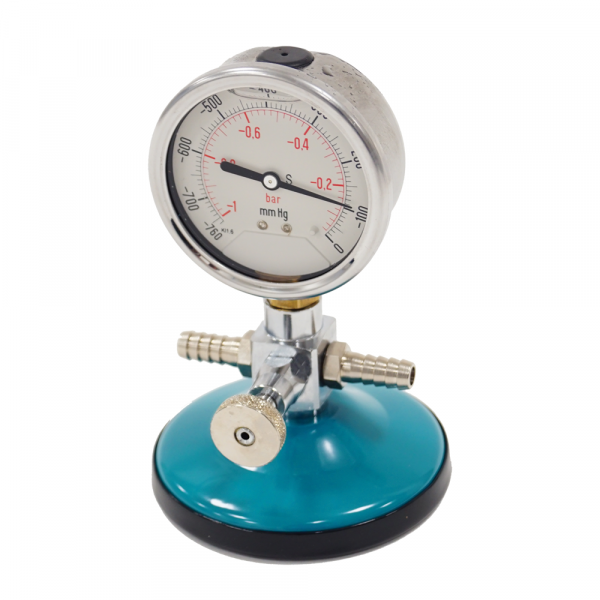

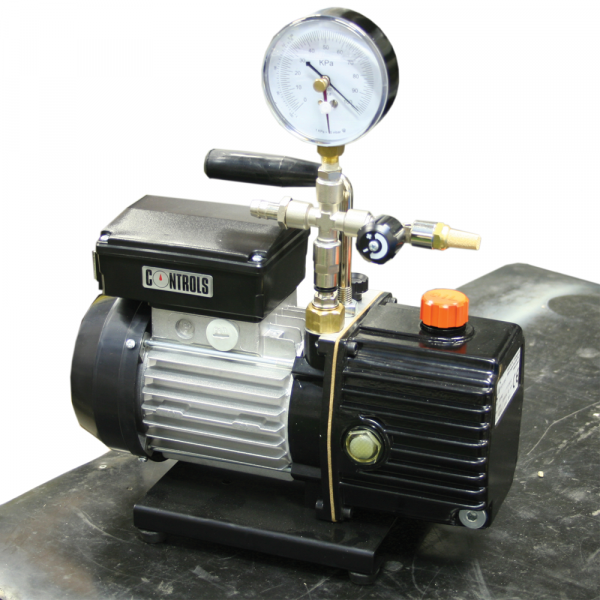

Vacuum pumps are used for a number of applications concerning, above all, De-Airing systems  of water. Water vapour sucked by the vacuum pump and mixed with the oil, producing emulsion, may cause serious damage to the pump when in notable concentration. For this reason it is important, for such applications, to propose a suitable de-airing system as the Air drying unit 86-D2005 filled with the  Silica gel (dessicator salt) 86-D0819 (see \#air-drying-unit\#). Vacuum pumps can also be fit with a Vacuum gauge with pin regulating valve and bleed valve as our model 86-D2004/5 (see accessories) unless a similar gauge is not fit to the equipment to be connected as for example Large size pyknometer  75-D1122. For more detail about the de-airing systems see Additional information.

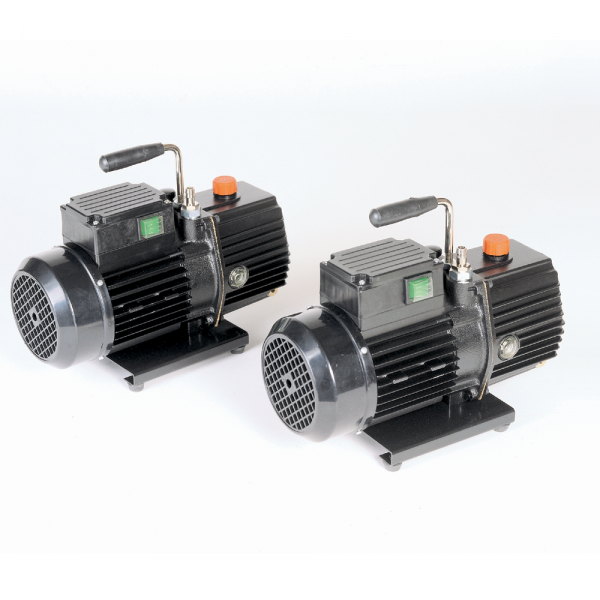

We propose two Vacuum pump models:

  • 86-D2001 and 86-D2001/Z (110 V), for ultimate vacuum of 0.1 mbar
  • 86-D2003 and 86-D2003/Z (110 V), for ultimate vacuum of 0.01 mbar

Label/Normering

Technische specificaties

Technical Specifications

Models 86-D2001
D2001/Z
D2003
D2003/Z
Free air displacement liter/min:7575
Ultimate vacuum mbar:0.10.01
Power180 W240 W
Dimensions approx.:335x155x280 mm335x155x280 mm
Weight approx.:12,5 kg12,5 kg



Order nummers

86-D2001: Portable vacuum pump, free air displacement 75 l/min, ultimate vacuum 0.1 mbar. 230V/50-60Hz/1Ph 86-D2003:

Two stage portable vacuum pump , ultimate vacuum 0,01 mbar, free air displacement 75 l/min. 230V/50-60Hz/1ph

Accessoires & toebehoren



86-D2064:

Rubber tube dia 6.5 x 16.5 mm 2 m long, for vacuumpumps

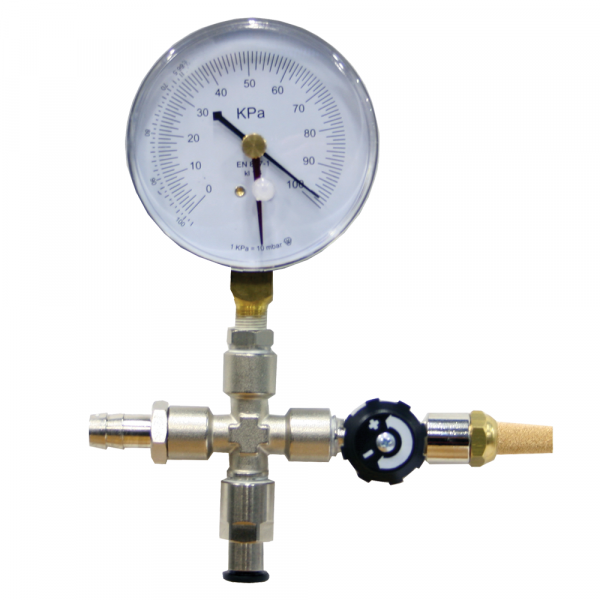

86-D2001/1: Special oil for vacuum pump 500 cc 86-D2004/5: Vacuum gauge 0 to -100kPa complete with connections for rubber hoses and bleed/ regulation pin valve 86-D2003/Z:

Two stage portable vacuum pump , ultimate vacuum 0,01 mbar, free air displacement 75 l/min. 110V/60Hz/1ph

86-D2001/Z:

Portable vacuum pump, free air displacement 75 l/min, ultimate vacuum 0.1 mbar. 110 V, 60 Hz, 1 ph
