Vibration Compaction Hammer

Description

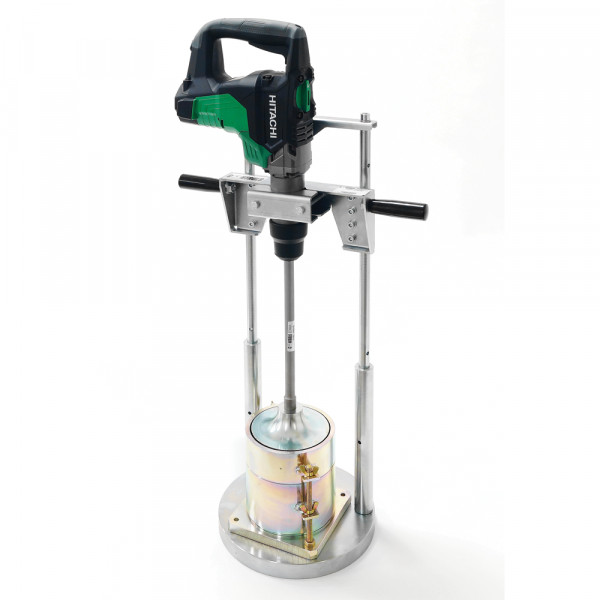

Used for the compaction of Proctor and CBR soil specimens. Using the appropriate tamping foot it can also be used for compacting asphalt in the “Percentage refusal density test”. See Vibrating hammer for P.R.D. specimens.

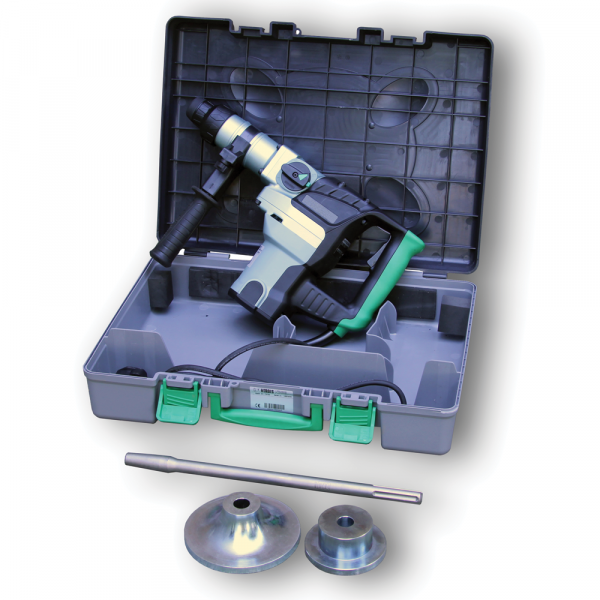

Double insulated motor. Plastic trigger handle. The hammer is supplied without support frame and tampers which have to be ordered separately. See accessories.

  • Full load impact rate 2800 bpm
  • Overall dimensions (wxdxh): 130x530x380 mm
  • Weight approx.: 6.4 kg
  • Constant speed with variable speed control
  • Durable aluminium housing
  • Soft grip and shock-absorbing handle
  • Easy to change tool by single-step holder
  • Variable lock mechanism to adjust tool at 12-step angle
  • Functional and robust design

Label/Normering

  BS 1377:4‰BS 1924:2‰EN 13286-4

Technische specificaties

Order nummers

33-T8702/A:

Vibration hammer for soil and asphalt compaction, to be used with supporting frame model 33-T8702/FR 230V/50-60Hz/1Ph

33-T8702/AZ:

Vibration hammer for soil and asphalt compaction, to be used with supporting frame model 33-T8702/FR 110V/60Hz/1Ph

Accessoires & toebehoren

81-B0155/1: Glass receiver 10 ml capacity 81-B0155/2: Distillation flask 500 ml 81-B0155/3: Glass condenser
