Water Baths

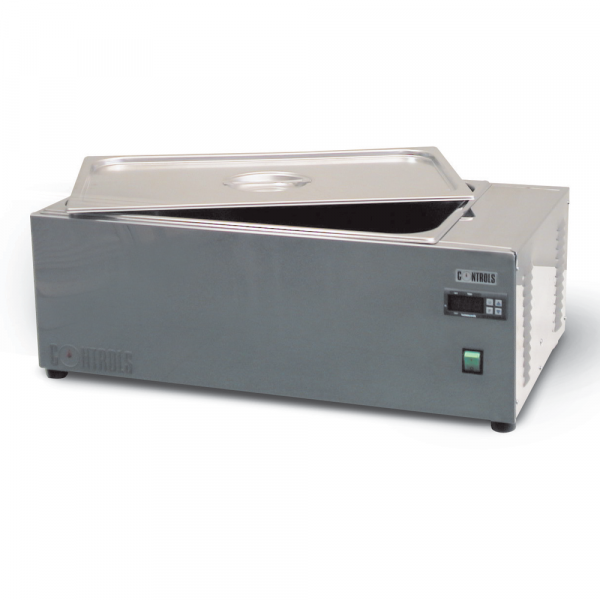

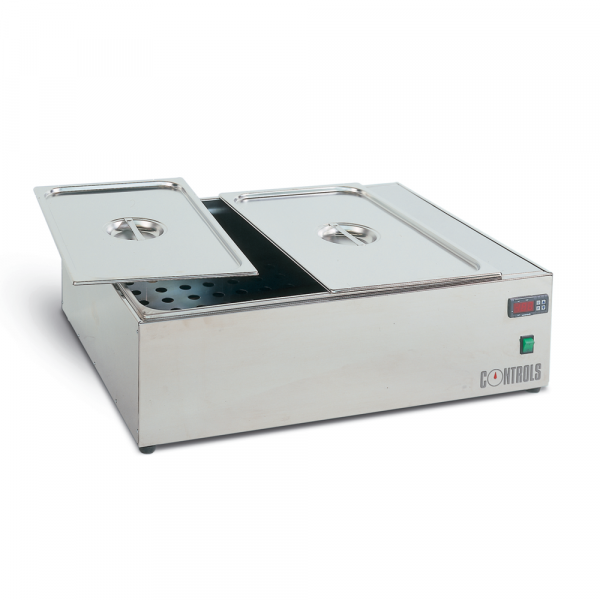

Used to condition Marshall (60±1°C) and other asphalt specimens (e.g. tar specimens at 37.8±1°C) in water. The water baths are available in three different dimensions: 30, 56 and 110 liters capacity.
Digital thermoregulator and temperature display, internal and external outer case in stainless steel. Complete with perforated base shelf and cover.


The water baths are available with or without continuous recirculating system (see technical specifications). The continuous recirculating water system ensures temperature uniformity.

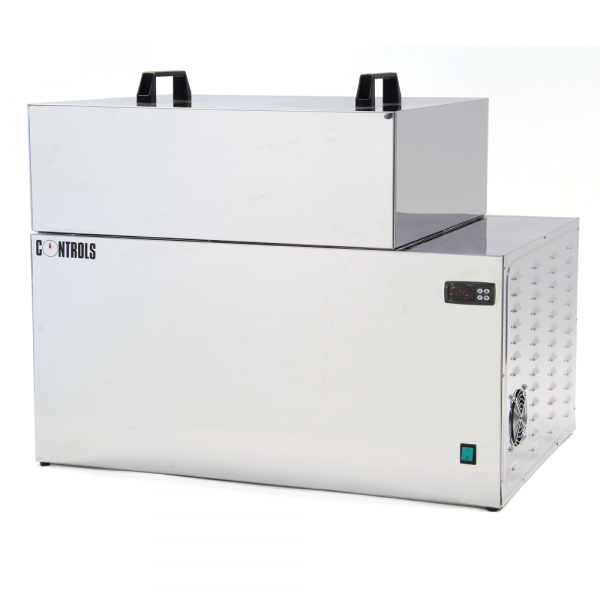

The larger model with recirculating system also responds to ASTM D5581 requirement to have a deeper bath for 6" samples.


Our product range also includes a model fitted with cooling unit with temperature range starting from 5°C, to satisfy EN 12697-23 (see related products below).


  • Ideal for conditioning asphalt specimens for Marshall and Indirect Tensile tests;
  • water conditioning up to 60° (up to 95°C with our larger model);
  • wide internal area to accomodate several specimens;
  • supplied with perforated base shelf and internal case;
  • +/-1°C accuracy;
  • 0.1°C resolution.

Label/Normering

  ASTM D1559‰ASTM D5581‰AASHTO T245‰EN 12697-12‰EN 12697-34

Technische specificaties

Models76-B0066/A
76-B0066/AZ
76-B0067/A
76-B0067/AZ
76-B0066/B
76-B0066/BZ
76-B0067/B
76-B0067/BZ
76-B0067/C
76-B0067/CZ
Recirculationnonoyesyesyes
Capacity30 liters56 liters30 liters56 liters110 liters
Marshall specimen capacity1220122030 (4")
12 (6")
Temperature range: ambient to60°C60°C60°C60°C95°C
Accuracy±1°C±1°C±1°C±1°C±1°C
Resolution0.1°C0.1°C0.1°C0.1°C0.1°C
Power1200 W1200 W1200 W1200 W2500 W
Inside dim. (mm)500x300x185(h)610x500x185(h)500x300x185(h)610x500x185(h)600x500x280(h)
Outside dim. (mm)640x340x240(h)650x540x240(h)640x340x240(h)650x540x240(h)816x547x600(h)
Weight approx.:9.5 kg20 kg9.5 kg20 kg30 kg



Order nummers

  • 76-B0066/A: Digital water bath 30 litres capacity. 230V, 50-60Hz, 1ph.
  • 76-B0066/AZ: Digital water bath 30 litres capacity. 110V, 60Hz, 1ph.

Accessoires & toebehoren



  • 76-B0066/B: Digital circulating water bath 30 litres capacity.230V, 50-60Hz, 1ph.
  • 76-B0066/BZ: Digital circulating water bath 30 litres capacity.110V, 60Hz, 1ph.
  • 76-B0067/A: Digital water bath 56 litres capacity. 230V, 50-60Hz, 1ph.
  • 76-B0067/AZ: Digital water bath 56 litres capacity. 110V, 60Hz, 1ph.
  • 76-B0067/B: Digital circulating water bath 56 litres capacity.230V, 50-60Hz, 1ph.
  • 76-B0067/BZ: Digital circulating water bath 56 litres capacity.110V, 60Hz, 1ph.
  • 76-B0067/C: Digital circulating water bath 110 litres capacitywith PID thermoregulation, maximum temperature 95°C, resolution 0.1°C. 230V/50-60Hz/1Ph
  • 76-B0067/CZ: Digital circulating water bath 110 litres capacitywith PID thermoregulation, maximum temperature 95°C, resolution 0.1°C. 110V/60Hz/1Ph
