This apparatus is used to determine the depth of penetration of water under pressure in the concrete specimens. The test is performed clamping the specimen - cubic, cylindrical or prismatic of length of edge, or diameter not less than 150 mm - between two flanges with special circular gaskets. The water, under controlled pressure, is then applied to the surface of the concrete specimen. The penetration of water is measured, after the testing period, by breaking the specimen. The quantity of penetrated water, can also be measured through the graduated burettes fitted on top of the apparatus.
The apparatus consists of a robust steel frame with clamping system, incorporating the hydraulic circuit, valves, gauge to check the water pressure and measuring transparent burettes mounted on top of the apparatus. The clamping system can accept cube or prismatic specimens up to 200 mm side and cylinders up to 300 mm height.
Two versions available:
All versions are supplied complete with gaskets for 150 mm cube specimens.
The apparatus has to be fit with a suitable air compressor, max. working pressure 6 bar. See accessories.

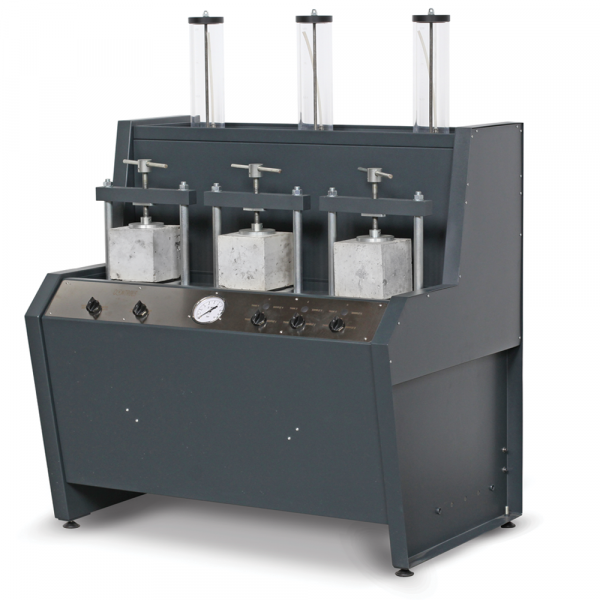

Apparatus for testing hardened concrete permeability to water under pressure according EN 12390-8. Model for 3 specimens complete with waterpressure gauge and graduated burettes measuring quantity of permeated water. F

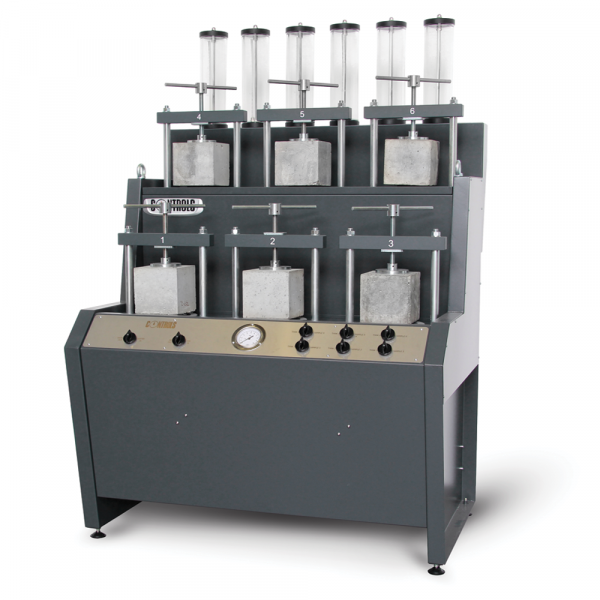

Apparatus for testing hardened concrete permeability to water under pressure according EN 12390-8. Model for 6 specimens complete with waterpressure gauge and graduated burettes measuring quantity of permeated water.
86-D2015: Laboratory air compressor. 8 BAR max constant pressure. 230V/50Hz/1Ph 55-C0246/2: Set of 3 gaskets for permeability test on 200 mm side/dia samples, for 55-C0246/x series 55-C0246/4: Set of 3 gaskets for permeability test on 150 mm side/dia samples, for 55-C0246/x series 55-C0246/5: Accessory for permeability meter series 55-C0246/xfor adapting one of the test chambers to samples with height 300/320 mm. 55-C0246/7:
Accessory for permeability meter series 55-C0246/x for adapting one of the test chambers to test cylinder dia.100x200mm.
Set of 3 gaskets for permeability test on dia.100x200 mm cylinders, for 55-C0246/x series. The machine shall be fitted with 55-C0246/7
