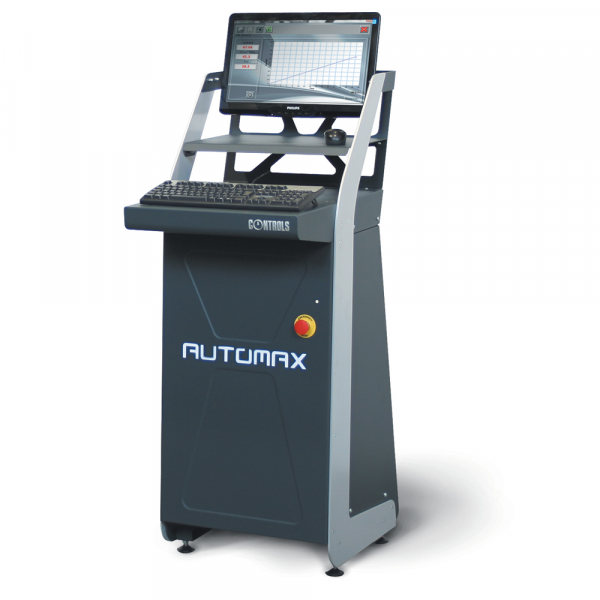

Materiaaltesten Fundering AUTOMAX MULTITEST Computerized Control Console
AUTOMAX Multitest represents a step change in versatility that allows modular upgrades from basic failure tests up to advanced displacement controlled tests.
EN 13398‰EN 12390-4‰ASTM C39‰ASTM C469‰ISO 6784‰DIN 1048‰UNI 6556‰BS 1924:1‰EN 14488-3‰EN 14488-5‰EN 14651‰ASTM C1550‰EN 1338‰EN 12390-13
Hydraulics

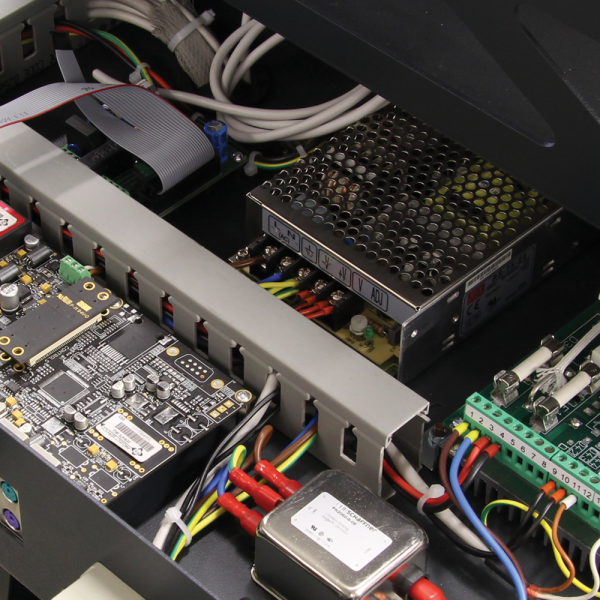

Hardware
PC and software
Main software MULTITEST allows:
DATAMANAGER software package (included) for compression, indirect tensile, 3 points and 4 points flexural tests on different types of specimens

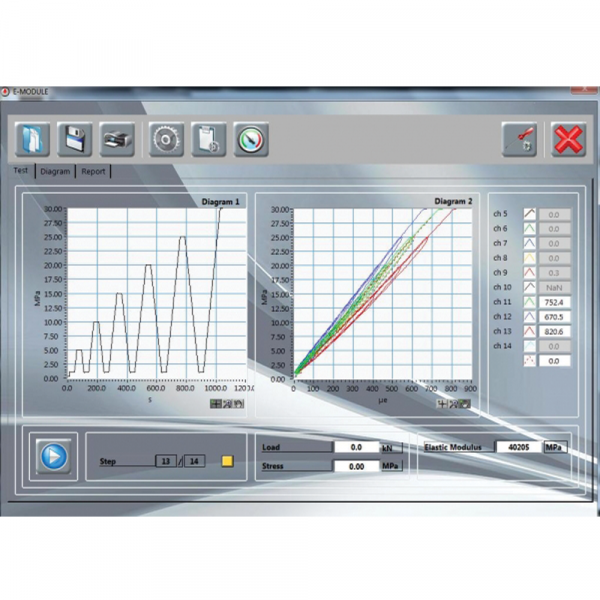

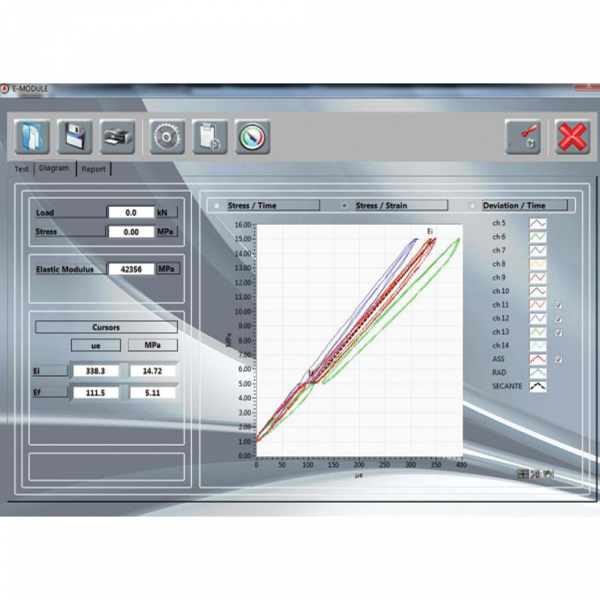

E-MODULE software package (optional, see Accessories) for Elastic modulus and Poisson ratio determination allowing:

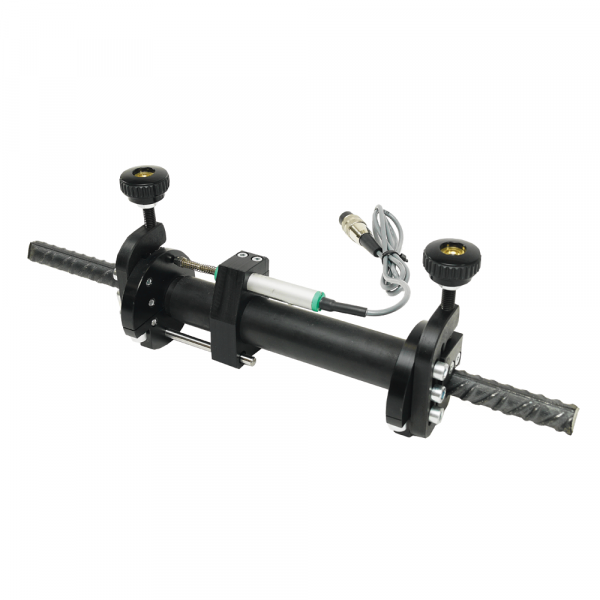

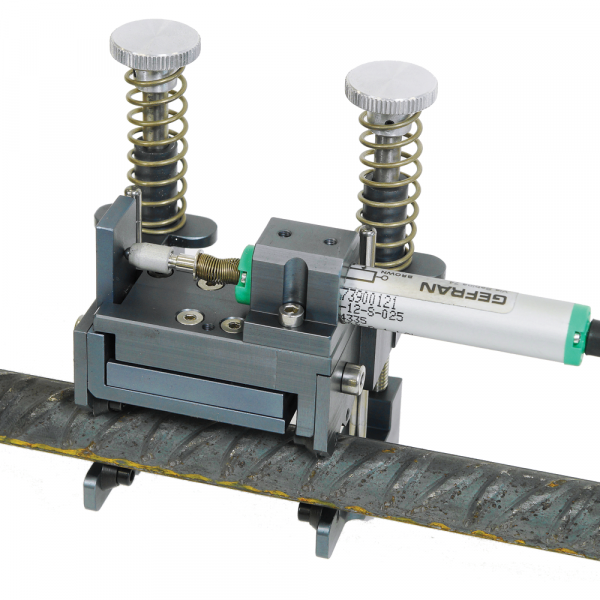

UTS software package (optional, see Accessories) for steel tensile testing allowing:

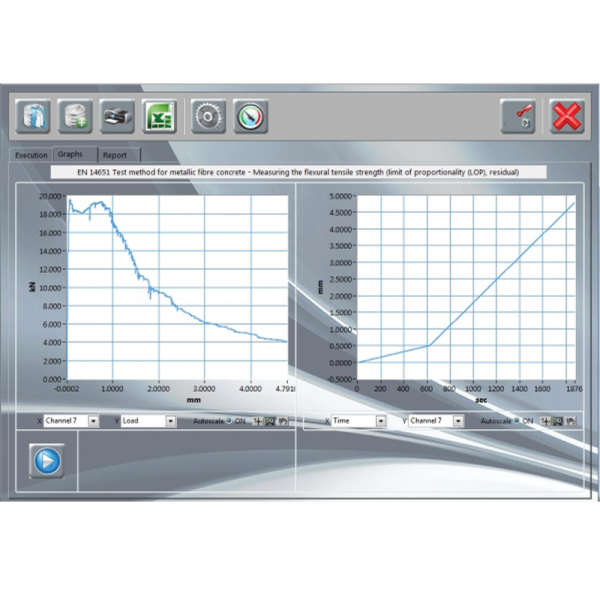

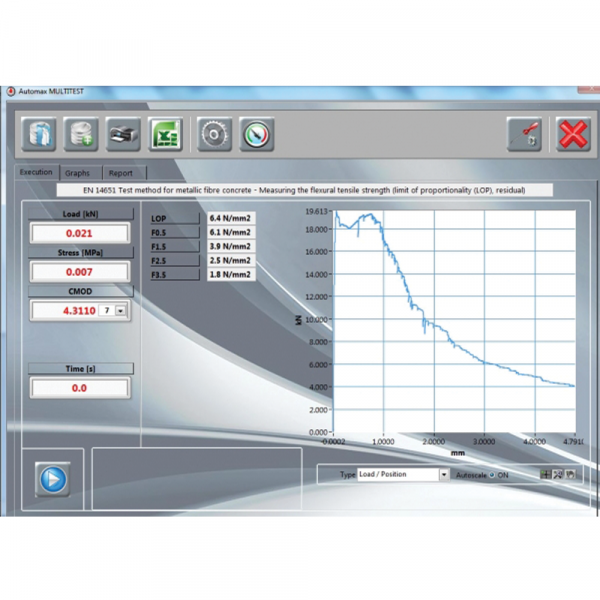

D-Control software package (optional, see Accessories) for displacement controlled tests allowing:
Physical specifications
Power rating: 700 W
Dimensions (d x w x h): 650 x 500 x 1350 mm
Weight approx.: 100 kg

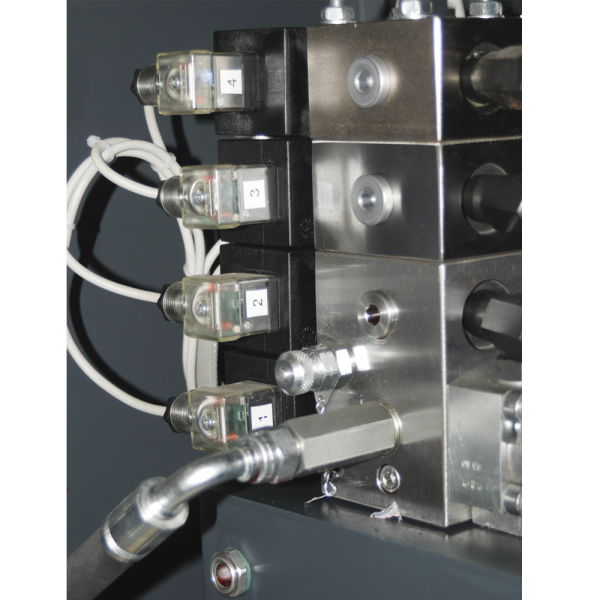

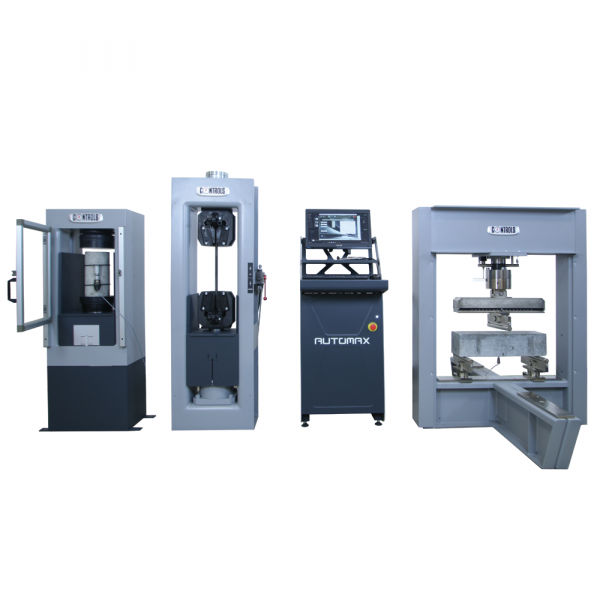

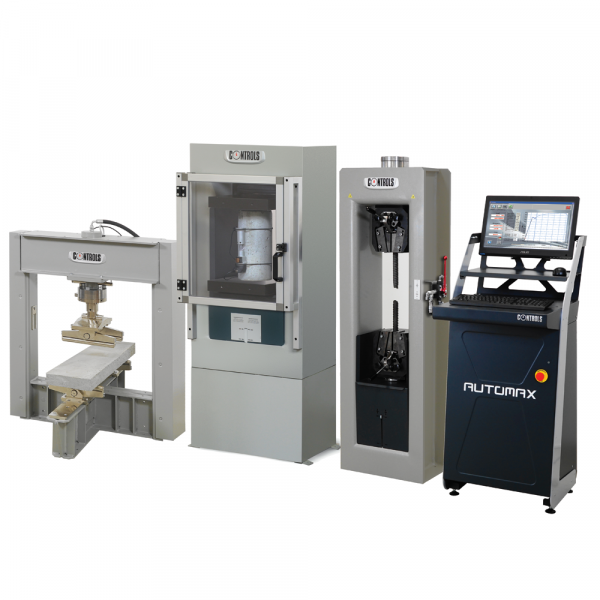

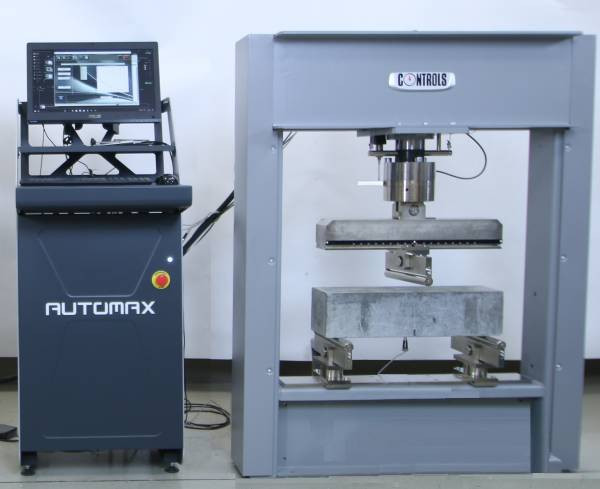

50-C20M82: AUTOMAX MULTITEST computerized control console forup to 2 frames (expandable up to 4) capable to perform the following tests: - compression, flexure, indirect tensile strength (sofware module included); - Elastic modulus and Poisson ratio determination (optional software module required); - energy absorption by displacement/strain controlled test - Fiber Reinforced Concrete (optional software module required); - tensile strength of rebars (optional software module required). Conforming to EN and ASTM norms. PC included. 230V, 50-60Hz, 1 ph SPECIFICATIONS HYDRAULIC SYSTEM - Max. working pressure 700 bar - Double stage pumping system, high delivery-low pressure for fast approach and low delivery-high pressure for test execution - Hydraulic block suitable for the connection of 2 frames, expandable to 4. - ES Energy Saving technologies for reduction of power consumption and silent operations - FLOW SHARING Technology for the automatic execution of loading and unloading cycles - DC motor 720 W HARDWARE AND FIRMWARE - Effective resolution 131000 points - High frequency PID closed loop control - Control frequency 500 Hz - Sampling rate 500 Hz - 4 channels for load sensors (load cells or pressure transducers) - 6 channels to measure strain values with potentiometric, LVDT and magnetostrictive (e.g. our compressometer 55-C0222/G) transducers- 4 channels to measure strain values with strain gauges - Saving of calibration curves for immediate connection of various sensors - Digital linearization of the calibration by automatic multi-coefficient factor PC AND SOFTWARE - Main software MULTITEST allows: * remote control of the whole system and the automatic execution of test including: fast approaching, zeroing, test execution,numerical and graphical management of test results, etc. * active frame selection via software * printing and saving of customized test reports both for single and batch tests in Excel format * multi-language including preset languages and editable local language (latin letters only) * automatic load measurement verification proce- dure including data acquisition and printing of traceable calibration certificates, when the PC is connected to the digital readout unit mod. 82-P0801/E and the suitable load cells * the use of 4 software packages each one tailored for a specific test method - DATAMANAGER software package (included) for compression, indirect tensile, 3 points and 4 points flexural tests on different types of specimens - E-MODULE software package (optional code 82-SW/EM) for Elastic modulus and Poisson Ratio determination allowing: * Free unlimited programmable load/stress cycles to fulfil any kind of test procedure * Real time monitoring of test data, stress/time, stress/axial strain, stress/lateral strain graphs * Automatic verification of sample positioning and sensors functionality, as per standards requirements - D-Control software package (optional code 82-SW/DC) for displacement controlled tests allowing: * Automatic calculation of test results accor- ding to EN 14651, 14488-3, 14488-5, UNI 11039-2, ASTM C1550, C1609, C947, UNE 83515 * 8 test pre-set testing procedures according to the above Standards * Customizable test procedure allowing desired loading history * Possibility to change in real time the test parameters: target load/displacement, control variable, test speed. * Data saving rate 250/sec - UTS software package for steel tensile testing (optional code 82-SW/UTS) allowing: * load/stress control * crosshead separation control * simultaneous display of: stress/elongation, stress/time; elongation/time with possibility to display multi-diagrams 50-C20M84: AUTOMAX MULTITEST computerized control console forup to 2 frames (expandable up to 4) capable to perform the following tests: - compression, flexure, indirect tensile strength (sofware module included); - Elastic modulus and Poisson ratio determination (optional software module required); - energy absorption by displacement/strain controlled test - Fiber Reinforced Concrete (optional software module required); - tensile strength of rebars (optional software module required). Conforming to EN and ASTM norms. PC included. 110V, 60Hz, 1 Ph SPECIFICATIONS HYDRAULIC SYSTEM - Max. working pressure 700 bar - Double stage pumping system, high delivery-low pressure for fast approach and low delivery-high pressure for test execution - Hydraulic block suitable for the connection of 2 frames, expandable to 4. - ES Energy Saving technologies for reduction of power consumption and silent operations - FLOW SHARING Technology for the automatic execution of loading and unloading cycles - DC motor 720 W HARDWARE AND FIRMWARE - Effective resolution 131000 points - High frequency PID closed loop control - Control frequency 500 Hz - Sampling rate 500 Hz - 4 channels for load sensors (load cells or pressure transducers) - 6 channels to measure strain values with potentiometric, LVDT and magnetostrictive (e.g. our compressometer 55-C0222/G) transducers- 4 channels to measure strain values with strain gauges - Saving of calibration curves for immediate connection of various sensors - Digital linearization of the calibration by automatic multi-coefficient factor PC AND SOFTWARE - Main software MULTITEST allows: * remote control of the whole system and the automatic execution of test including: fast approaching, zeroing, test execution,numerical and graphical management of test results, etc. * active frame selection via software * printing and saving of customized test reports both for single and batch tests in Excel format * multi-language including preset languages and editable local language (latin letters only) * automatic load measurement verification proce- dure including data acquisition and printing of traceable calibration certificates, when the PC is connected to the digital readout unit mod. 82-P0801/E and the suitable load cells * the use of 4 software packages each one tailored for a specific test method - DATAMANAGER software package (included) for compression, indirect tensile, 3 points and 4 points flexural tests on different types of specimens - E-MODULE software package (optional code 82-SW/EM) for Elastic modulus and Poisson Ratio determination allowing: * Free unlimited programmable load/stress cycles to fulfil any kind of test procedure * Real time monitoring of test data, stress/time, stress/axial strain, stress/lateral strain graphs * Automatic verification of sample positioning and sensors functionality, as per standards requirements - D-Control software package (optional code 82-SW/DC) for displacement controlled tests allowing: * Automatic calculation of test results accor- ding to EN 14651, 14488-3, 14488-5, UNI 11039-2, ASTM C1550, C1609, C947, UNE 83515 * 8 test pre-set testing procedures according to the above Standards * Customizable test procedure allowing desired loading history * Possibility to change in real time the test parameters: target load/displacement, control variable, test speed. * Data saving rate 250/sec - UTS software package for steel tensile testing (optional code 82-SW/UTS) allowing: * load/stress control * crosshead separation control * simultaneous display of: stress/elongation, stress/time; elongation/time with possibility to display multi-diagrams
50-SW/DC:
D-Control software package for energy absorption, displacement/strain controlled tests.
50-SW/EM:
E-MODULE software package for Elastic modulus and Poisson ratio determination.
50-SW/UTS:
UTS software package for rebars tensile testing.
50-C10D/3F: Third frame facility for AUTOMAX series. Frame selection via display/PC. 50-C20E/4F: Fourth frame facility for AUTOMAX Multitest e and AUOTMAX PRO series. Frame selection via PC.: 50-D0630/24K: 24000 g cap. x 0.1 g resolution, digital balance. Compatible with Link-LAB laboratory connectivity package. 230V/50-60Hz/1ph 50-D1650/200K:
Digital caliper 200 mm x 0.01 mm. Compatible with Link-LAB laboratory connectivity package KLAB/E
50-D1950/K: Barcode reader. Compatible with Link-LAB laboratory connectivity package. 50-KLAB/E:
LinK-LAB Enterprise laboratory connectivity package for machines controlled by PC via DATAMANAGER Software.
50-D1650/K1:
Kit for caliper model 50-D1650/xxK including Bluetooth emitter, USB dongle receiver and 1.5m extension cable.Compatible with machines controlled by PC via DATAMANAGER software.
50-D1650/300K:
Digital caliper 300 mm x 0.01 mm. Compatible with Link-LAB laboratory connectivity package KLAB/E
50-D1650/K2:
Connection cable for digital caliper 50-D1650/xxxK
